Fuse link NHS000/80 UQ2 gR 160A/690V 004721116
Specifications
- ETI Code:
- 004721116
- Description:
- NHS000/80 UQ2 gR 160A/690V
- Class name:
- Fuse link
- efuse:
- 1
- Product group:
- Semiconductor Protection
- Type:
- NH-S
- Size:
- NH000
- Rated current (A):
- 160
- Rated AC voltage (V):
- 690
- Characteristics:
- gR
- Breaking capacity AC (kA):
- 200
- Application:
- For protection of semiconductor devices
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 35,9
- Operating joule integral (A2s):
- 23.000
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895359722
- Net weight of the product
- 120 g
- Customs tariff
- 85361090
- logis_net_width
- 21 mm
- logis_net_height
- 99 mm
- logis_net_depth
- 56 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895350781
- Basic packaging weight
- 0.52 kg
Transport packaging
- Transport packaging quantity
- 54
- EAN code for a transport packaging
- 3838895562375
- Transport packaging weight
- 9.71 kg
- Pallet quantity
- 2808
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH000
- Rated current
- 160
- Rated voltage
- 690
- Voltage type
- AC
- Rated switching capacity
- 200
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No

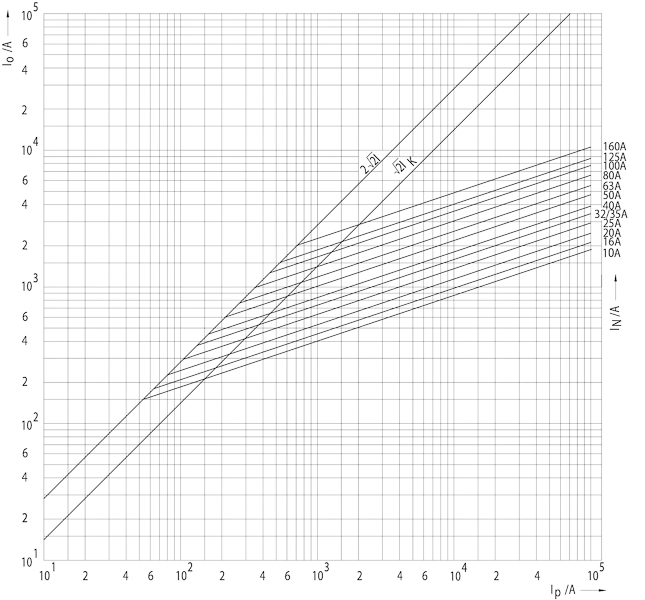

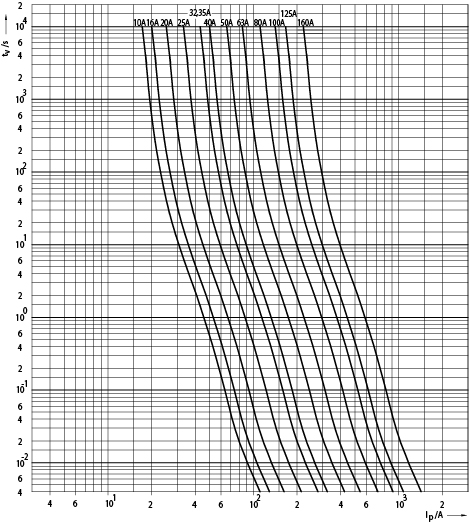

Characteristic

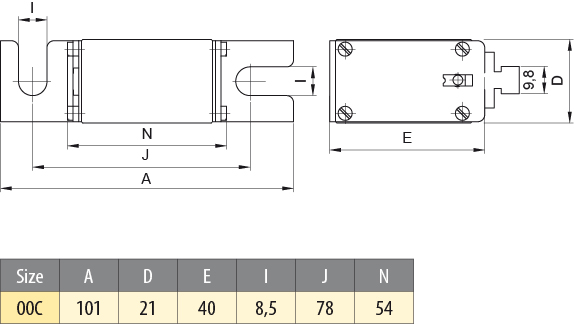

Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
Tags
Accessories 1
>
>
0
NHS000/80 UQ2 gR 160A/690V
