Fuse link NHG1 UQ2 gR 63A/500V 004713512
Specifications
- ETI Code:
- 004713512
- Description:
- NHG1 UQ2 gR 63A/500V
- Class name:
- Fuse link
- efuse:
- 1
- Product group:
- Semiconductor Protection
- Type:
- NH-G
- Size:
- NH1
- Rated current (A):
- 63
- Rated AC voltage (V):
- 500
- Characteristics:
- gR
- Breaking capacity AC (kA):
- 200
- Application:
- For protection of semiconductor devices
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 20
- Operating joule integral (A2s):
- 2.200
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400142504
- Net weight of the product
- 420 g
- Customs tariff
- 85361050
- logis_net_width
- 46 mm
- logis_net_height
- 85 mm
- logis_net_depth
- 50 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895350057
- Basic packaging weight
- 0.46 kg
Transport packaging
- Transport packaging quantity
- 24
- EAN code for a transport packaging
- 3838895561637
- Transport packaging weight
- 11.39 kg
- Pallet quantity
- 1248
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH1
- Rated current
- 63
- Rated voltage
- 500
- Voltage type
- AC
- Rated switching capacity
- 200
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No

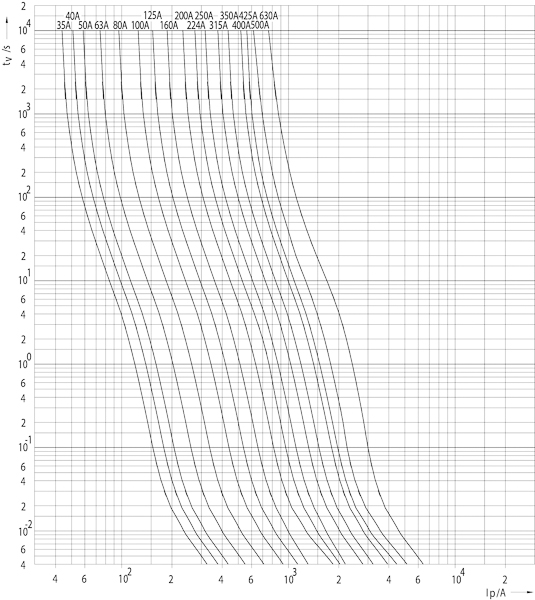

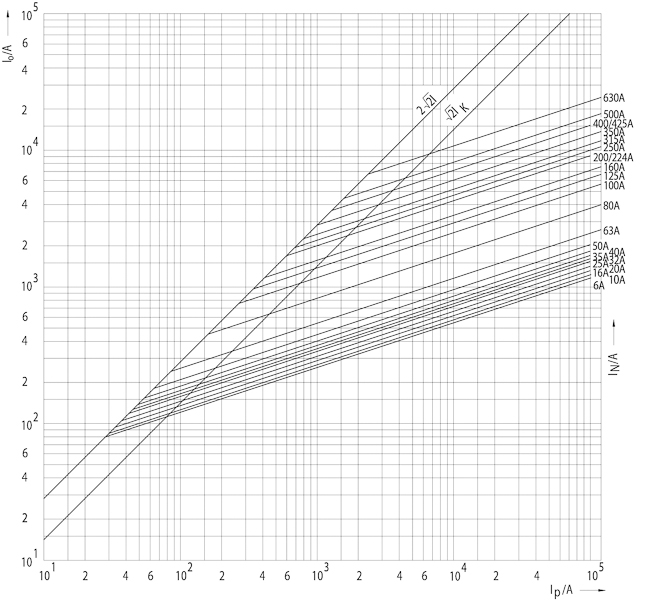

Characteristic

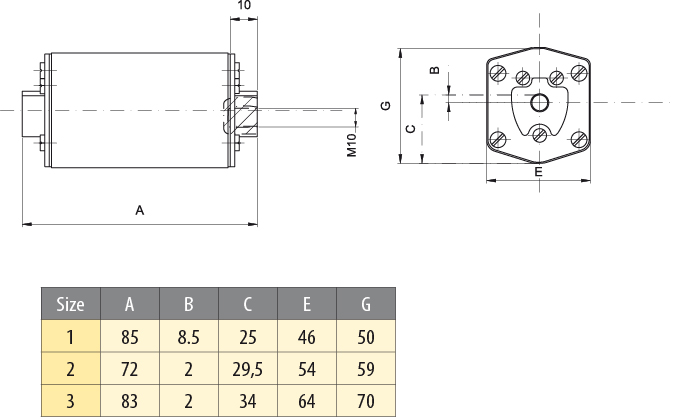

Images & Diagrams
