Fuse link NHS2/80 UQ02 aR 900A/690V 004384131
Specifications
- ETI Code:
- 004384131
- Description:
- NHS2/80 UQ02 aR 900A/690V
- Class name:
- Fuse link
- efuse:
- 1
- Product group:
- Semiconductor Protection
- Type:
- NH-S
- Size:
- NH2
- Rated current (A):
- 900
- Rated AC voltage (V):
- 690
- Characteristics:
- aR
- Breaking capacity AC (kA):
- 200
- Application:
- For protection of semiconductor devices
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 115
- Operating joule integral (A2s):
- 920.000
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- Net weight of the product
- 630 g
- Customs tariff
- 85361090
- logis_net_width
- 60 mm
- logis_net_height
- 108 mm
- logis_net_depth
- 60 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895627128
- Basic packaging weight
- 0.75 kg
Transport packaging
- Transport packaging quantity
- 16
- EAN code for a transport packaging
- 3838895627135
- Transport packaging weight
- 12.35 kg
- Pallet quantity
- 832
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH2
- Rated current
- 900
- Rated voltage
- 690
- Voltage type
- AC
- Rated switching capacity
- 200
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No

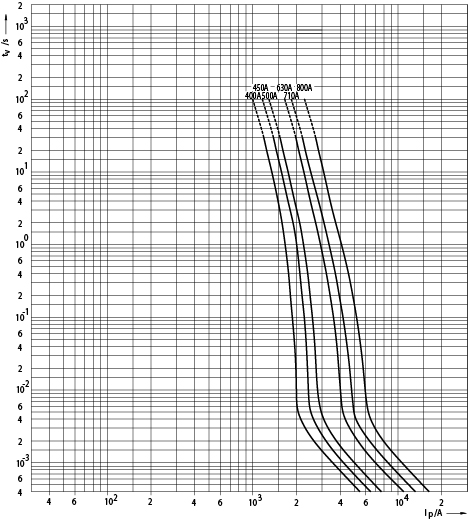

Characteristic

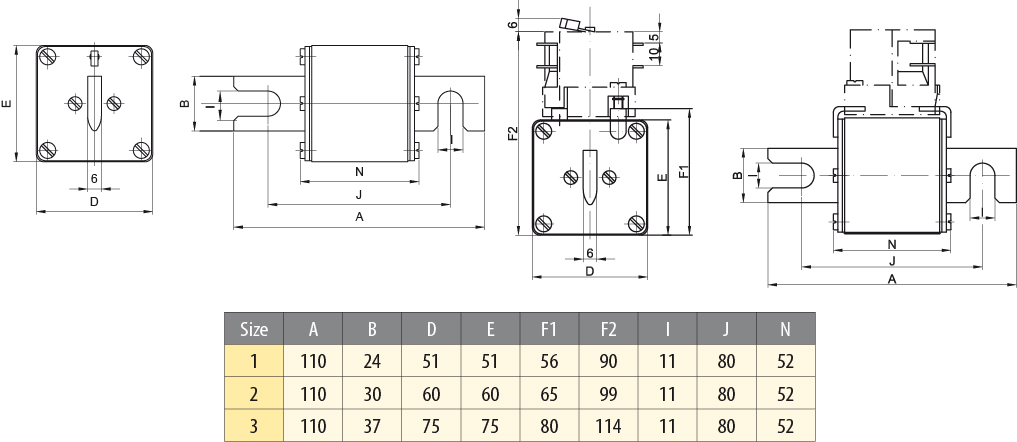

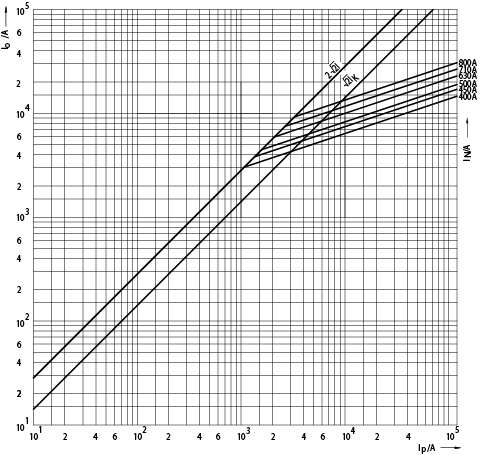

Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
Tags
Accessories 1
>
>
0
NHS2/80 UQ02 aR 900A/690V
