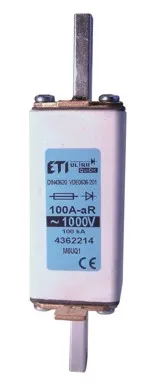

Fuse link NH0 UQ1 aR 100A/1000V 004362214
Specifications
- ETI Code:
- 004362214
- Description:
- NH0 UQ1 aR 100A/1000V
- Class name:
- Fuse link
- efuse:
- 1
- Product group:
- Semiconductor Protection
- Type:
- NH
- Size:
- NH0
- Rated current (A):
- 100
- Rated AC voltage (V):
- 1000
- Characteristics:
- aR
- Breaking capacity AC (kA):
- 200
- Application:
- For protection of semiconductor devices
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 31,5
- Operating joule integral (A2s):
- 8.000
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895358763
- Net weight of the product
- 290 g
- Customs tariff
- 85361090
- logis_net_width
- 29 mm
- logis_net_height
- 124 mm
- logis_net_depth
- 60 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895246770
- Basic packaging weight
- 0.85 kg
Transport packaging
- Transport packaging quantity
- 24
- EAN code for a transport packaging
- 3838895557128
- Transport packaging weight
- 7.15 kg
- Pallet quantity
- 1248
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH0
- Rated current
- 100
- Rated voltage
- 1000
- Voltage type
- AC
- Rated switching capacity
- 200
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
