Fuse link NHS0/97 UQ aR 160A/690V 004332114
Specifications
- ETI Code:
- 004332114
- Description:
- NHS0/97 UQ aR 160A/690V
- Class name:
- Fuse link
- efuse:
- 1
- Product group:
- Semiconductor Protection
- Type:
- NH-S
- Size:
- NH0
- Rated current (A):
- 160
- Rated AC voltage (V):
- 690
- Characteristics:
- aR
- Breaking capacity AC (kA):
- 50
- Breaking capacity DC (kA):
- 25
- Application:
- For protection of semiconductor devices
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 44
- Operating joule integral (A2s):
- 24.000
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895733539
- Net weight of the product
- 230 g
- Customs tariff
- 85361090
- logis_net_width
- 28 mm
- logis_net_height
- 121 mm
- logis_net_depth
- 59 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895009351
- Basic packaging weight
- 0.72 kg
Transport packaging
- Transport packaging quantity
- 45
- EAN code for a transport packaging
- 3838895160229
- Transport packaging weight
- 11.17 kg
- Pallet quantity
- 2340
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH0
- Rated current
- 160
- Rated voltage
- 690
- Voltage type
- AC
- Rated switching capacity
- 50
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
Characteristic

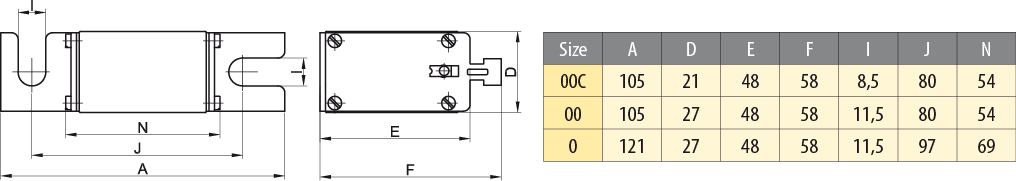

Images & Diagrams
