Fuse link NH3 UQ01 aR 710A/1000V 004305229

Specifications

ETI Code:
004305229
Description:
NH3 UQ01 aR 710A/1000V
Class name:
Fuse link
efuse:
1
Product group:
Semiconductor Protection
Type:
NH
Size:
NH3
Rated current (A):
710
Rated AC voltage (V):
1000
Rated DC voltage (V):
800
Characteristics:
aR
Breaking capacity AC (kA):
200
Application:
For protection of semiconductor devices
Indicator:
Top fuse status indicator
Power dissipation (W):
125
Operating joule integral (A2s):
670.000
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
3838895756866
Net weight of the product
1300  g
Customs tariff
85361090
logis_net_width
73  mm
logis_net_height
150  mm
logis_net_depth
88  mm

Basic packaging

Basic packaging quantity
3
EAN code for a basic packaging
3838895466246
Basic packaging weight
3.775  kg

Transport packaging

Transport packaging quantity
15
EAN code for a transport packaging
3838895713265
Transport packaging weight
19.225  kg
Pallet quantity
15
Classification
EC000055
Class name
Low Voltage HRC fuse
Construction size
NH3
Rated current
710
Rated voltage
1000
Voltage type
AC
Rated switching capacity
200
Type of fuse status indicator
Top fuse status indicator
Insulated metal gripping lugs (IMGL)
No
ETIM Classification – Version 7.0

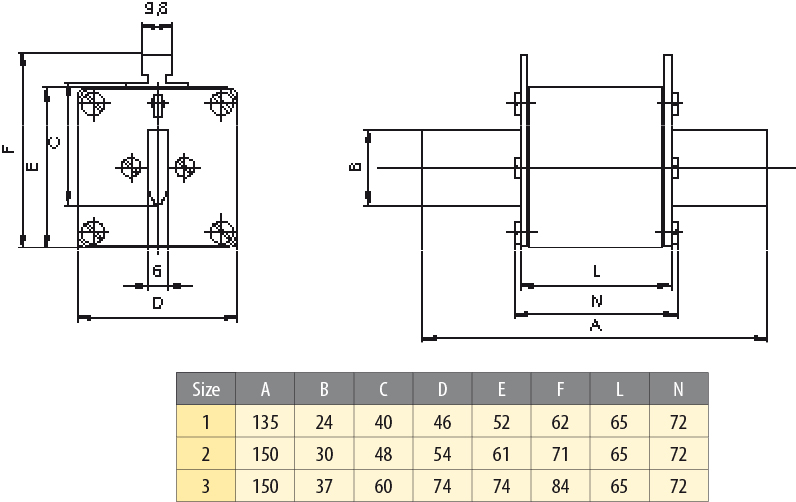

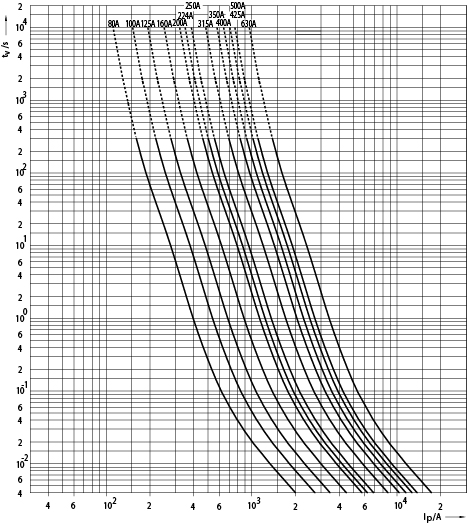

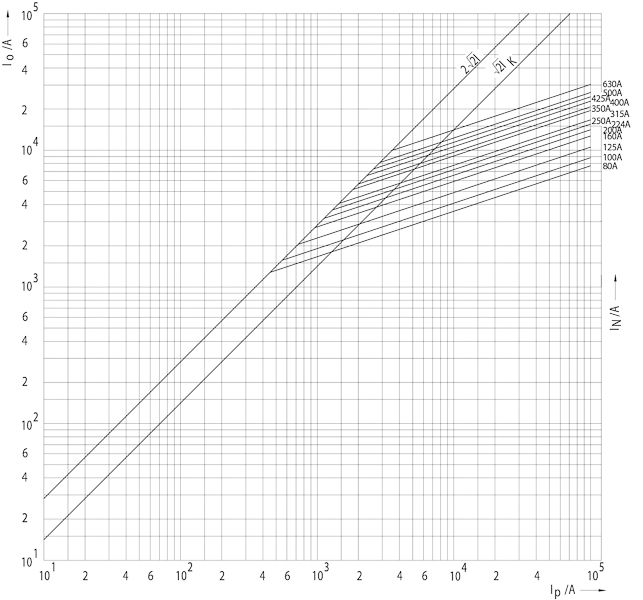

Images & Diagrams
