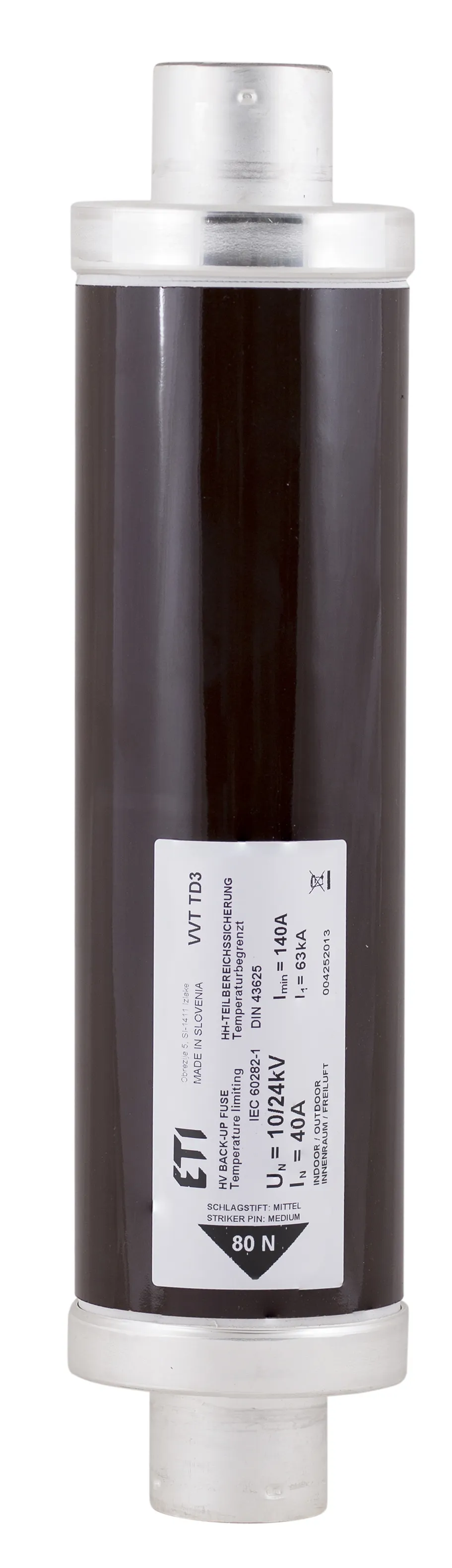

Fuse link VVT-D3 24kV/32A 292 004252112
Specifications
- ETI Code:
- 004252112
- Description:
- VVT-D3 24kV/32A 292
- Class name:
- Fuse link
- efuse:
- 1
- Rated minimum breaking current (A):
- 126
- Cold resistance (mΩ):
- 52
- Rated current (A):
- 32
- Type:
- NEW VVT-D 80N Thermo striker
- Size:
- 292
- Rated AC voltage (V):
- 24000
- Indicator:
- Temperature limiter, 80N striker force
- Breaking capacity AC (kA):
- 31.5
- Application:
- transformer protection, motor protection, capacitor bank protection, installation in ring main unit
- Power dissipation (W):
- 59
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895909996
- Net weight of the product
- 2.78 kg
- Customs tariff
- 85351000
- logis_net_width
- 72 mm
- logis_net_height
- 292 mm
- logis_net_depth
- 72 mm
Transport packaging
- Transport packaging quantity
- 3
- EAN code for a transport packaging
- 3838895910008
- Transport packaging weight
- 8.97 kg
- Pallet quantity
- 108
ETIM Clasification
- Classification
- EC003507
- Class name
- Medium-/high voltage fuse
- Construction size
- 292
- Max. rated operation voltage Ue AC
- 24000
- Type of fuse status indicator
- Temperature limiter, 80N striker force
- Rated current
- 32A
- Rated voltage
- 24kV
- Voltage type
- AC
- Rated frequency
- 45…60Hz
- Breaking capacity
- 31.5kA
- Utilization category
- Other
- Application
- Other
- Length
- 292mm
- Diameter
- 68mm
- Performance category according to IEC 60282-1
- Back-up
- With striker
- Yes
- Standard
- IEC
- Installation technique
- Air
