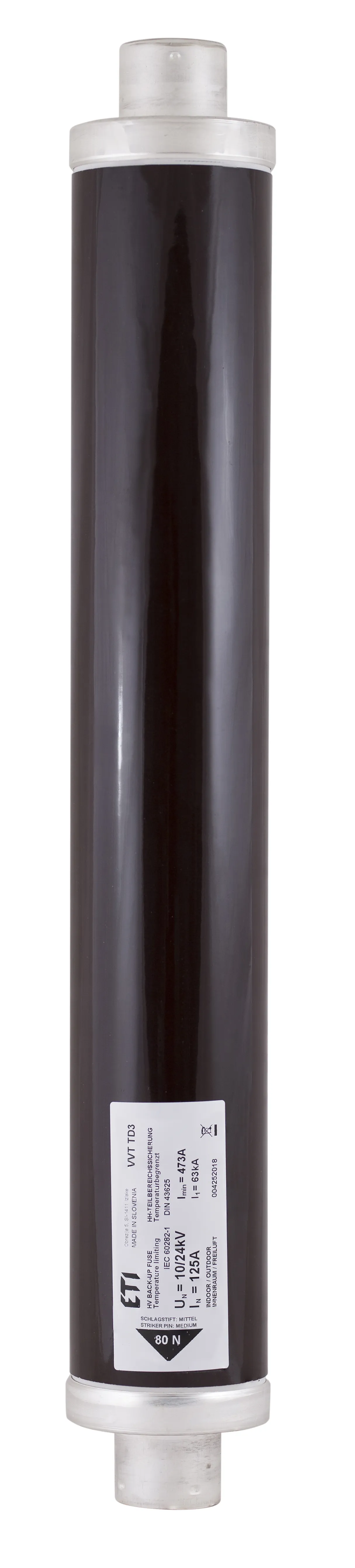

Fuse link VVC3 24kV/16A 537 004250508
Specifications
- ETI Code:
- 004250508
- Description:
- VVC3 24kV/16A 537
- Class name:
- Fuse link
- efuse:
- 1
- Rated minimum breaking current (A):
- 56
- Cold resistance (mΩ):
- 125
- Rated current (A):
- 16
- Type:
- NEW VVC 50N striker
- Size:
- 537
- Rated AC voltage (V):
- 24000
- Indicator:
- 50N striker force
- Breaking capacity AC (kA):
- 63
- Application:
- transformer protection, motor protection, capacitor bank protection, installation in ring main unit
- Power dissipation (W):
- 42
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895918653
- Net weight of the product
- 2.85 kg
- Customs tariff
- 85351000
- logis_net_width
- 56 mm
- logis_net_height
- 537 mm
- logis_net_depth
- 56 mm
Transport packaging
- Transport packaging quantity
- 3
- EAN code for a transport packaging
- 3838895918660
- Transport packaging weight
- 9.29 kg
- Pallet quantity
- 108
ETIM Clasification
- Classification
- EC003507
- Class name
- Medium-/high voltage fuse
- Construction size
- 537
- Max. rated operation voltage Ue AC
- 24000
- Type of fuse status indicator
- 50N striker force
- Rated current
- 16A
- Rated voltage
- 24kV
- Voltage type
- AC
- Rated frequency
- 45…60Hz
- Breaking capacity
- 63kA
- Utilization category
- Other
- Application
- Other
- Length
- 537mm
- Diameter
- 53mm
- Performance category according to IEC 60282-1
- Back-up
- With striker
- Yes
- Standard
- IEC
- Installation technique
- Air
