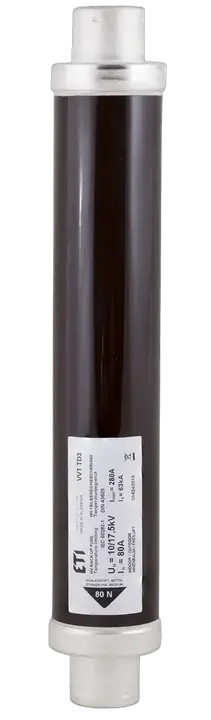

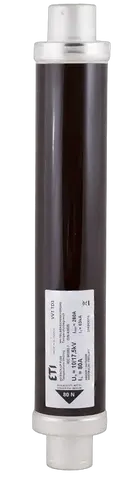

Fuse link VVA3 17,5kV/80A 004241116
Specifications
- ETI Code:
- 004241116
- Description:
- VVA3 17,5kV/80A
- Class name:
- Fuse link
- efuse:
- 1
- Rated minimum breaking current (A):
- 280
- Cold resistance (mΩ):
- 12.5
- Rated current (A):
- 80
- Type:
- NEW VVA without striker
- Size:
- 367
- Rated AC voltage (V):
- 17500
- Indicator:
- Without
- Breaking capacity AC (kA):
- 63
- Application:
- transformer protection, motor protection, capacitor bank protection, installation in ring main unit
- Power dissipation (W):
- 130
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895912590
- Net weight of the product
- 3.3 kg
- Customs tariff
- 85351000
- logis_net_width
- 72 mm
- logis_net_height
- 367 mm
- logis_net_depth
- 72 mm
Transport packaging
- Transport packaging quantity
- 3
- EAN code for a transport packaging
- 3838895912606
- Transport packaging weight
- 10.6 kg
- Pallet quantity
- 72
ETIM Clasification
- Classification
- EC003507
- Class name
- Medium-/high voltage fuse
- Construction size
- 367
- Max. rated operation voltage Ue AC
- 17500
- Type of fuse status indicator
- Without
- Rated current
- 80A
- Rated voltage
- 17,5kV
- Voltage type
- AC
- Rated frequency
- 45…60Hz
- Breaking capacity
- 63kA
- Utilization category
- Other
- Application
- Other
- Length
- 367mm
- Diameter
- 68mm
- Performance category according to IEC 60282-1
- Back-up
- With striker
- No
- Standard
- IEC
- Installation technique
- Air
