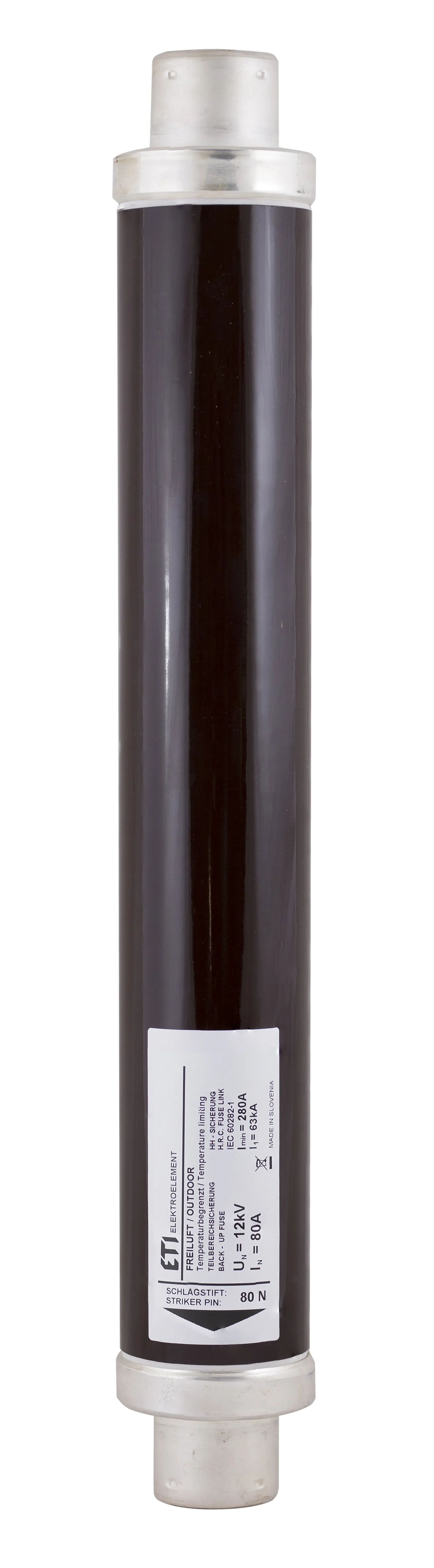

Fuse link VVC3 12kV/100A 442 004230517
Specifications
- ETI Code:
- 004230517
- Description:
- VVC3 12kV/100A 442
- Class name:
- Fuse link
- efuse:
- 1
- Rated minimum breaking current (A):
- 360
- Cold resistance (mΩ):
- 6.7
- Rated current (A):
- 100
- Type:
- NEW VVC 50N striker
- Size:
- 442
- Rated AC voltage (V):
- 12000
- Indicator:
- 50N striker force
- Breaking capacity AC (kA):
- 63
- Application:
- transformer protection, motor protection, capacitor bank protection, installation in ring main unit
- Power dissipation (W):
- 105
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895916420
- Net weight of the product
- 4 kg
- Customs tariff
- 85351000
- logis_net_width
- 72 mm
- logis_net_height
- 442 mm
- logis_net_depth
- 72 mm
Transport packaging
- Transport packaging quantity
- 3
- EAN code for a transport packaging
- 3838895916437
- Transport packaging weight
- 12.47 kg
- Pallet quantity
- 90
ETIM Clasification
- Classification
- EC003507
- Class name
- Medium-/high voltage fuse
- Construction size
- 442
- Max. rated operation voltage Ue AC
- 12000
- Type of fuse status indicator
- 50N striker force
- Rated current
- 100A
- Rated voltage
- 12kV
- Voltage type
- AC
- Rated frequency
- 45…60Hz
- Breaking capacity
- 63kA
- Utilization category
- Other
- Application
- Other
- Length
- 442mm
- Diameter
- 68mm
- Performance category according to IEC 60282-1
- Back-up
- With striker
- Yes
- Standard
- IEC
- Installation technique
- Air
