Fuse link VVT-D3 7,2kV/100A 292 004222517
Specifications
- ETI Code:
- 004222517
- Description:
- VVT-D3 7,2kV/100A 292
- Class name:
- Fuse link
- efuse:
- 1
- Rated minimum breaking current (A):
- 360
- Cold resistance (mΩ):
- 4.8
- Rated current (A):
- 100
- Type:
- NEW VVT-D 80N Thermo striker
- Size:
- 292
- Rated AC voltage (V):
- 7200
- Indicator:
- Temperature limiter, 80N striker force
- Breaking capacity AC (kA):
- 63
- Application:
- transformer protection, motor protection, capacitor bank protection, installation in ring main unit
- Power dissipation (W):
- 73
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895907916
- Net weight of the product
- 2.78 kg
- Customs tariff
- 85351000
- logis_net_width
- 72 mm
- logis_net_height
- 292 mm
- logis_net_depth
- 72 mm
Transport packaging
- Transport packaging quantity
- 3
- EAN code for a transport packaging
- 3838895907923
- Transport packaging weight
- 8.96 kg
- Pallet quantity
- 126
ETIM Clasification
- Classification
- EC003507
- Class name
- Medium-/high voltage fuse
- Type of fuse status indicator
- Temperature limiter, 80N striker force
- Construction size
- 292
- Max. rated operation voltage Ue AC
- 7200
- Rated current
- 100A
- Rated voltage
- 7,2kV
- Voltage type
- AC
- Rated frequency
- 45…60Hz
- Breaking capacity
- 63kA
- Utilization category
- Other
- Application
- Other
- Length
- 292mm
- Diameter
- 68mm
- Performance category according to IEC 60282-1
- Back-up
- With striker
- Yes
- Standard
- IEC
- Installation technique
- Air
Characteristic
Images & Diagrams
Software & drivers
Configurator
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.

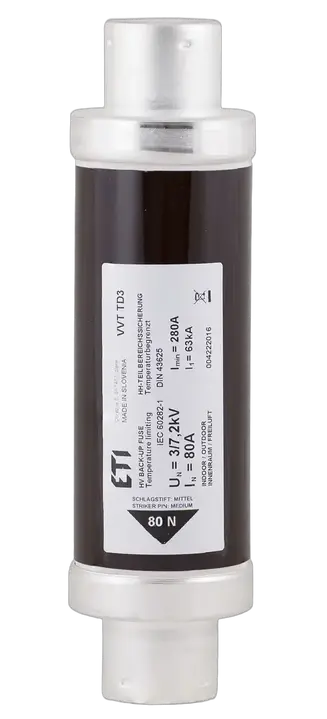

VVT-D3 7,2kV/100A 292
