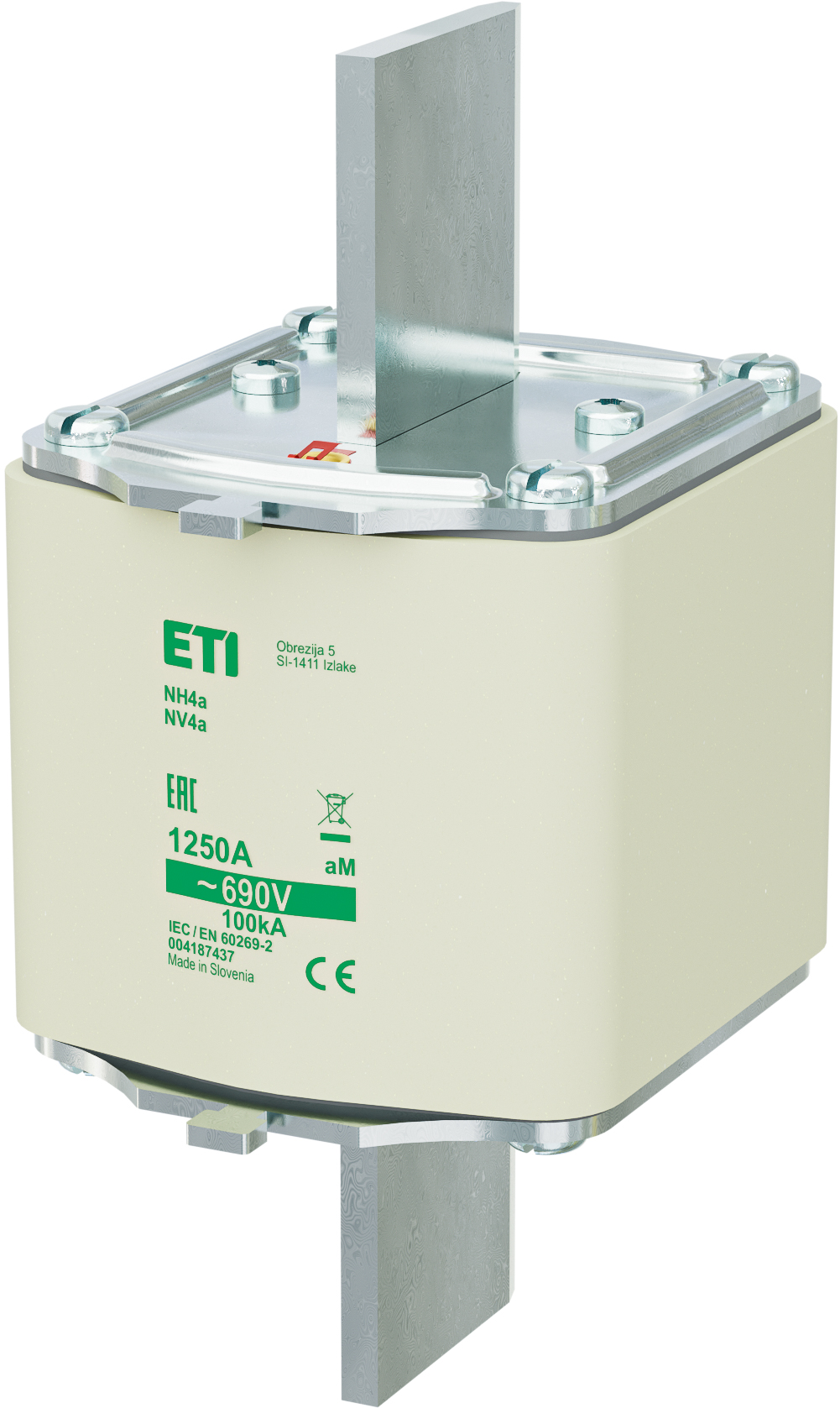

Fuse link NH4a aM 1250A/690V 004187437
Specifications
- ETI Code:
- 004187437
- Description:
- NH4a aM 1250A/690V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- NH4a
- Rated current (A):
- 1250
- Rated AC voltage (V):
- 690
- Characteristics:
- aM
- Breaking capacity AC (kA):
- 100
- Application:
- For relays, contactors and motors protection in case of short-circuit
- Indicator:
- Top fuse status indicator
- Standards:
- VDE 0636-2011
Documents
Logistic Data
Product
- Net weight of the product
- 2810 g
- Customs tariff
- 85361090
- logis_net_width
- 95 mm
- logis_net_height
- 200 mm
- logis_net_depth
- 121 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895392170
- Basic packaging weight
- 2.32 kg
Transport packaging
- Transport packaging quantity
- 4
- EAN code for a transport packaging
- 3838895715634
- Transport packaging weight
- 9.6 kg
- Pallet quantity
- 160
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH4a
- Rated current
- 1250
- Rated voltage
- 690
- Voltage type
- AC
- Rated switching capacity
- 100
- Utilization category
- aM (switchgear protection)
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
