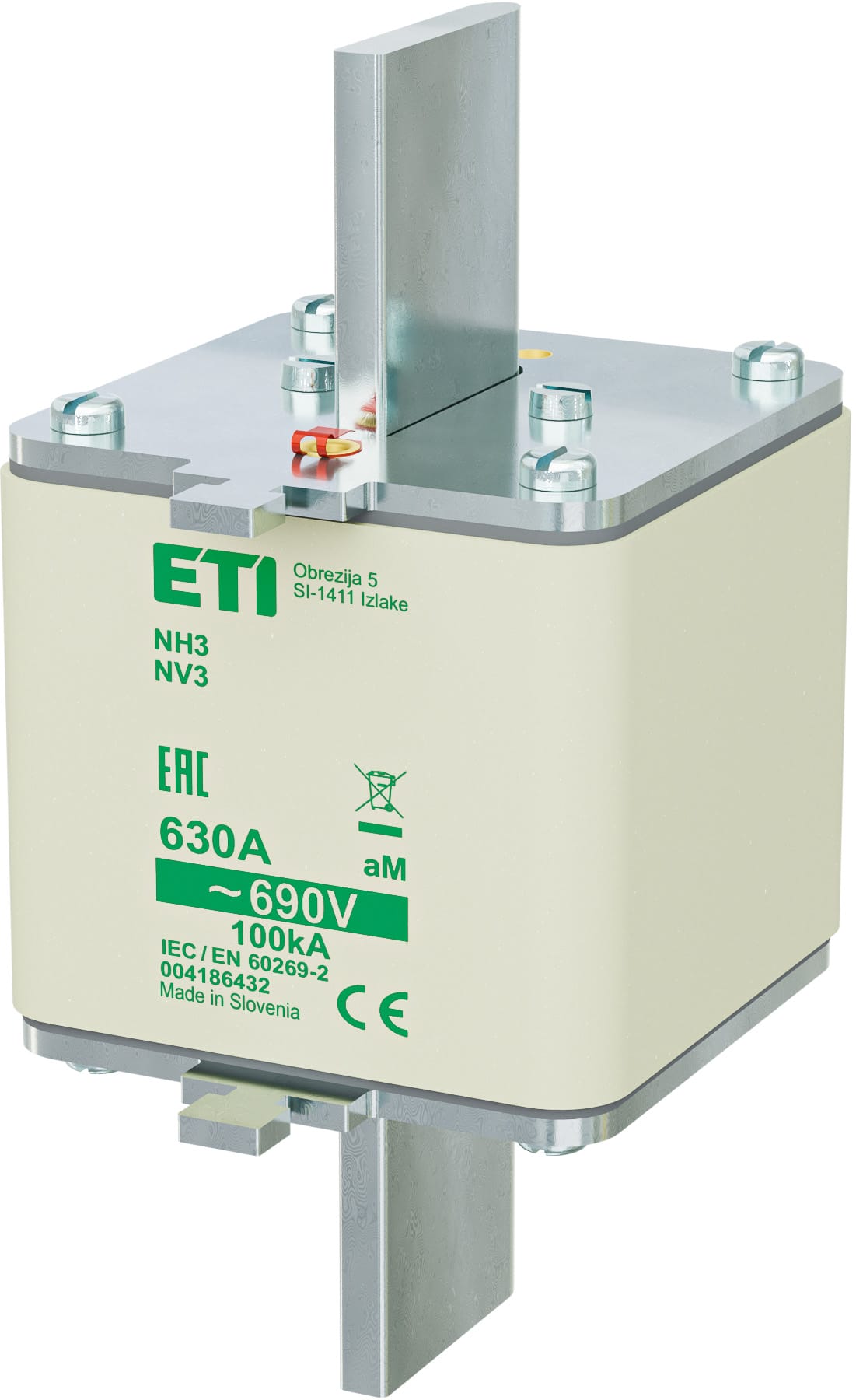

Fuse link NH3 aM 630A/690V 004186432
Specifications
- ETI Code:
- 004186432
- Description:
- NH3 aM 630A/690V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- NH3
- Rated current (A):
- 630
- Rated AC voltage (V):
- 690
- Characteristics:
- aM
- Breaking capacity AC (kA):
- 100
- Application:
- For relays, contactors and motors protection in case of short-circuit
- Indicator:
- Top fuse status indicator
- Standards:
- VDE 0636-2011
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400119803
- Net weight of the product
- 1300 g
- Customs tariff
- 85361090
- logis_net_width
- 74 mm
- logis_net_height
- 152 mm
- logis_net_depth
- 88 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895809609
- Basic packaging weight
- 4.05 kg
Transport packaging
- Transport packaging quantity
- 15
- EAN code for a transport packaging
- 3838895809616
- Transport packaging weight
- 20.6 kg
- Pallet quantity
- 360
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Application
- For relays, contactors and motors protection in case of short-circuit
- Breaking capacity
- 100
- Max. rated operation voltage Ue AC
- 690
- Construction size
- NH3
- Rated current
- 630
- Rated voltage
- 690
- Voltage type
- AC
- Rated switching capacity
- 100
- Utilization category
- AM
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
Characteristic
