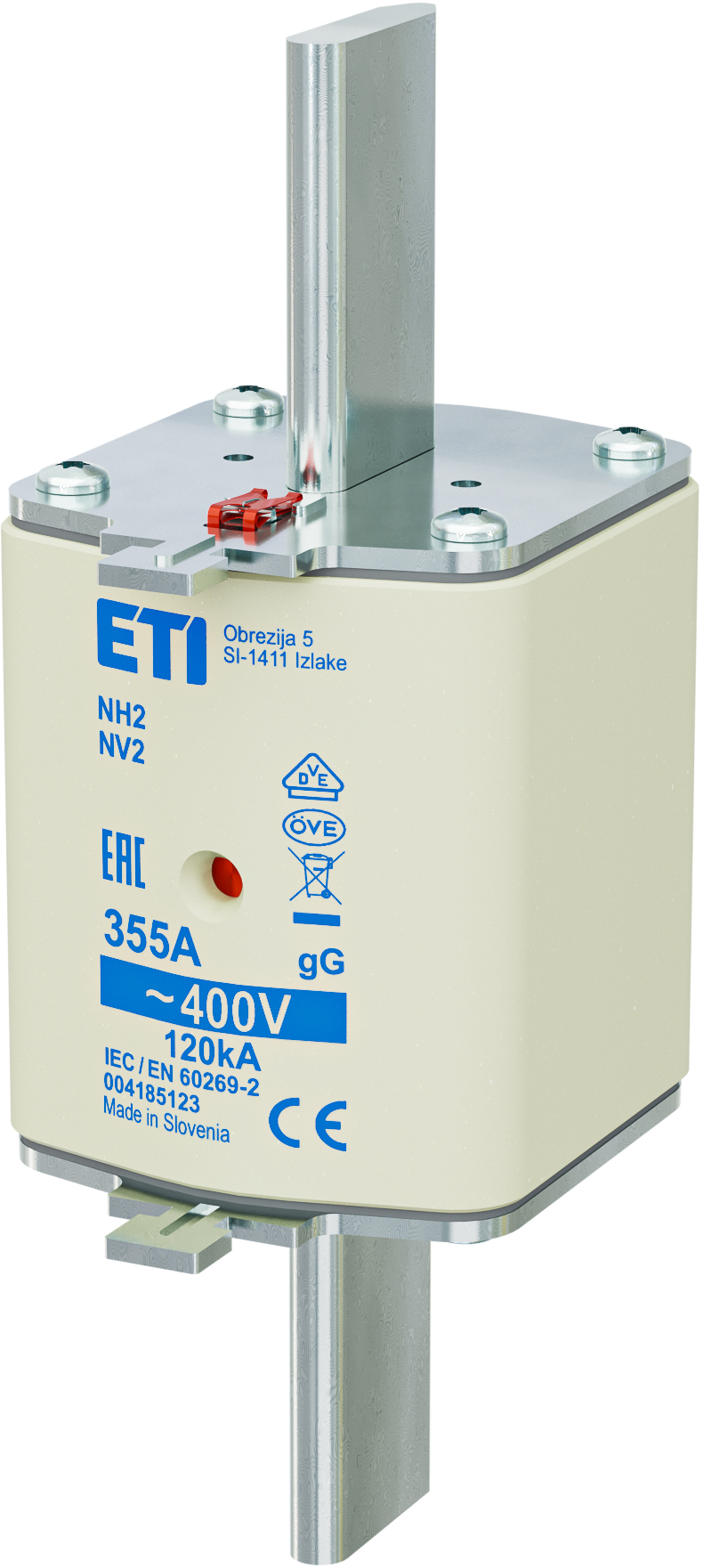

Fuse link NH2 gG 355A/400V 004185123

Specifications

ETI Code:
004185123
Description:
NH2 gG 355A/400V
Class name:
Fuse link
efuse:
1
Type:
NH
Size:
NH2
Rated current (A):
355
Rated AC voltage (V):
400
Characteristics:
gG
Breaking capacity AC (kA):
120
Application:
For cable protection
Indicator:
Combination fuse status indicator
Power dissipation (W):
22,5
Operating joule integral (A2s):
1.385.000
Prearcing joule integral (A2s):
358.000
Standards:
IEC 60269-1, IEC 60269-2

Documents

Product

EAN code for a single product
3838400035448
Net weight of the product
580  g
Customs tariff
85361090
logis_net_width
54  mm
logis_net_height
150  mm
logis_net_depth
73  mm

Basic packaging

Basic packaging quantity
3
EAN code for a basic packaging
3838895330806
Basic packaging weight
1.55  kg

Transport packaging

Transport packaging quantity
15
EAN code for a transport packaging
3838895330813
Transport packaging weight
8.5  kg
Pallet quantity
780
Classification
EC000055
Class name
Low Voltage HRC fuse
Construction size
NH2
Rated current
355
Rated voltage
400
Voltage type
AC
Rated switching capacity
120
Utilization category
gL/gG (cable protection/equipment protection)
Type of fuse status indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
No
ETIM Classification – Version 7.0
