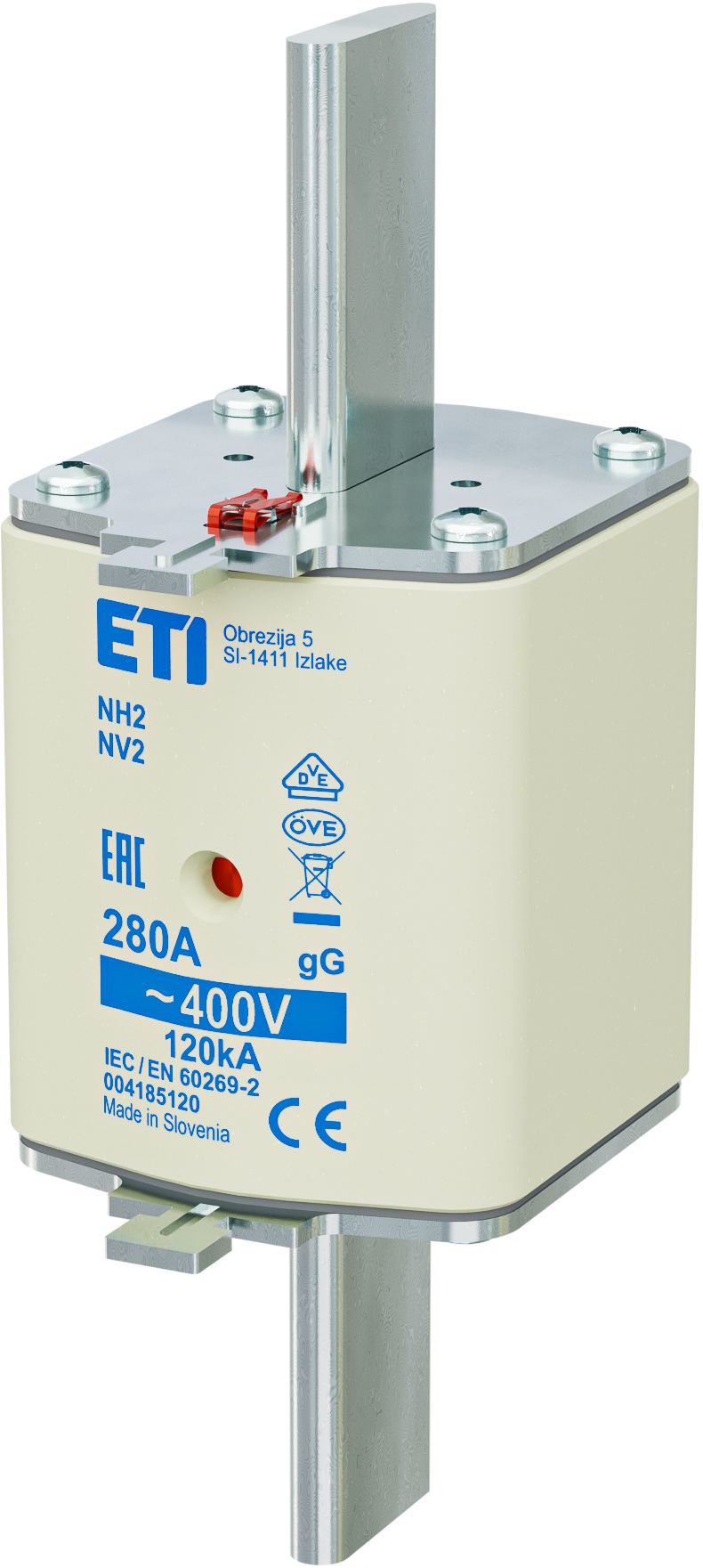

Fuse link NH2 gG 280A/400V 004185120
Specifications
- ETI Code:
- 004185120
- Description:
- NH2 gG 280A/400V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- NH2
- Rated current (A):
- 280
- Rated AC voltage (V):
- 400
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 120
- Application:
- For cable protection
- Indicator:
- Combination fuse status indicator
- Power dissipation (W):
- 20
- Operating joule integral (A2s):
- 818.900
- Prearcing joule integral (A2s):
- 123.000
- Standards:
- IEC 60269-1, IEC 60269-2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400035400
- Net weight of the product
- 580 g
- Customs tariff
- 85361090
- logis_net_width
- 54 mm
- logis_net_height
- 150 mm
- logis_net_depth
- 73 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895330608
- Basic packaging weight
- 1.55 kg
Transport packaging
- Transport packaging quantity
- 15
- EAN code for a transport packaging
- 3838895330615
- Transport packaging weight
- 8.5 kg
- Pallet quantity
- 780
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH2
- Rated current
- 280
- Rated voltage
- 400
- Voltage type
- AC
- Rated switching capacity
- 120
- Utilization category
- gL/gG (cable protection/equipment protection)
- Type of fuse status indicator
- Combination fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
