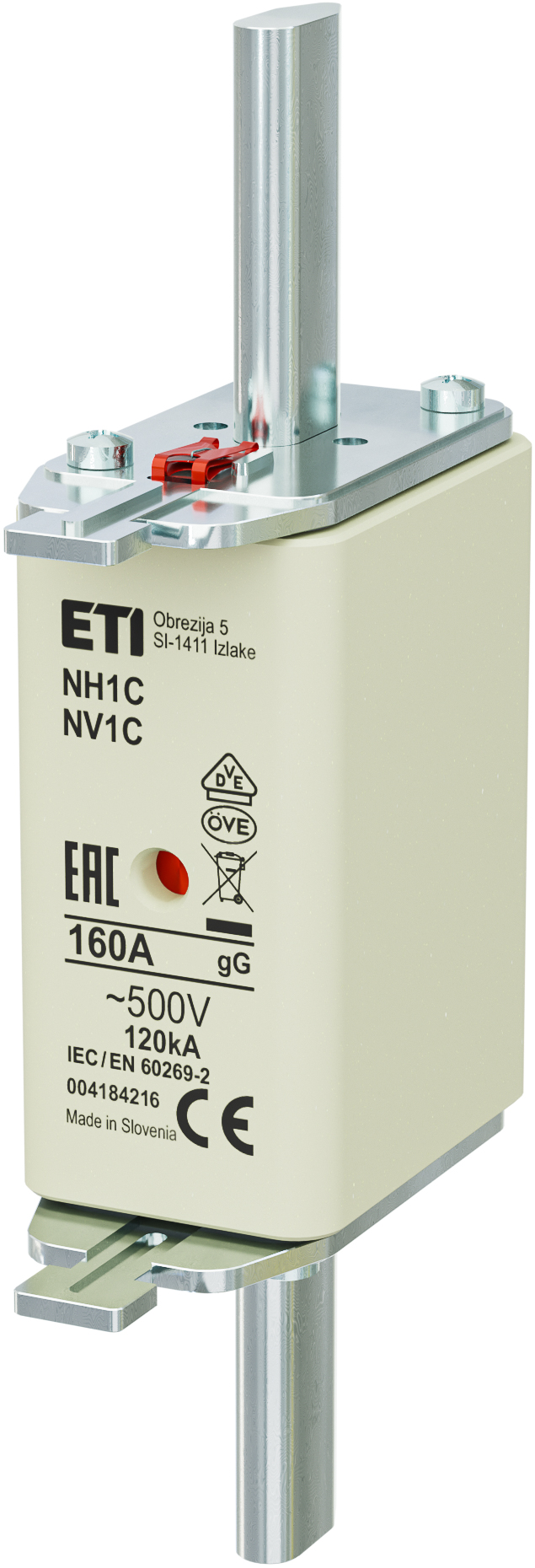

Fuse link NH1C gG 160A/500V 004184216

Specifications

ETI Code:
004184216
Description:
NH1C gG 160A/500V
Class name:
Fuse link
efuse:
1
Type:
NH
Size:
NH1C
Rated current (A):
160
Rated AC voltage (V):
500
Rated DC voltage (V):
250
Characteristics:
gG
Breaking capacity AC (kA):
120
Application:
For cable protection
Indicator:
Combination fuse status indicator
Power dissipation (W):
12,9
Operating joule integral (A2s):
295.000
Prearcing joule integral (A2s):
72.900
Standards:
IEC 60269-1, IEC 60269-2

Documents

Product

EAN code for a single product
3838895354147
Net weight of the product
245  g
Customs tariff
85361090
logis_net_width
30  mm
logis_net_height
135  mm
logis_net_depth
62  mm

Basic packaging

Basic packaging quantity
3
EAN code for a basic packaging
3838895342496
Basic packaging weight
0.7  kg

Transport packaging

Transport packaging quantity
45
EAN code for a transport packaging
3838895342502
Transport packaging weight
11  kg
Pallet quantity
2340
Classification
EC000055
Class name
Low Voltage HRC fuse
Construction size
NH1C
Rated current
160
Rated voltage
500
Voltage type
AC
Rated switching capacity
120
Utilization category
gL/gG (cable protection/equipment protection)
Type of fuse status indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
No
ETIM Classification – Version 7.0

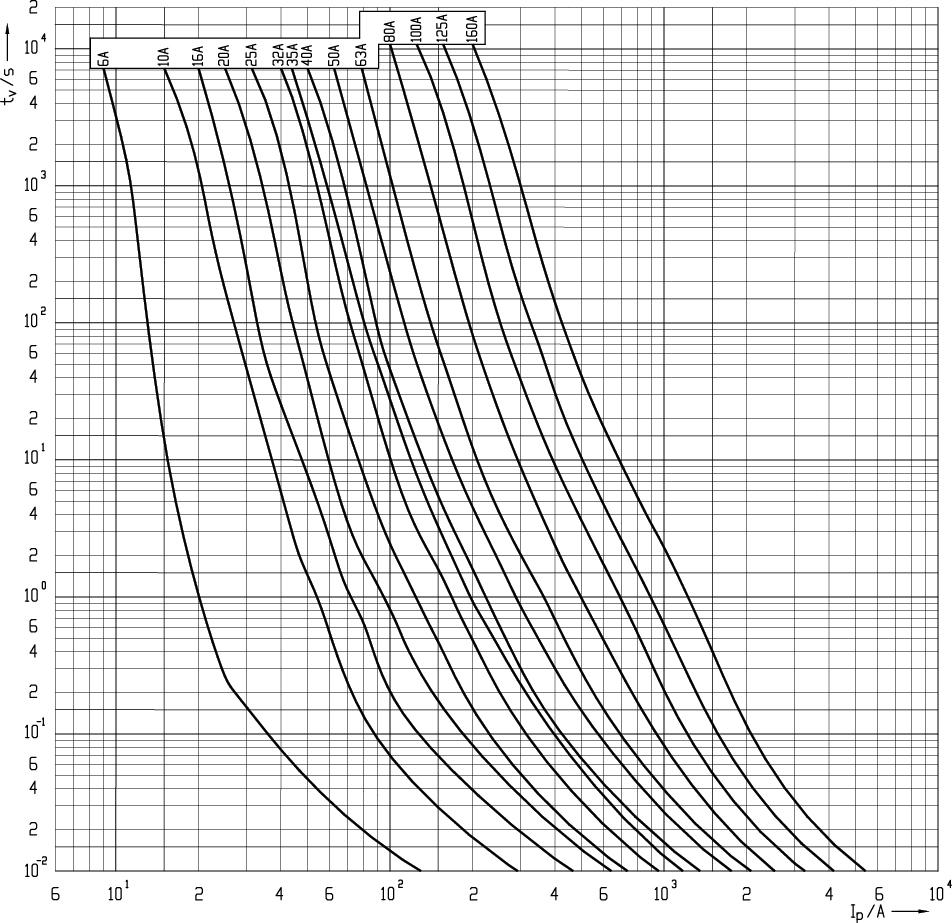

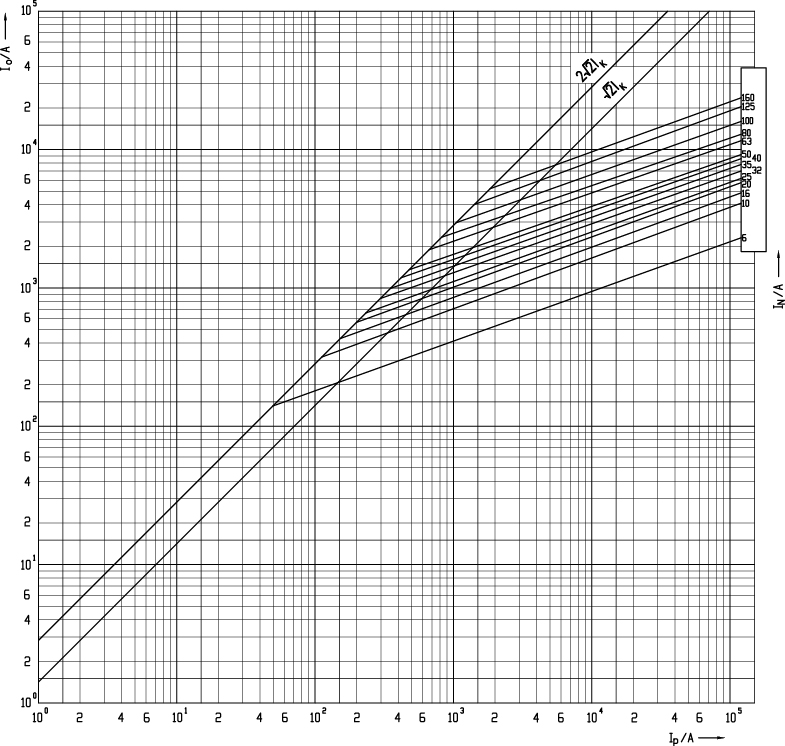

Images & Diagrams
