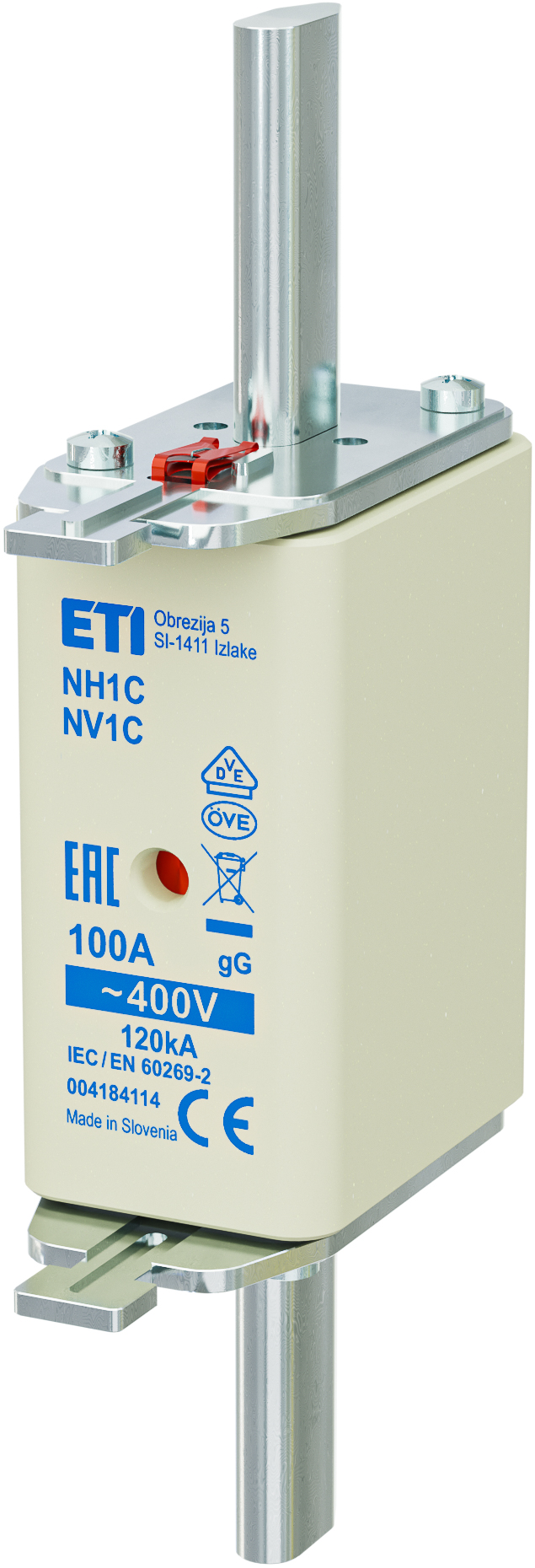

Fuse link NH1C gG 100A/400V 004184114
Specifications
- ETI Code:
- 004184114
- Description:
- NH1C gG 100A/400V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- NH1C
- Rated current (A):
- 100
- Rated AC voltage (V):
- 400
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 120
- Application:
- For cable protection
- Indicator:
- Combination fuse status indicator
- Power dissipation (W):
- 7,3
- Operating joule integral (A2s):
- 63.500
- Prearcing joule integral (A2s):
- 23.900
- Standards:
- IEC 60269-1, IEC 60269-2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400033895
- Net weight of the product
- 0.233 kg
- Customs tariff
- 85361090
- logis_net_width
- 30 mm
- logis_net_height
- 135 mm
- logis_net_depth
- 62 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895409281
- Basic packaging weight
- 0.7 kg
Transport packaging
- Transport packaging quantity
- 45
- EAN code for a transport packaging
- 3838895409298
- Transport packaging weight
- 11 kg
- Pallet quantity
- 2340
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH1C
- Rated current
- 100
- Rated voltage
- 400
- Voltage type
- AC
- Rated switching capacity
- 120
- Utilization category
- gL/gG (cable protection/equipment protection)
- Type of fuse status indicator
- Combination fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
