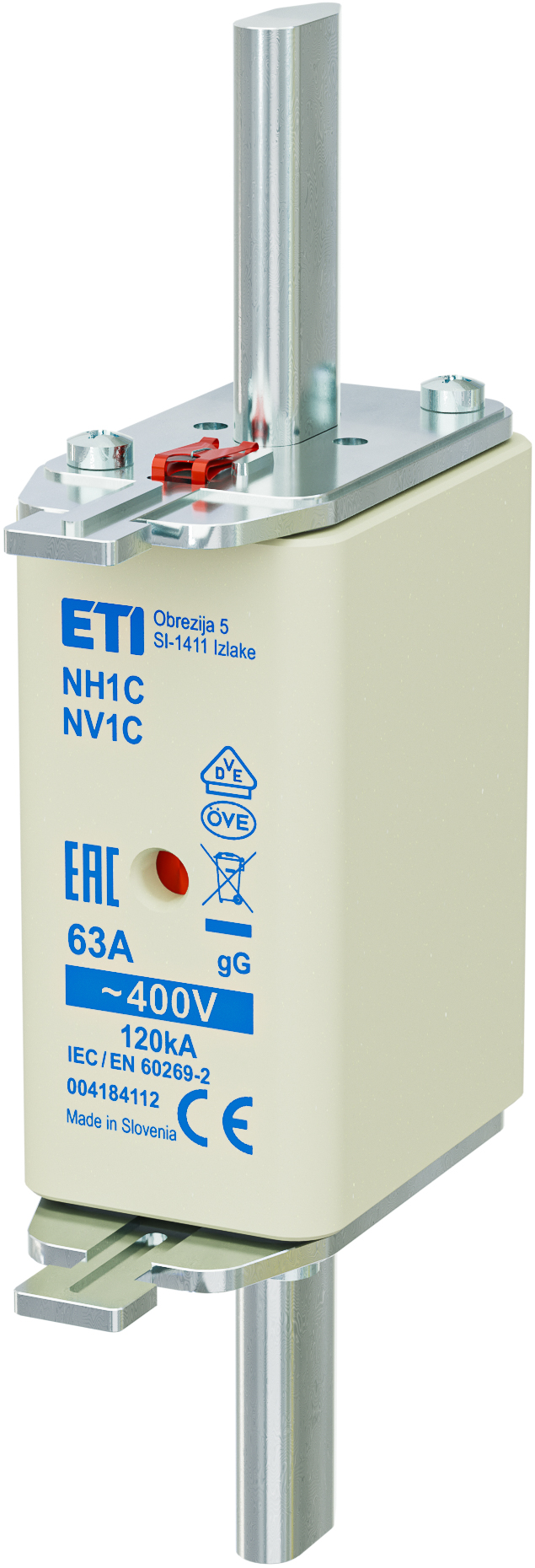

Fuse link NH1C gG 63A/400V 004184112
Specifications
- ETI Code:
- 004184112
- Description:
- NH1C gG 63A/400V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- NH1C
- Rated current (A):
- 63
- Rated AC voltage (V):
- 400
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 120
- Application:
- For cable protection
- Indicator:
- Combination fuse status indicator
- Power dissipation (W):
- 6,5
- Operating joule integral (A2s):
- 21.700
- Prearcing joule integral (A2s):
- 4.600
- Standards:
- IEC 60269-1, IEC 60269-2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400033871
- Net weight of the product
- 245 g
- Customs tariff
- 85361050
- logis_net_width
- 30 mm
- logis_net_height
- 135 mm
- logis_net_depth
- 62 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895409243
- Basic packaging weight
- 0.7 kg
Transport packaging
- Transport packaging quantity
- 45
- EAN code for a transport packaging
- 3838895409250
- Transport packaging weight
- 11 kg
- Pallet quantity
- 2340
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Breaking capacity
- 120
- Max. rated operation voltage Ue AC
- 400
- Application
- For cable protection
- Construction size
- NH1C
- Rated current
- 63
- Rated voltage
- 400
- Voltage type
- AC
- Rated switching capacity
- 120
- Type of fuse status indicator
- Combination fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
Characteristic
