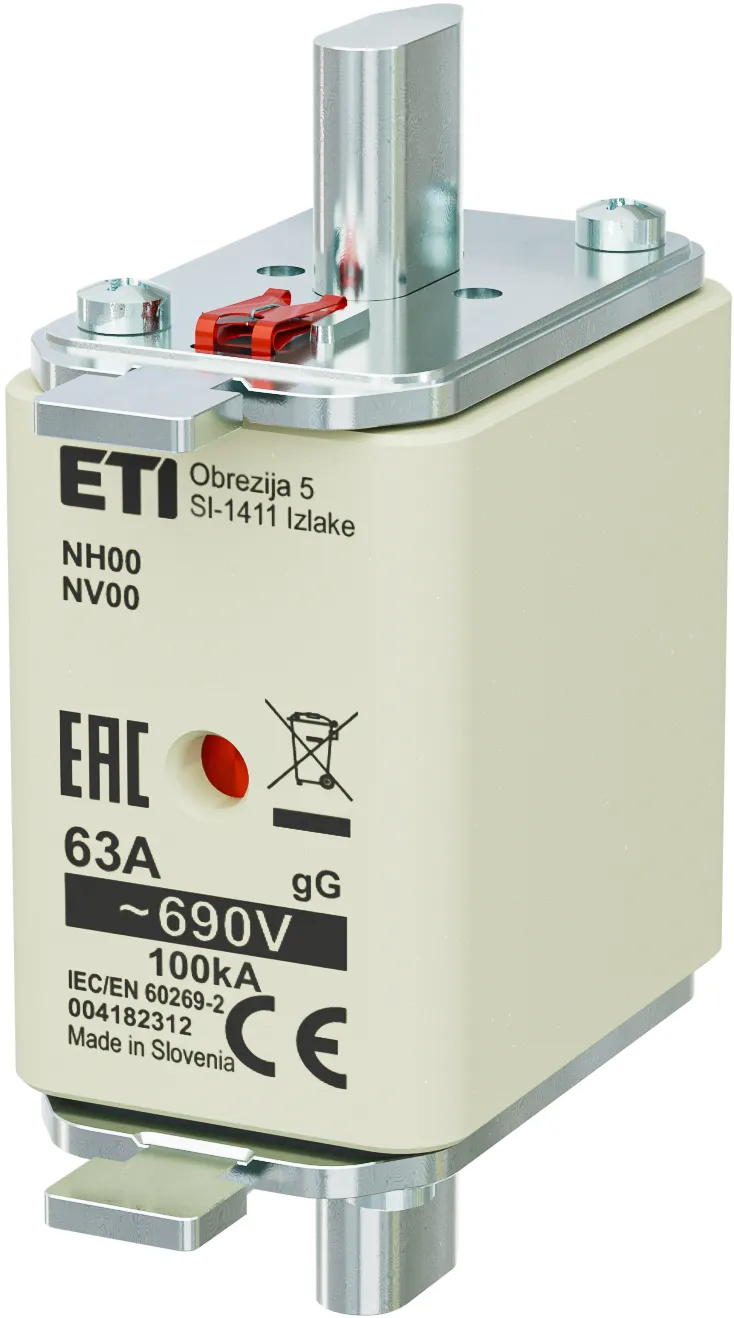

Fuse link NH00 gG 63A/690V 004182312
Specifications
- ETI Code:
- 004182312
- Description:
- NH00 gG 63A/690V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- NH00
- Rated current (A):
- 63
- Rated AC voltage (V):
- 690
- Rated DC voltage (V):
- 250
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 100
- Application:
- For cable protection
- Indicator:
- Combination fuse status indicator
- Standards:
- IEC 60269-1, IEC 60269-2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895906810
- Net weight of the product
- 170 g
- Customs tariff
- 85361050
- logis_net_width
- 30 mm
- logis_net_height
- 79 mm
- logis_net_depth
- 56 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895352433
- Basic packaging weight
- 0.47 kg
Transport packaging
- Transport packaging quantity
- 90
- EAN code for a transport packaging
- 3838895352440
- Transport packaging weight
- 15.05 kg
- Pallet quantity
- 5850
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH00
- Rated current
- 63
- Rated voltage
- 690
- Voltage type
- AC
- Rated switching capacity
- 100
- Utilization category
- gL/gG (cable protection/equipment protection)
- Type of fuse status indicator
- Combination fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
