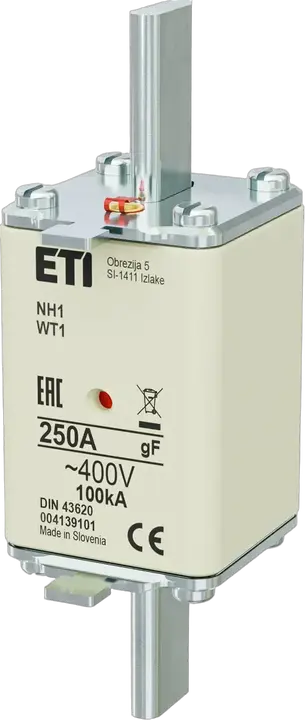

Fuse link NH1 gF 250A/400V 004139101
Specifications
- ETI Code:
- 004139101
- Description:
- NH1 gF 250A/400V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- NH1
- Rated current (A):
- 250
- Rated AC voltage (V):
- 400
- Characteristics:
- gF
- Breaking capacity AC (kA):
- 100
- Application:
- For cable protection
- Indicator:
- Combination fuse status indicator
- Standards:
- PN-IEC 60269-2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400038081
- Net weight of the product
- 420 g
- Customs tariff
- 85361090
- logis_net_width
- 45 mm
- logis_net_height
- 137 mm
- logis_net_depth
- 59 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895188162
- Basic packaging weight
- 1.2 kg
Transport packaging
- Transport packaging quantity
- 24
- EAN code for a transport packaging
- 3838895188179
- Transport packaging weight
- 10.2 kg
- Pallet quantity
- 1248
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH1
- Rated current
- 250
- Rated voltage
- 400
- Voltage type
- AC
- Rated switching capacity
- 100
- Utilization category
- Other
- Type of fuse status indicator
- Combination fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
Characteristic
