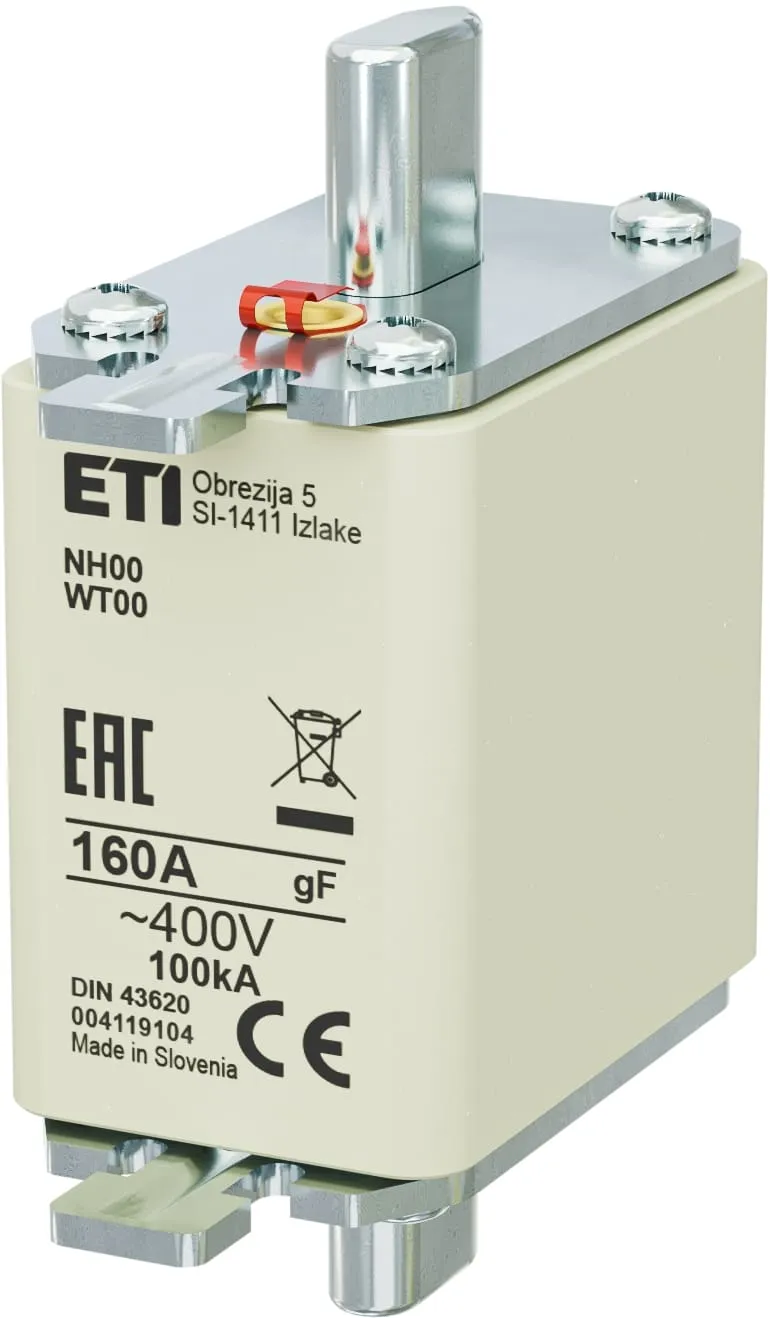

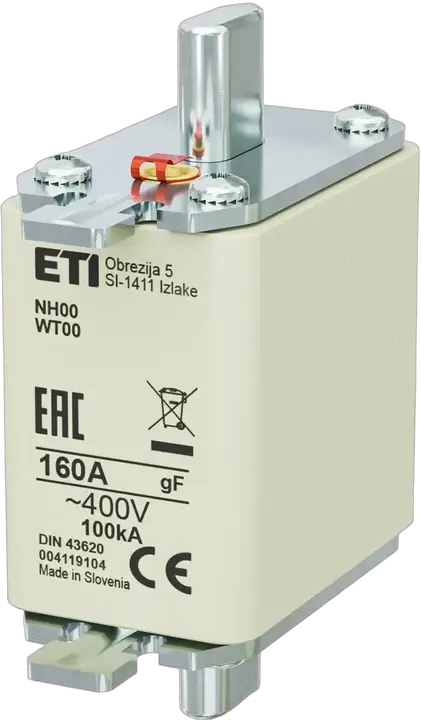

Fuse link NH00 gF 160A/400V 004119104
Specifications
- ETI Code:
- 004119104
- Description:
- NH00 gF 160A/400V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- NH00
- Rated current (A):
- 160
- Rated AC voltage (V):
- 400
- Characteristics:
- gF
- Breaking capacity AC (kA):
- 100
- Application:
- For cable protection
- Indicator:
- Top fuse status indicator
- Standards:
- PN-IEC 60269-2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400037961
- Net weight of the product
- 200 g
- Customs tariff
- 85361090
- logis_net_width
- 30 mm
- logis_net_height
- 80 mm
- logis_net_depth
- 59 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895187929
- Basic packaging weight
- 0.47 kg
Transport packaging
- Transport packaging quantity
- 90
- EAN code for a transport packaging
- 3838895187936
- Transport packaging weight
- 15.05 kg
- Pallet quantity
- 4680
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH00
- Rated current
- 160
- Rated voltage
- 400
- Voltage type
- AC
- Rated switching capacity
- 100
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
Characteristic
