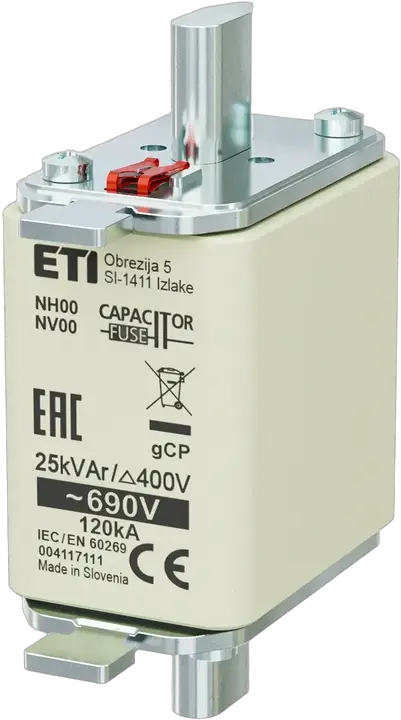

Fuse link NH00 gCP 25kVAr/690V 004117111
Specifications
- ETI Code:
- 004117111
- Description:
- NH00 gCP 25kVAr/690V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- NH00
- Rated power (kVAr):
- 25
- Rated AC voltage (V):
- 690
- Characteristics:
- gCP
- Breaking capacity AC (kA):
- 120
- Application:
- Special designed fuse according to rated power of 3 phase capacitor at nominal voltage 400V a.c. 50Hz.
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 5
- Standards:
- IEC 60269
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400063113
- Net weight of the product
- 170 g
- Customs tariff
- 85361050
- logis_net_width
- 30 mm
- logis_net_height
- 79 mm
- logis_net_depth
- 56 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895734703
- Basic packaging weight
- 0.48 kg
Transport packaging
- Transport packaging quantity
- 90
- EAN code for a transport packaging
- 3838895734710
- Transport packaging weight
- 14.635 kg
- Pallet quantity
- 4680
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH00
- Rated voltage
- 690
- Voltage type
- AC
- Rated switching capacity
- 120
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
Characteristic
