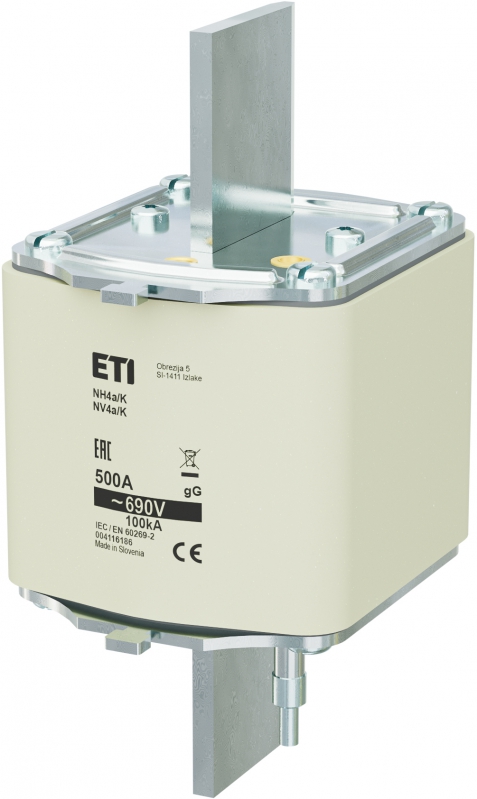

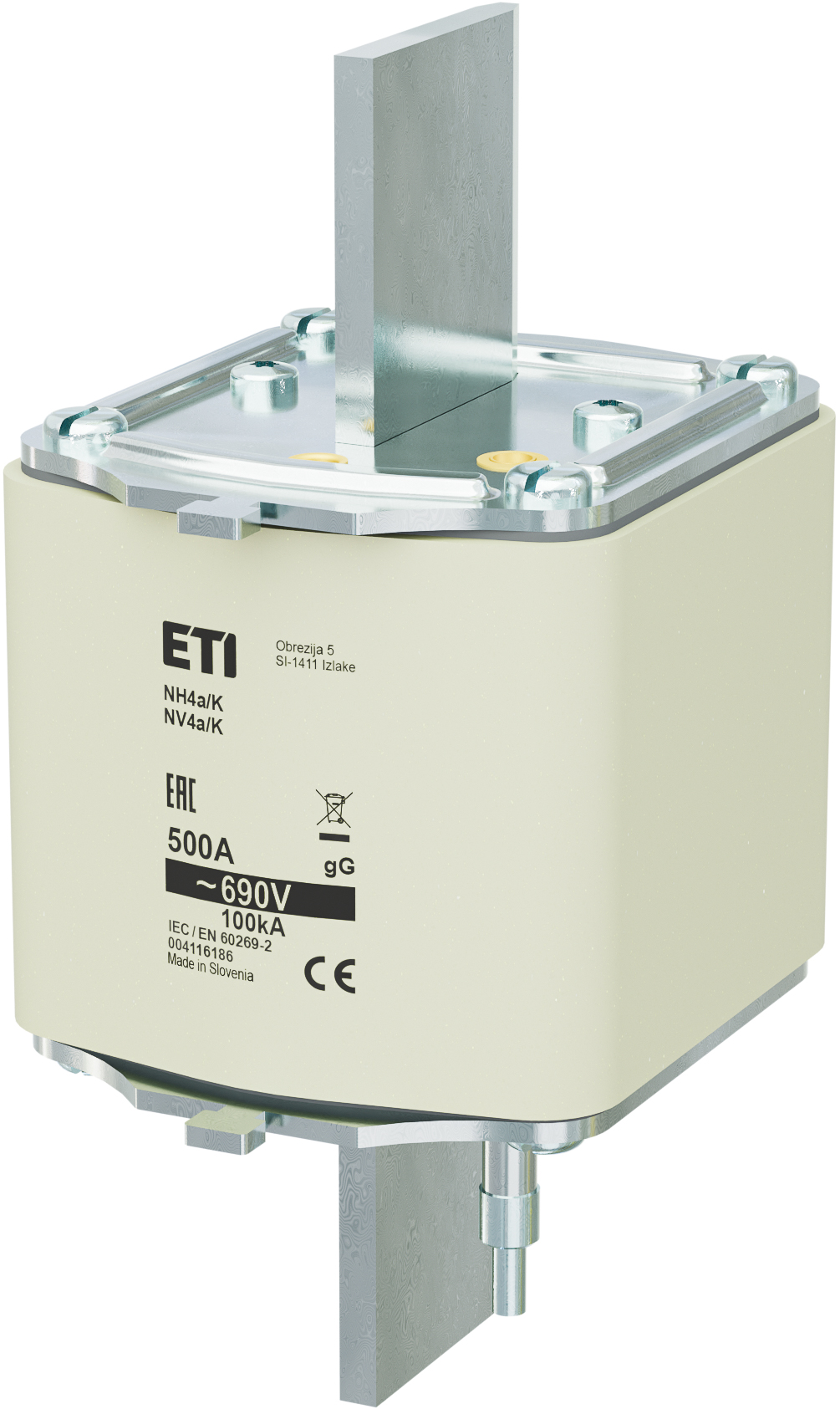

Fuse link NH4a/K gG 500A/690V 004116186
Specifications
- ETI Code:
- 004116186
- Description:
- NH4a/K gG 500A/690V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH-K
- Size:
- NH4a
- Rated current (A):
- 500
- Rated AC voltage (V):
- 690
- Rated DC voltage (V):
- 250
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 100
- Application:
- For cable protection
- Indicator:
- Striker pin status indicator
- Standards:
- IEC 60269-1, IEC 60269-2
Documents
Logistic Data
Product
- Net weight of the product
- 2810 g
- Customs tariff
- 85361090
- logis_net_width
- 95 mm
- logis_net_height
- 200 mm
- logis_net_depth
- 121 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895484554
- Basic packaging weight
- 2.32 kg
Transport packaging
- Transport packaging quantity
- 4
- EAN code for a transport packaging
- 3838895715399
- Transport packaging weight
- 9.6 kg
- Pallet quantity
- 160
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH4a
- Rated current
- 500
- Rated voltage
- 690
- Voltage type
- AC
- Rated switching capacity
- 100
- Utilization category
- gL/gG (cable protection/equipment protection)
- Type of fuse status indicator
- Other
- Insulated metal gripping lugs (IMGL)
- No

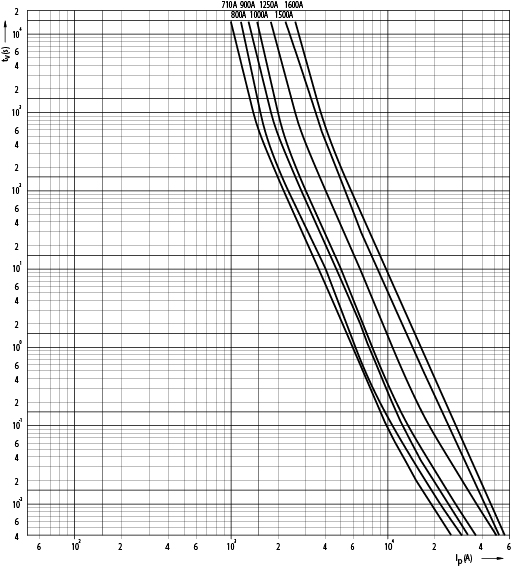

Characteristic
