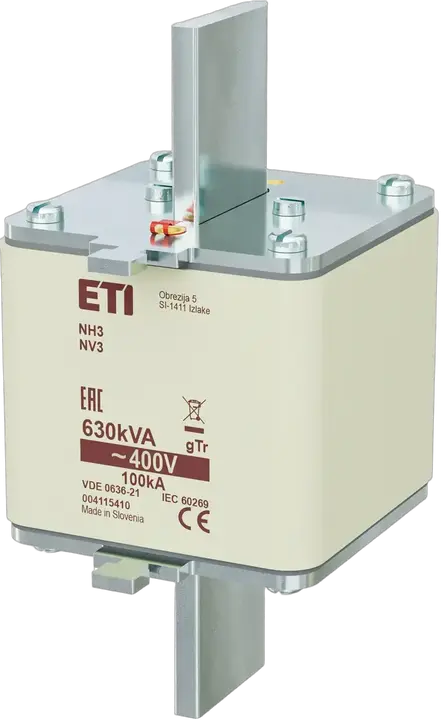

Fuse link NH3 gTr 909A/400V/630kVA 004115410
Specifications
- ETI Code:
- 004115410
- Description:
- NH3 gTr 909A/400V/630kVA
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- NH3
- Transformer:
- 630kVA
- Rated AC voltage (V):
- 400
- Characteristics:
- gTr
- Breaking capacity AC (kA):
- 100
- Application:
- Protection of transformers
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 58
- Operating joule integral (A2s):
- 6.470.000
- Prearcing joule integral (A2s):
- 3.000.000
- Standards:
- VDE 0636-21
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400038333
- Net weight of the product
- 1.3 kg
- Customs tariff
- 85361090
- logis_net_width
- 74 mm
- logis_net_height
- 152 mm
- logis_net_depth
- 88 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895476962
- Basic packaging weight
- 4.05 kg
Transport packaging
- Transport packaging quantity
- 15
- EAN code for a transport packaging
- 3838895612612
- Transport packaging weight
- 20.8 kg
- Pallet quantity
- 780
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH3
- Rated current
- 909
- Rated voltage
- 400
- Voltage type
- AC
- Rated switching capacity
- 100
- Utilization category
- gTr (Transformer protection)
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
