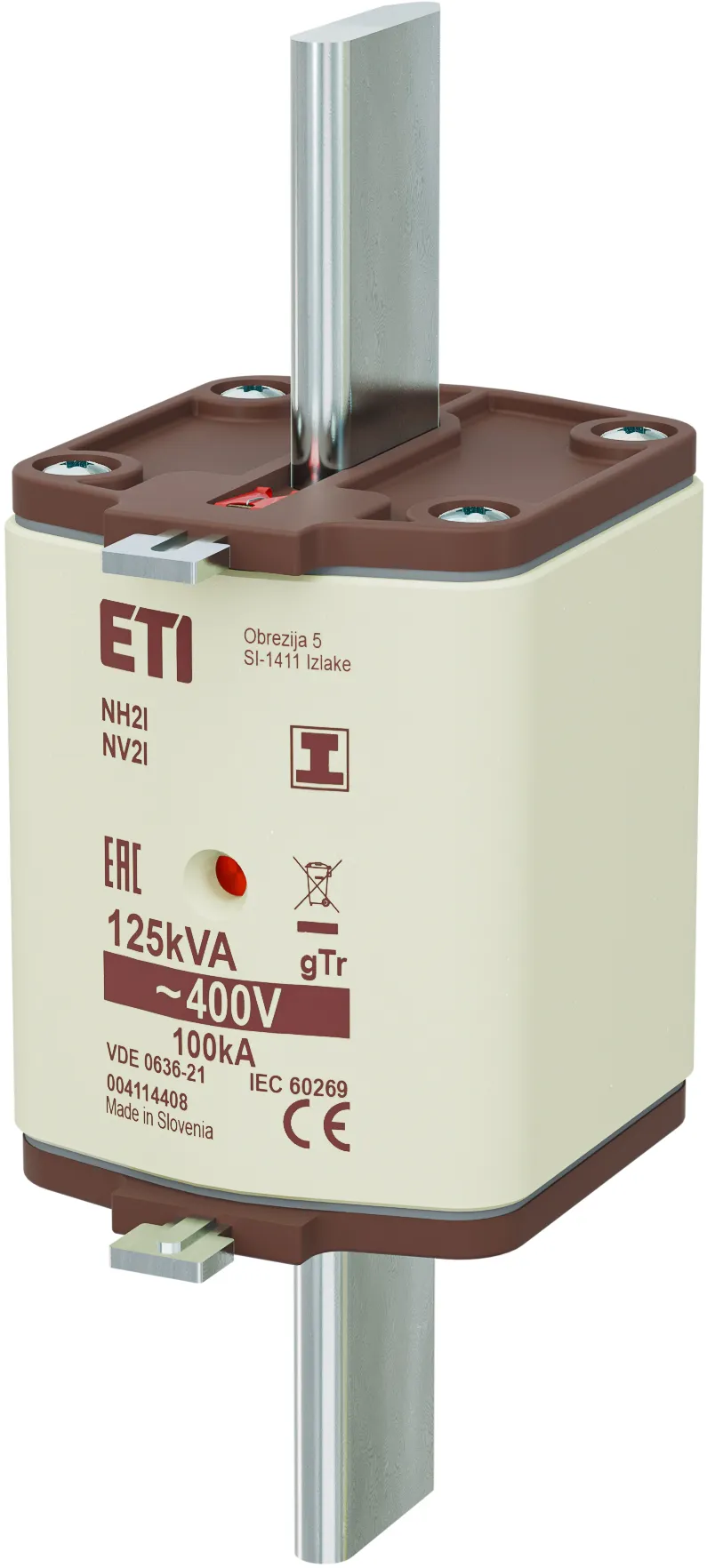

Fuse link NH2/I gTr 181A/400V/125kVA 004114408
Specifications
- ETI Code:
- 004114408
- Description:
- NH2/I gTr 181A/400V/125kVA
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH-I
- Size:
- NH2
- Transformer:
- 125kVA
- Rated AC voltage (V):
- 400
- Characteristics:
- gTr
- Breaking capacity AC (kA):
- 100
- Application:
- Protection of transformers
- Indicator:
- Combination fuse status indicator
- Power dissipation (W):
- 14
- Operating joule integral (A2s):
- 340.000
- Prearcing joule integral (A2s):
- 110.000
- Standards:
- VDE 0636-21
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400038180
- Net weight of the product
- 0.627 kg
- Customs tariff
- 85361090
- logis_net_width
- 54 mm
- logis_net_height
- 150 mm
- logis_net_depth
- 73 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895736417
- Basic packaging weight
- 1.88 kg
Transport packaging
- Transport packaging quantity
- 15
- EAN code for a transport packaging
- 3838895736424
- Transport packaging weight
- 9.635 kg
- Pallet quantity
- 780
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH2
- Rated current
- 180
- Rated voltage
- 400
- Voltage type
- AC
- Rated switching capacity
- 100
- Utilization category
- gTr (Transformer protection)
- Type of fuse status indicator
- Combination fuse status indicator
- Insulated metal gripping lugs (IMGL)
- Yes
