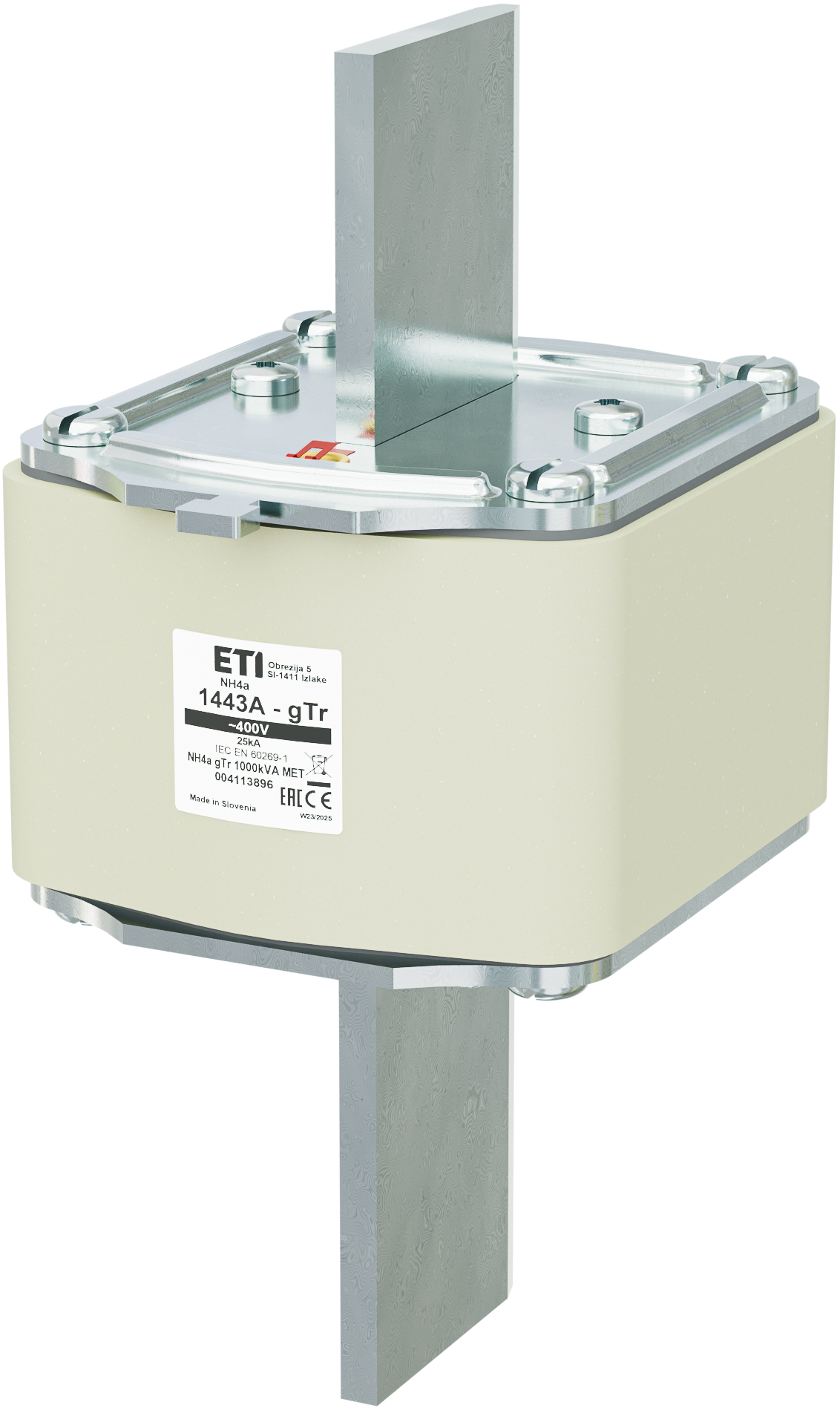

Fuse link NH4a gTr 1443A/400V/1000kVA ME 004113896
Specifications
- ETI Code:
- 004113896
- Description:
- NH4a gTr 1443A/400V/1000kVA ME
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- NH4a
- Rated current (A):
- 1443
- Characteristics:
- gTr
- Application:
- As metering fuse with strip fuse switch disconnector and fuse switch disconnector
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 110
- Standards:
- IEC EN 60269-1
Documents
Logistic Data
Product
- Net weight of the product
- 2280 g
- Customs tariff
- 85361090
- logis_net_width
- 95 mm
- logis_net_height
- 200 mm
- logis_net_depth
- 121 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895619093
- Basic packaging weight
- 2 kg
Transport packaging
- Transport packaging quantity
- 4
- EAN code for a transport packaging
- 3838400130037
- Transport packaging weight
- 8.32 kg
- Pallet quantity
- 144
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH4a
- Rated current
- 1443
- Rated voltage
- 400
- Voltage type
- AC
- Rated switching capacity
- 25
- Utilization category
- gTr (Transformer protection)
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
Characteristic
