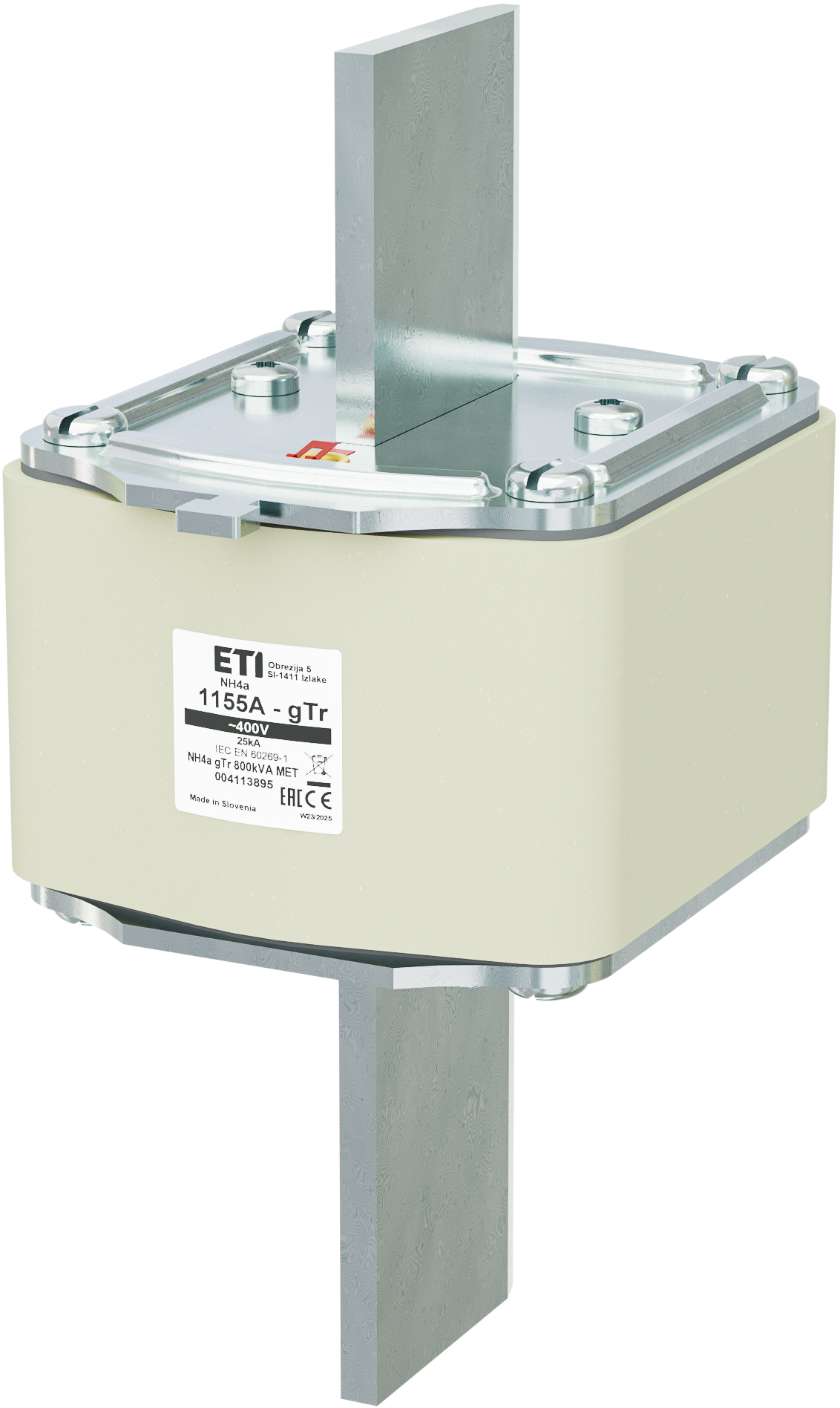

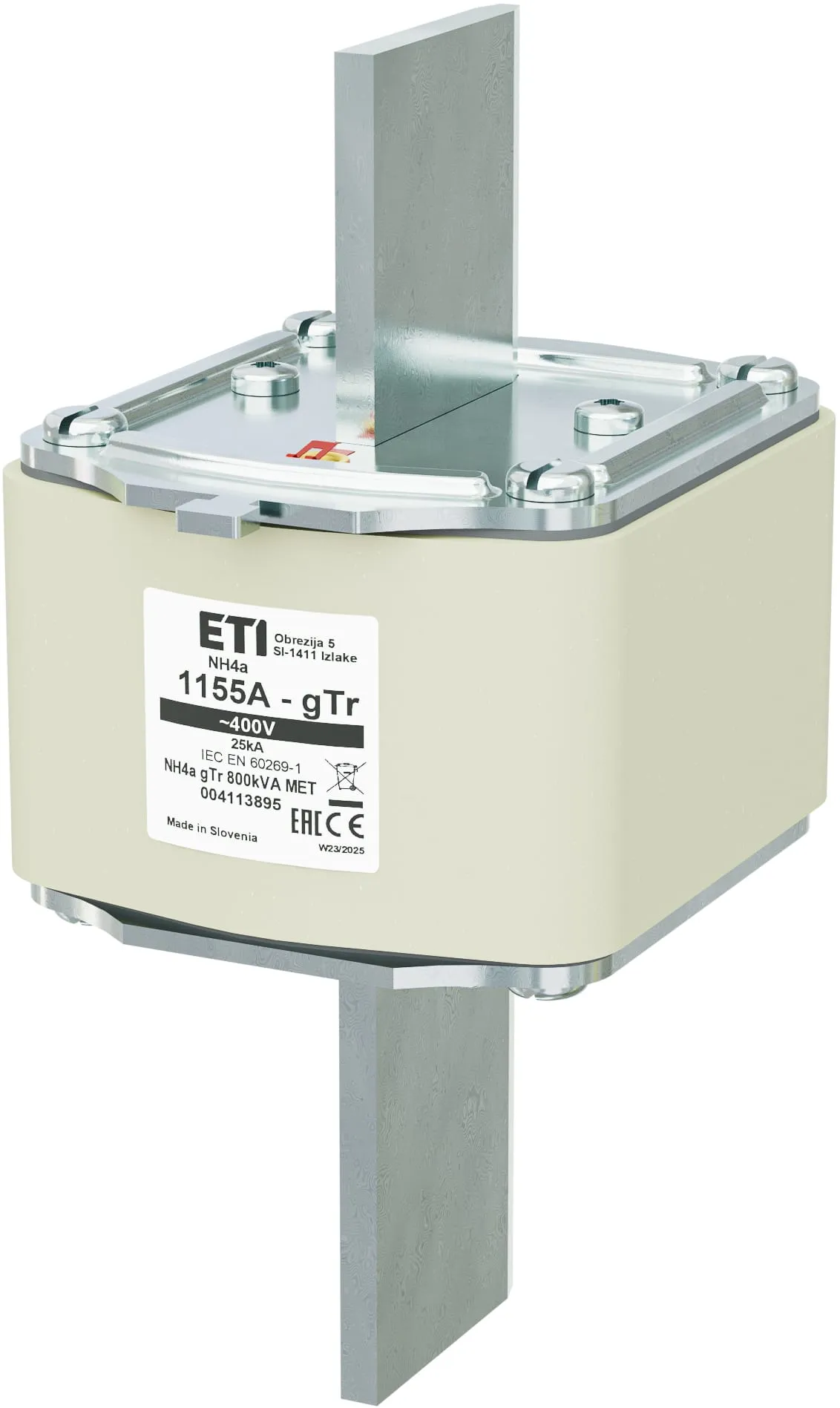

Fuse link NH4a gTr 1155A/400V/800kVA MET 004113895
Specifications
- ETI Code:
- 004113895
- Description:
- NH4a gTr 1155A/400V/800kVA MET
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- NH4a
- Rated current (A):
- 1155
- Characteristics:
- gTr
- Application:
- As metering fuse with strip fuse switch disconnector and fuse switch disconnector
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 91
- Standards:
- IEC EN 60269-1
Documents
Logistic Data
Product
- Net weight of the product
- 2280 g
- Customs tariff
- 85361090
- logis_net_width
- 95 mm
- logis_net_height
- 200 mm
- logis_net_depth
- 121 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895619079
- Basic packaging weight
- 2 kg
Transport packaging
- Transport packaging quantity
- 4
- EAN code for a transport packaging
- 3838400130020
- Transport packaging weight
- 8.32 kg
- Pallet quantity
- 144
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH4a
- Rated current
- 1155
- Rated voltage
- 400
- Voltage type
- AC
- Rated switching capacity
- 25
- Utilization category
- gTr (Transformer protection)
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
Characteristic
Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
NH4a gTr 1155A/400V/800kVA MET
