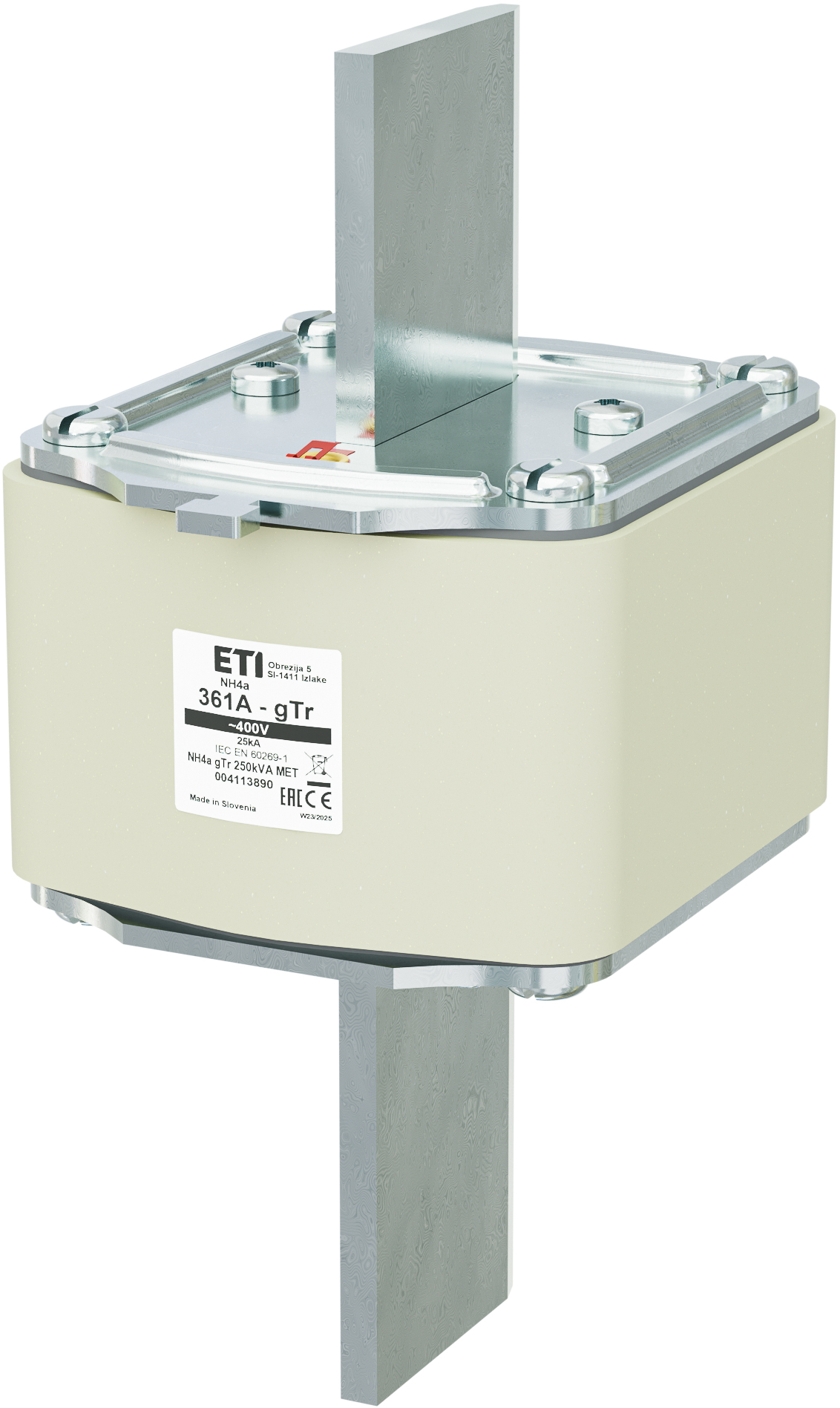

Fuse link NH4a gTr 361A/400V/250kVA MET 004113890

Specifications

ETI Code:
004113890
Description:
NH4a gTr 361A/400V/250kVA MET
Class name:
Fuse link
efuse:
1
Type:
NH
Size:
NH4a
Rated current (A):
361
Characteristics:
gTr
Application:
As metering fuse with strip fuse switch disconnector and fuse switch disconnector
Indicator:
Top fuse status indicator
Power dissipation (W):
25
Standards:
IEC EN 60269-1

Documents

Product

Net weight of the product
2280  g
Customs tariff
85361090
logis_net_width
95  mm
logis_net_height
200  mm
logis_net_depth
121  mm

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895618973
Basic packaging weight
2  kg

Transport packaging

Transport packaging quantity
4
EAN code for a transport packaging
3838400129970
Transport packaging weight
8.32  kg
Pallet quantity
144
Classification
EC000055
Class name
Low Voltage HRC fuse
Construction size
NH4a
Rated current
361
Rated voltage
400
Voltage type
AC
Rated switching capacity
25
Utilization category
gTr (Transformer protection)
Type of fuse status indicator
Top fuse status indicator
Insulated metal gripping lugs (IMGL)
No
ETIM Classification – Version 7.0
