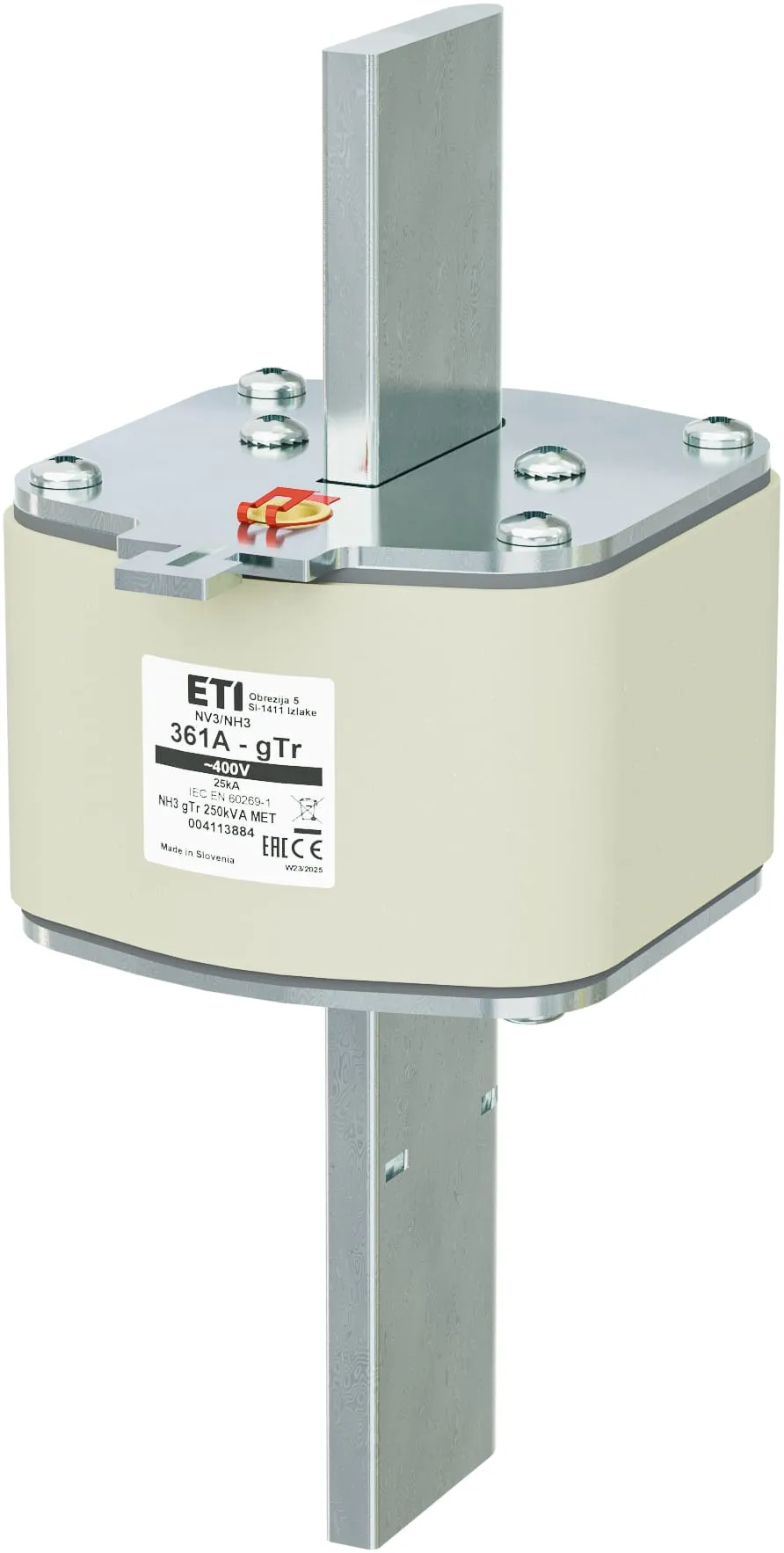

Fuse link NH3 gTr 361A/400V/250kVA MET 004113884
Specifications
- ETI Code:
- 004113884
- Description:
- NH3 gTr 361A/400V/250kVA MET
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- NH3
- Rated current (A):
- 361
- Characteristics:
- gTr
- Application:
- As metering fuse with strip fuse switch disconnector and fuse switch disconnector
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 25
- Standards:
- IEC EN 60269-1
Documents
Logistic Data
Product
- Net weight of the product
- 650 g
- Customs tariff
- 85361090
- logis_net_width
- 66 mm
- logis_net_height
- 152 mm
- logis_net_depth
- 84 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895618911
- Basic packaging weight
- 1 kg
Transport packaging
- Transport packaging quantity
- 12
- EAN code for a transport packaging
- 3838895618928
- Transport packaging weight
- 12.5 kg
- Pallet quantity
- 624
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH3
- Rated current
- 361
- Rated voltage
- 400
- Voltage type
- AC
- Rated switching capacity
- 25
- Utilization category
- gTr (Transformer protection)
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
