Fuse link NHU3 gBat 315A/1000V DC 004110776
Specifications
- ETI Code:
- 004110776
- Description:
- NHU3 gBat 315A/1000V DC
- Class name:
- Fuse link
- efuse:
- 1
- Rated current (A):
- 315
- Type:
- NH-U
- Size:
- NH3
- Characteristics:
- gBat
- Rated DC voltage (V):
- 1000
- Indicator:
- Top fuse status indicator
- Breaking capacity DC (kA):
- 30
- Operating joule integral (A2s):
- 80.000
- L/R (ms):
- 1
- Prearcing joule integral (A2s):
- 40.000
- Application:
- Battery protection
- Power dissipation (W):
- 54
- Power dissipation (0,7x In) (W):
- 24
- Standards:
- IEC 60269
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400059178
- Net weight of the product
- 1250 g
- Customs tariff
- 85361090
- logis_net_width
- 73 mm
- logis_net_height
- 139 mm
- logis_net_depth
- 73 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895897651
- Basic packaging weight
- 3.66 kg
Transport packaging
- Transport packaging quantity
- 15
- EAN code for a transport packaging
- 3838895897668
- Transport packaging weight
- 18.65 kg
- Pallet quantity
- 780
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Application
- Battery protection
- Rated voltage DC
- 1000
- Construction size
- NH3
- Rated current
- 315
- Rated voltage
- 1000
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No

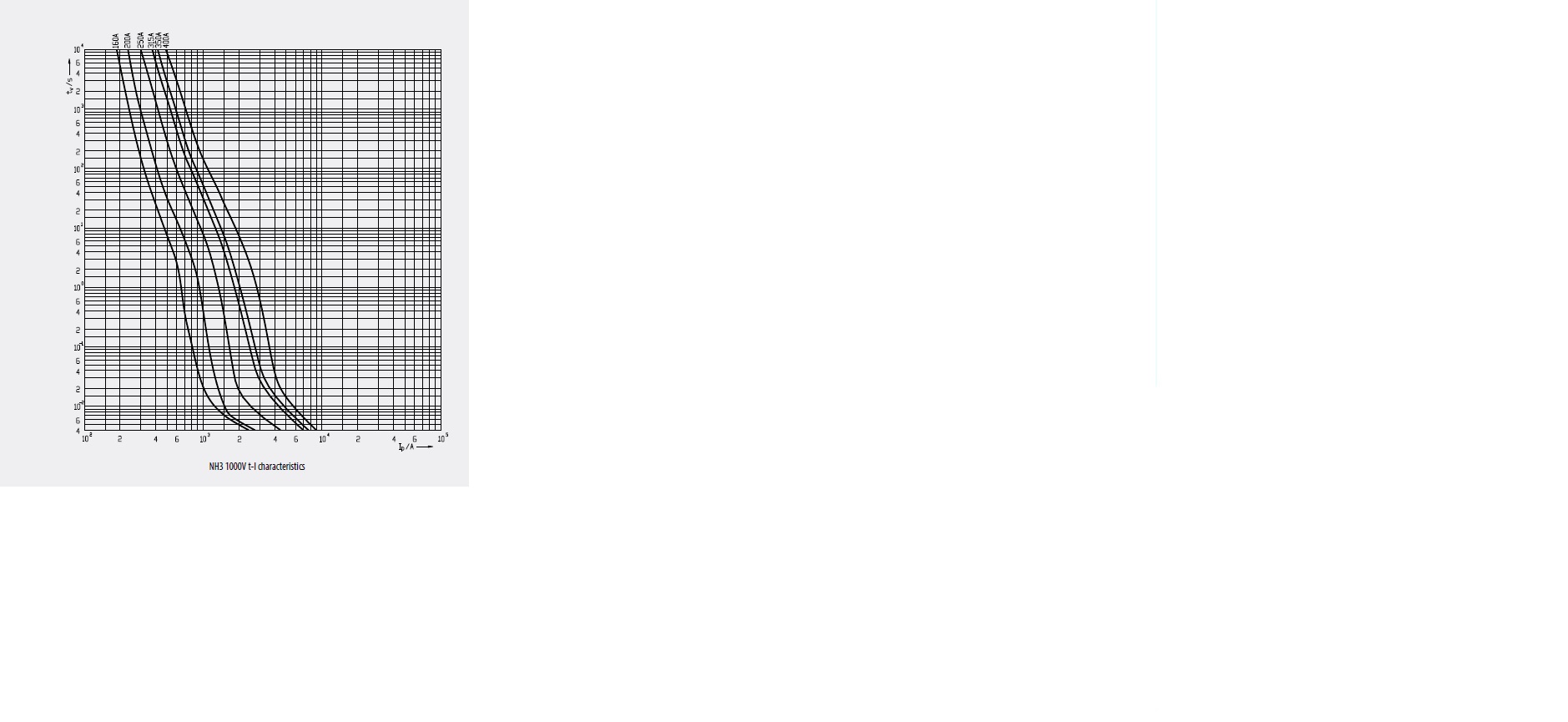

Characteristic

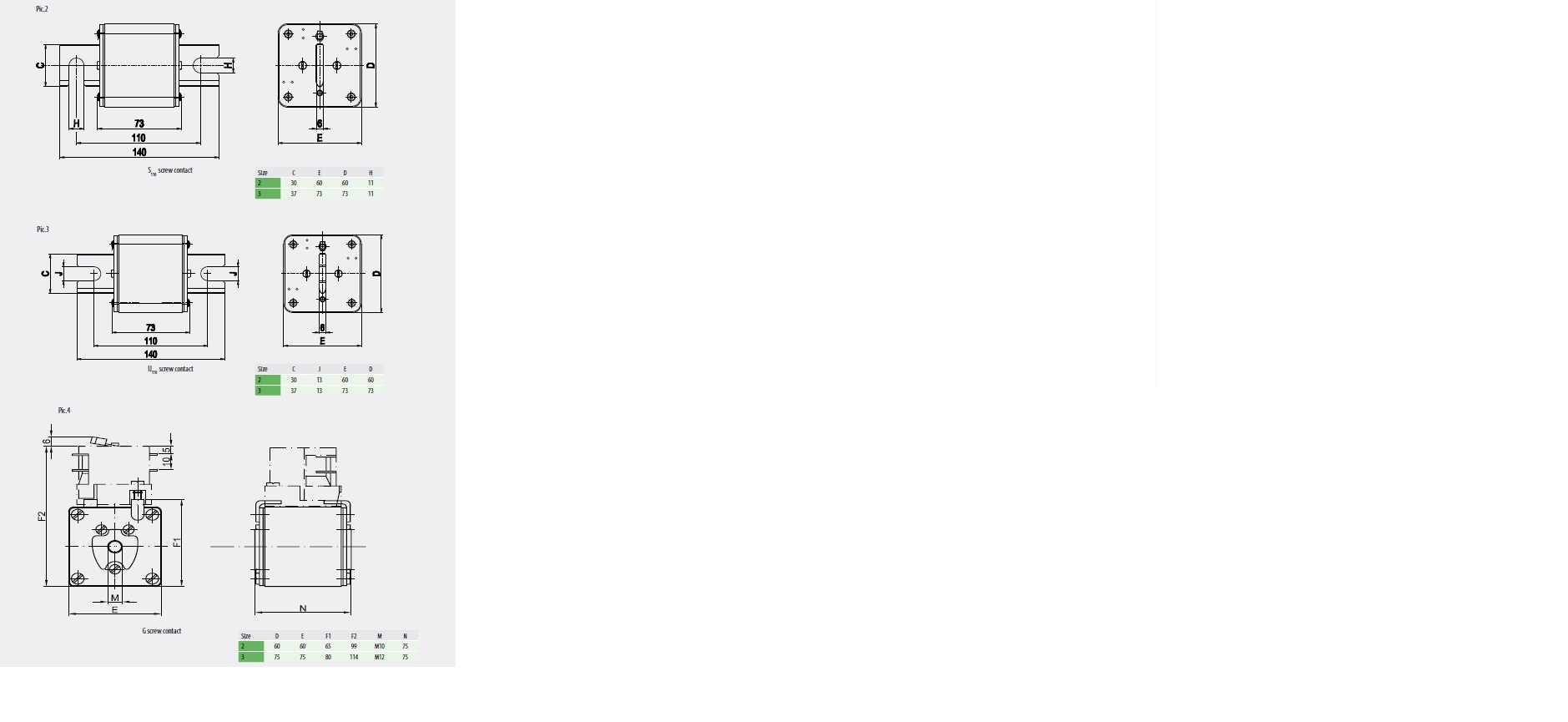

Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
NHU3 gBat 315A/1000V DC
