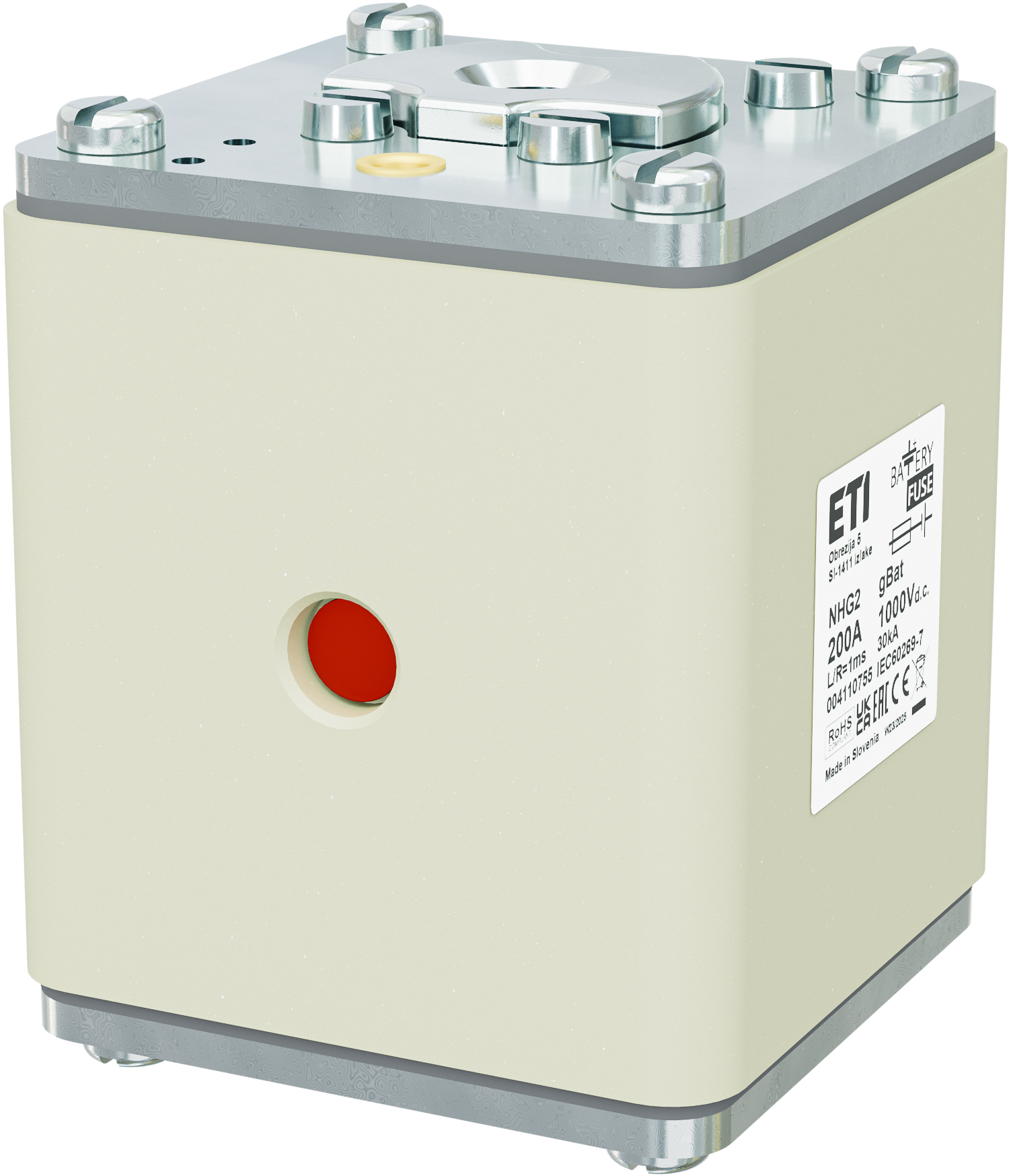

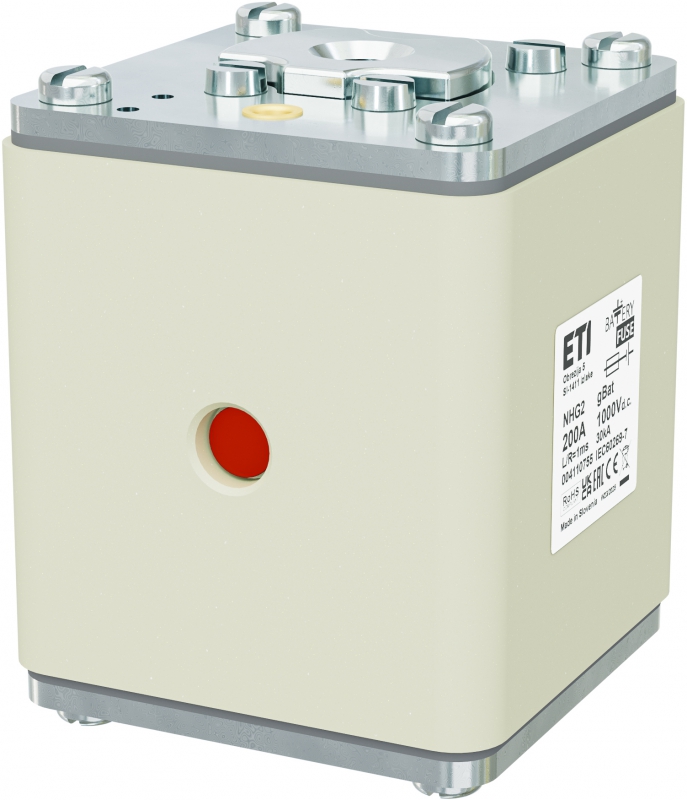

Fuse link NHG2 gBat 200A/1000V DC 004110755
Specifications
- ETI Code:
- 004110755
- Description:
- NHG2 gBat 200A/1000V DC
- Class name:
- Fuse link
- efuse:
- 1
- Rated current (A):
- 200
- Type:
- NH-G
- Size:
- NH2
- Characteristics:
- gBat
- Rated DC voltage (V):
- 1000
- Indicator:
- Centre fuse status indicator
- Breaking capacity DC (kA):
- 30
- Operating joule integral (A2s):
- 29.000
- L/R (ms):
- 1
- Prearcing joule integral (A2s):
- 4.400
- Application:
- Battery protection
- Power dissipation (W):
- 26
- Power dissipation (0,7x In) (W):
- 11
- Standards:
- IEC 60269
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400142177
- Net weight of the product
- 800 g
- Customs tariff
- 85361090
- logis_net_width
- 60 mm
- logis_net_height
- 75 mm
- logis_net_depth
- 60 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895897699
- Basic packaging weight
- 0.8 kg
Transport packaging
- Transport packaging quantity
- 16
- EAN code for a transport packaging
- 3838895897705
- Transport packaging weight
- 11.66 kg
- Pallet quantity
- 832
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Application
- Battery protection
- Rated voltage DC
- 1000
- Construction size
- NH2
- Rated current
- 200
- Rated voltage
- 1000
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- Other
- Type of fuse status indicator
- Centre fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
