Fuse link NH3L gBat 500A/1500V DC 004110681
Specifications
- ETI Code:
- 004110681
- Description:
- NH3L gBat 500A/1500V DC
- Class name:
- Fuse link
- efuse:
- 1
- Rated current (A):
- 500
- Type:
- NH
- Size:
- 3L
- Characteristics:
- gBat
- Rated DC voltage (V):
- 1500
- Indicator:
- Top fuse status indicator
- Breaking capacity DC (kA):
- 100
- Operating joule integral (A2s):
- 850.000
- L/R (ms):
- 3
- Prearcing joule integral (A2s):
- 150.000
- Application:
- Battery protection
- Power dissipation (W):
- 79
- Power dissipation (0,7x In) (W):
- 44,3
- Standards:
- IEC 60269-7
Documents
Logistic Data
Product
- Net weight of the product
- 1980 g
- Customs tariff
- 85351000
- logis_net_width
- 73 mm
- logis_net_height
- 207 mm
- logis_net_depth
- 88 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895842941
- Basic packaging weight
- 1.36 kg
Transport packaging
- Transport packaging quantity
- 9
- EAN code for a transport packaging
- 3838895842958
- Transport packaging weight
- 12.59 kg
- Pallet quantity
- 468
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Rated voltage DC
- 1500
- Application
- Battery protection
- Construction size
- Other
- Rated current
- 500
- Rated voltage
- 1500
- Voltage type
- DC
- Rated switching capacity
- 100
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No

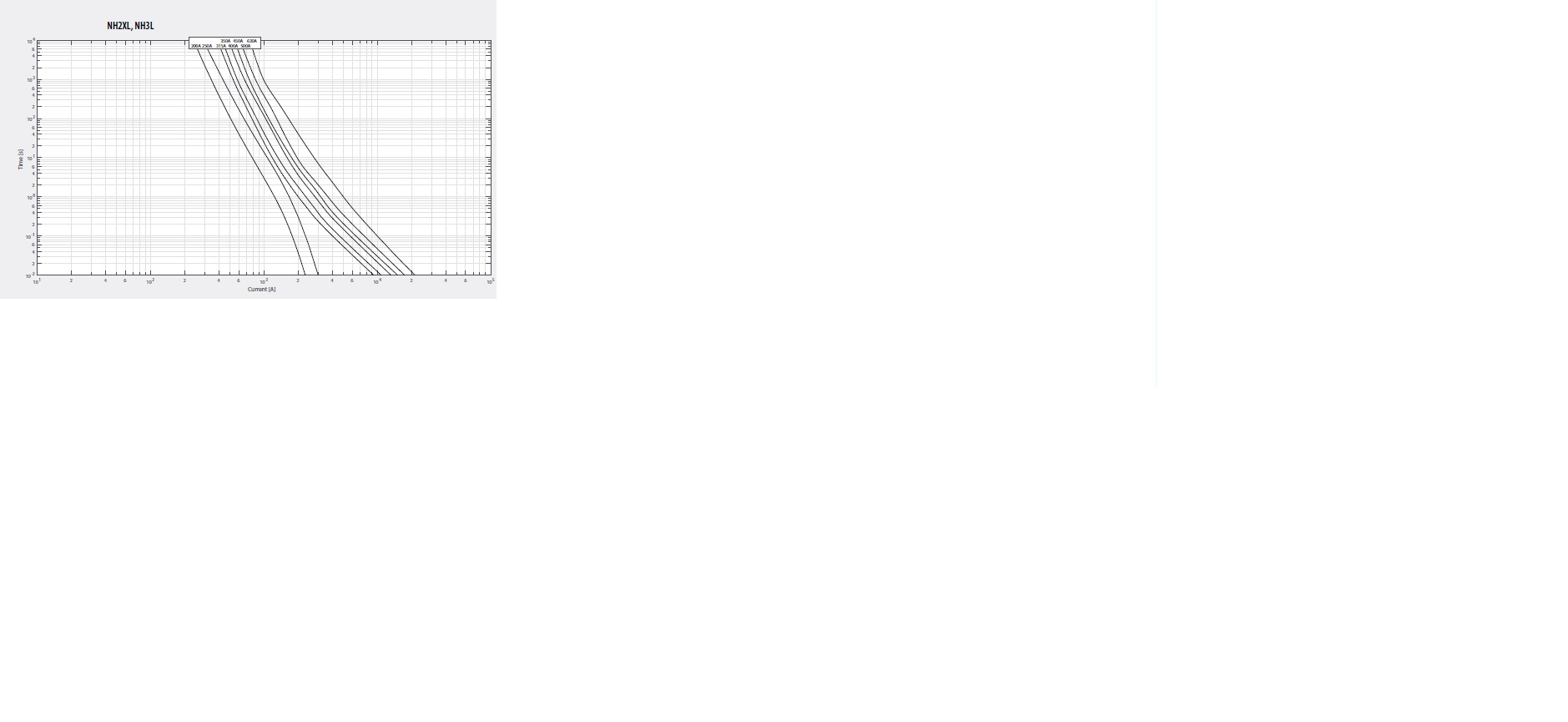

Characteristic

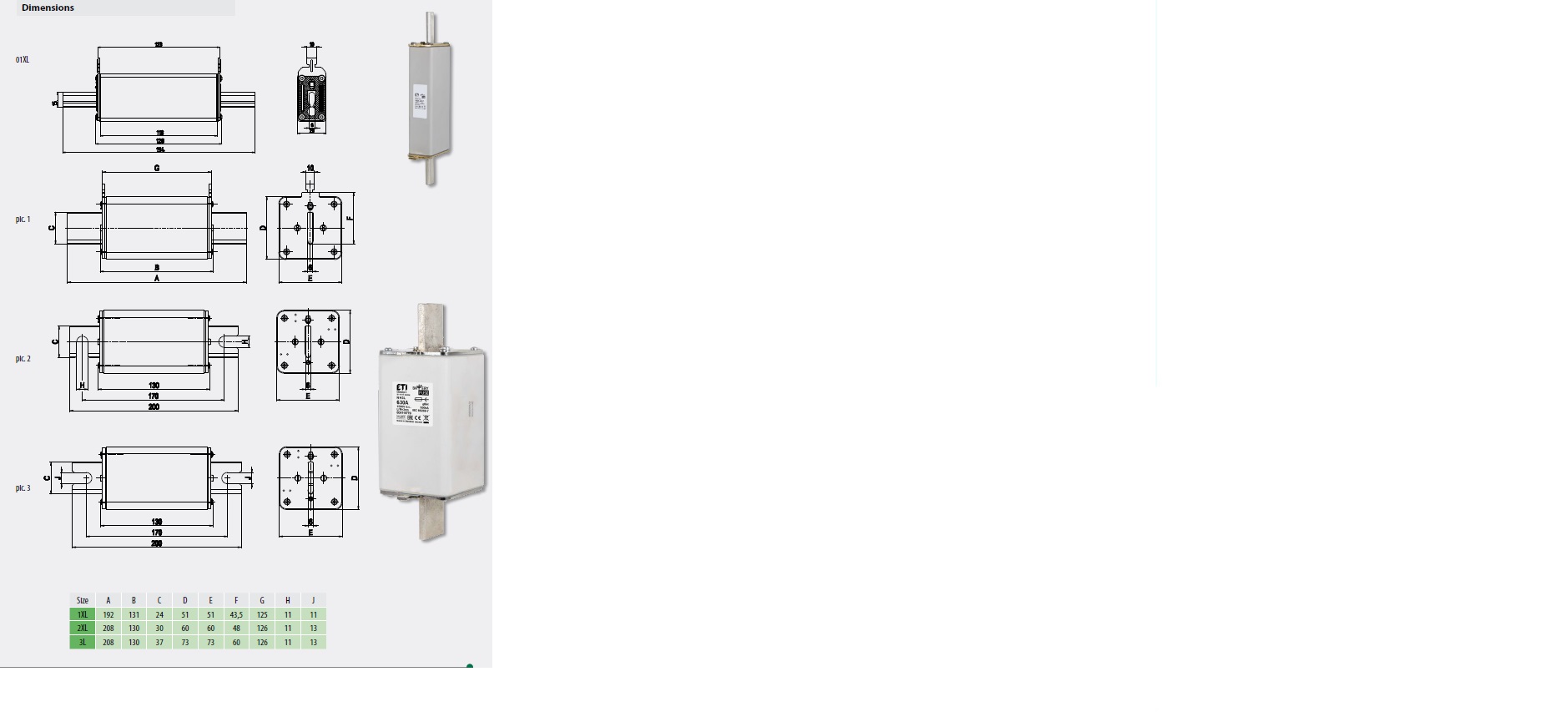

Images & Diagrams
