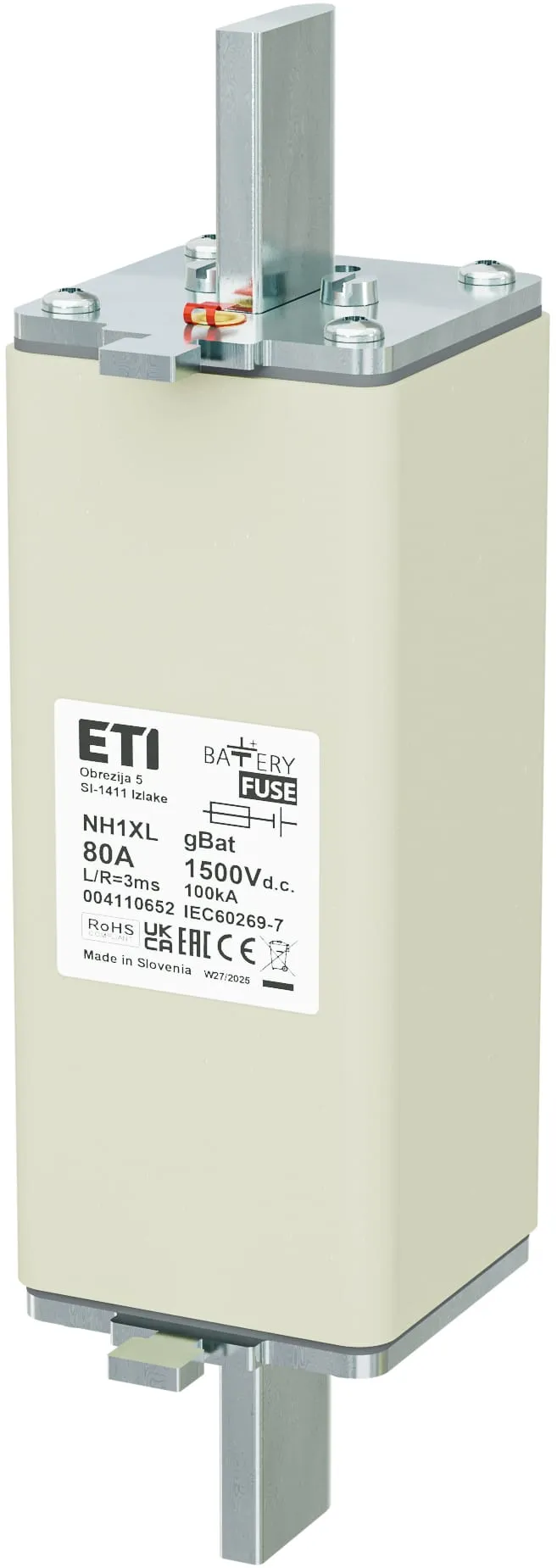

Fuse link NH1XL gBat 80A/1500V DC 004110652

Specifications

ETI Code:
004110652
Description:
NH1XL gBat 80A/1500V DC
Class name:
Fuse link
efuse:
1
Rated current (A):
80
Type:
NH
Size:
1XL
Characteristics:
gBat
Rated DC voltage (V):
1500
Indicator:
Top fuse status indicator
Breaking capacity DC (kA):
100
Operating joule integral (A2s):
32.000
L/R (ms):
3
Prearcing joule integral (A2s):
6.000
Application:
Battery protection
Power dissipation (W):
16
Power dissipation (0,7x In) (W):
7
Standards:
IEC 60269-7

Documents

Product

Net weight of the product
950  g
Customs tariff
85351000
logis_net_width
51  mm
logis_net_height
192  mm
logis_net_depth
67  mm

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895842378
Basic packaging weight
0.79  kg

Transport packaging

Transport packaging quantity
15
EAN code for a transport packaging
3838895842385
Transport packaging weight
12.146  kg
Pallet quantity
780
Classification
EC000055
Class name
Low Voltage HRC fuse
Rated voltage DC
1500
Application
Battery protection
Construction size
Other
Rated current
80
Rated voltage
1500
Voltage type
DC
Rated switching capacity
100
Utilization category
Other
Type of fuse status indicator
Top fuse status indicator
Insulated metal gripping lugs (IMGL)
No
ETIM Classification – Version 7.0

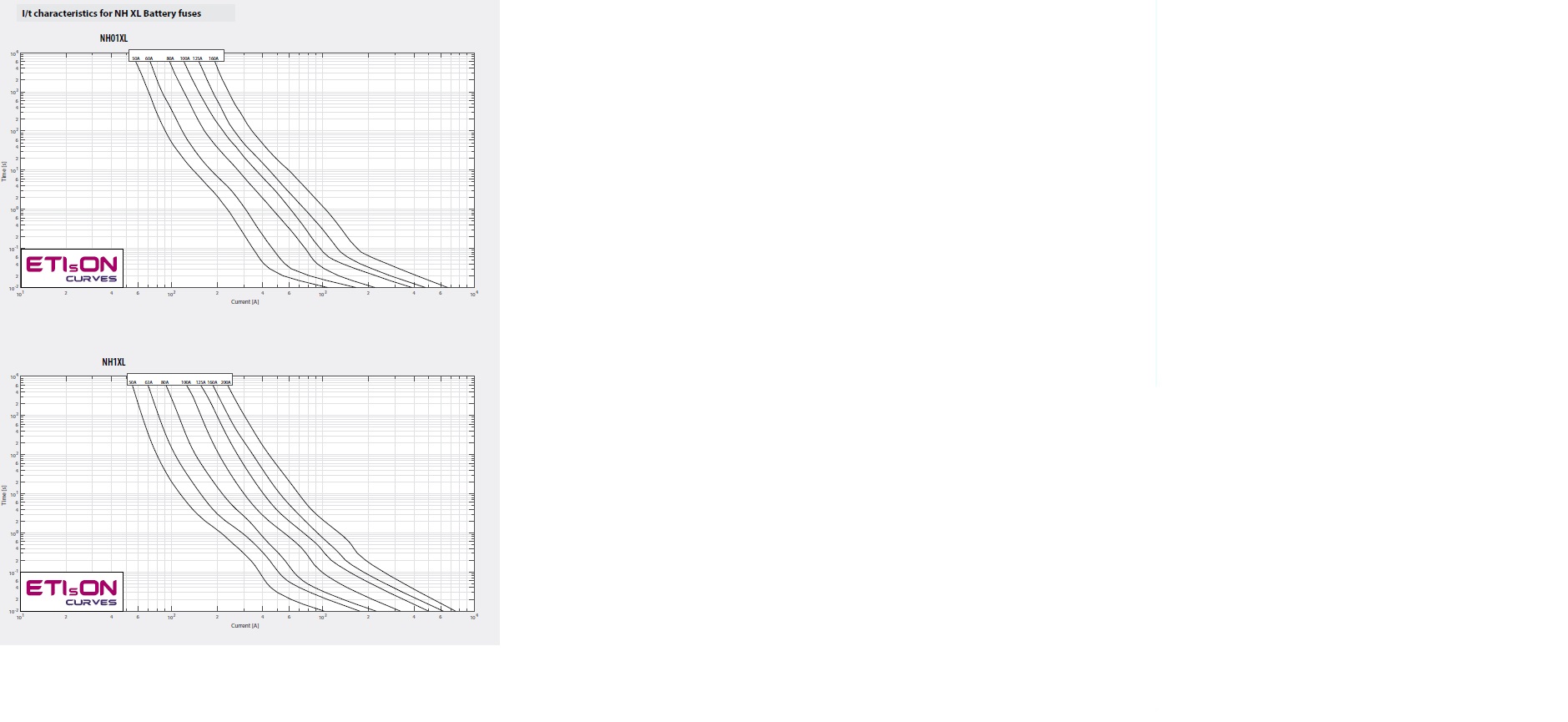

Images & Diagrams
