Fuse link NH3L gPV 630A/1500V DC UL 004110647
Specifications
- ETI Code:
- 004110647
- Description:
- NH3L gPV 630A/1500V DC UL
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- 3L
- Rated current (A):
- 630
- Rated DC voltage (V):
- 1500
- Characteristics:
- gPV
- L/R (ms):
- 3
- Breaking capacity DC (kA):
- 50
- Application:
- Fuse-link for DC application
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 102
- Power dissipation (0,7x In) (W):
- 40
- Operating joule integral (A2s):
- 1.600.000
- Prearcing joule integral (A2s):
- 280.000
- Standards:
- IEC 60269-6, UL 248-19
- UL certificate:
- E347771
Documents
Logistic Data
Product
- Net weight of the product
- 1980 g
- Customs tariff
- 85351000
- logis_net_width
- 73 mm
- logis_net_height
- 207 mm
- logis_net_depth
- 88 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895902232
- Basic packaging weight
- 2.02 kg
Transport packaging
- Transport packaging quantity
- 9
- EAN code for a transport packaging
- 3838895902249
- Transport packaging weight
- 18.53 kg
- Pallet quantity
- 468
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Application
- Fuse-link for DC application
- Rated voltage DC
- 1500
- Construction size
- Other
- Rated current
- 630
- Rated voltage
- 1500
- Voltage type
- DC
- Rated switching capacity
- 50
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No

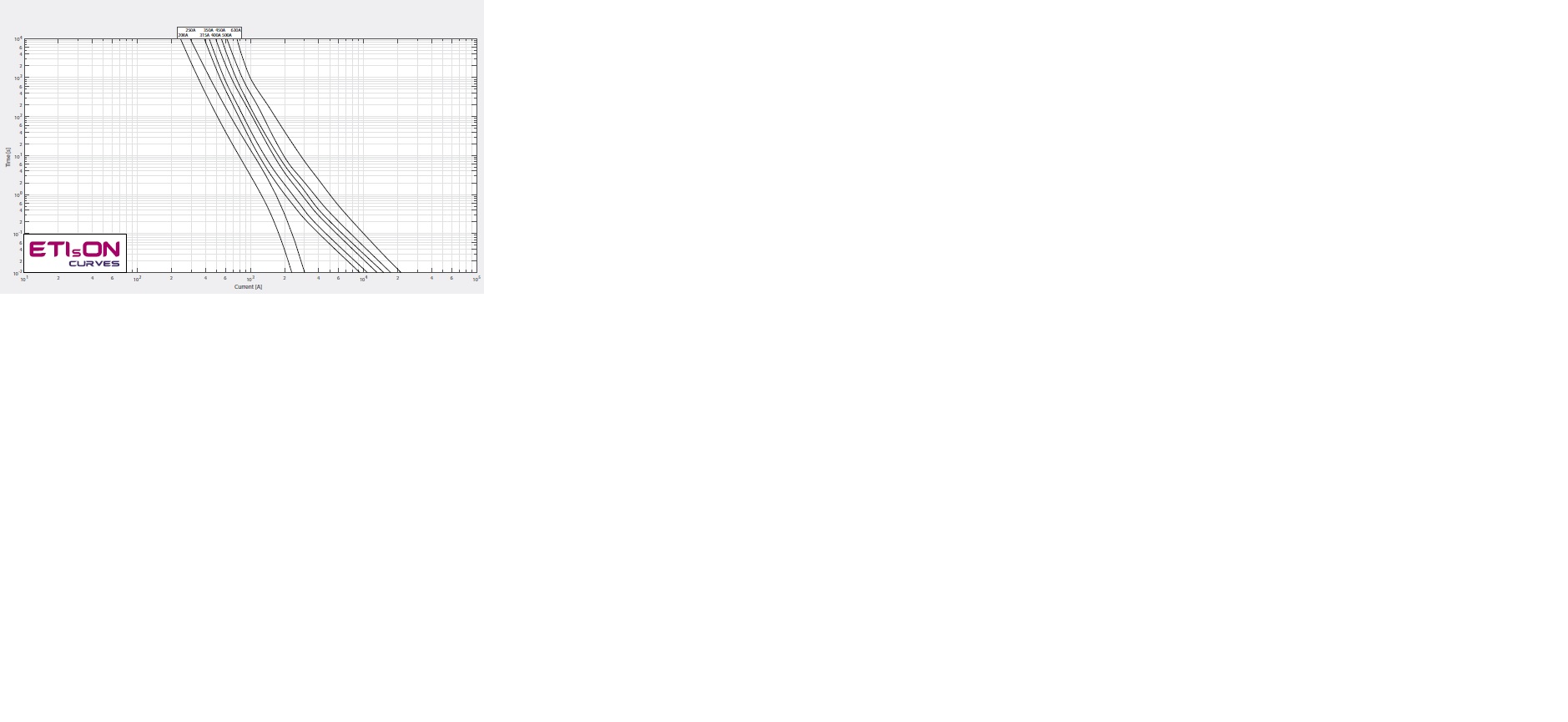

Characteristic

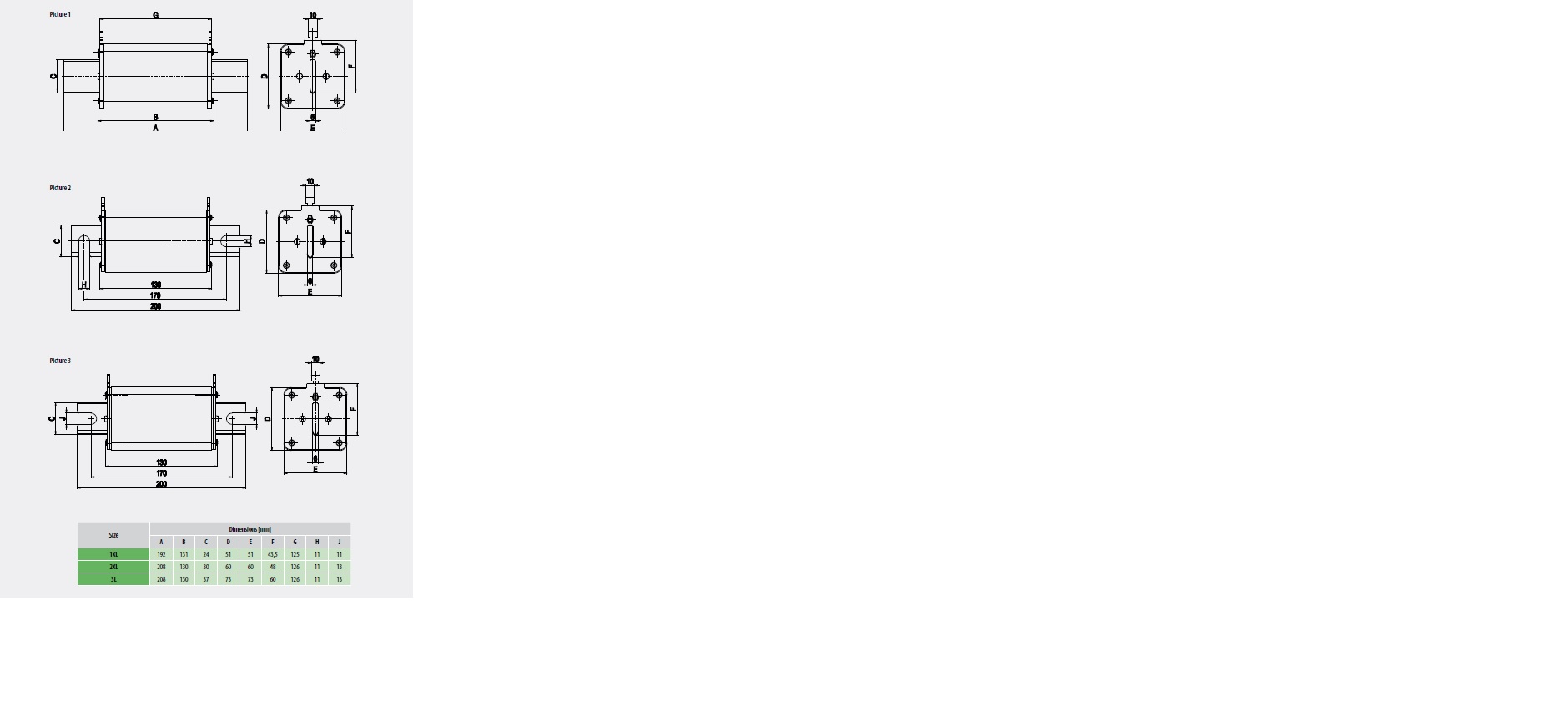

Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
NH3L gPV 630A/1500V DC UL
