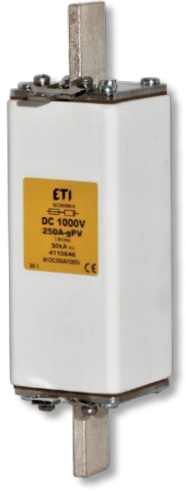

Fuse link NH1XL gPV 250A/1000V DC 004110646
Specifications
- ETI Code:
- 004110646
- Description:
- NH1XL gPV 250A/1000V DC
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- 1XL
- Rated current (A):
- 250
- Rated DC voltage (V):
- 1000
- Characteristics:
- gPV
- L/R (ms):
- 2
- Breaking capacity DC (kA):
- 30
- Application:
- Fuse link for DC application
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 42
- Power dissipation (0,7x In) (W):
- 24
- Operating joule integral (A2s):
- 180.000
- Prearcing joule integral (A2s):
- 19.000
- Standards:
- IEC 60269-6
Documents
Logistic Data
Product
- Net weight of the product
- 950 g
- Customs tariff
- 85361090
- logis_net_width
- 51 mm
- logis_net_height
- 192 mm
- logis_net_depth
- 67 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895837022
- Basic packaging weight
- 0.787 kg
Transport packaging
- Transport packaging quantity
- 15
- EAN code for a transport packaging
- 3838895837039
- Transport packaging weight
- 12.155 kg
- Pallet quantity
- 780
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Application
- Fuse link for DC application
- Rated voltage DC
- 1000
- Construction size
- Other
- Rated current
- 250
- Rated voltage
- 1000
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No

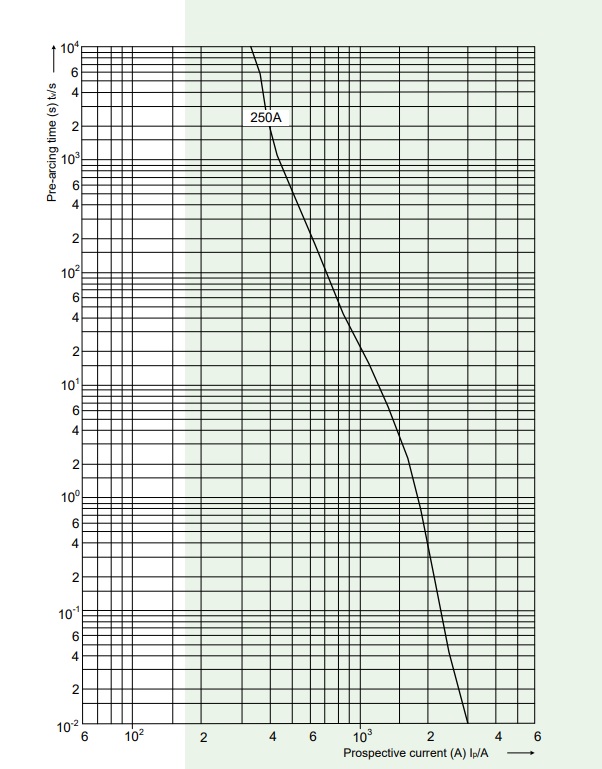

Characteristic

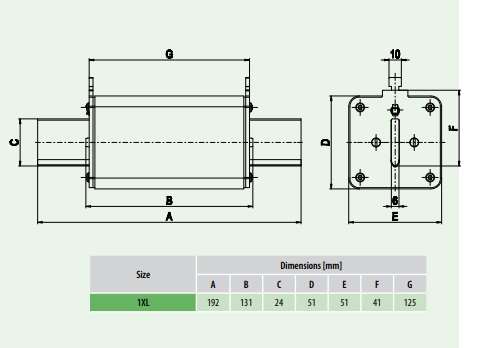

Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
Tags
Accessories 3
>
>
0
NH1XL gPV 250A/1000V DC
