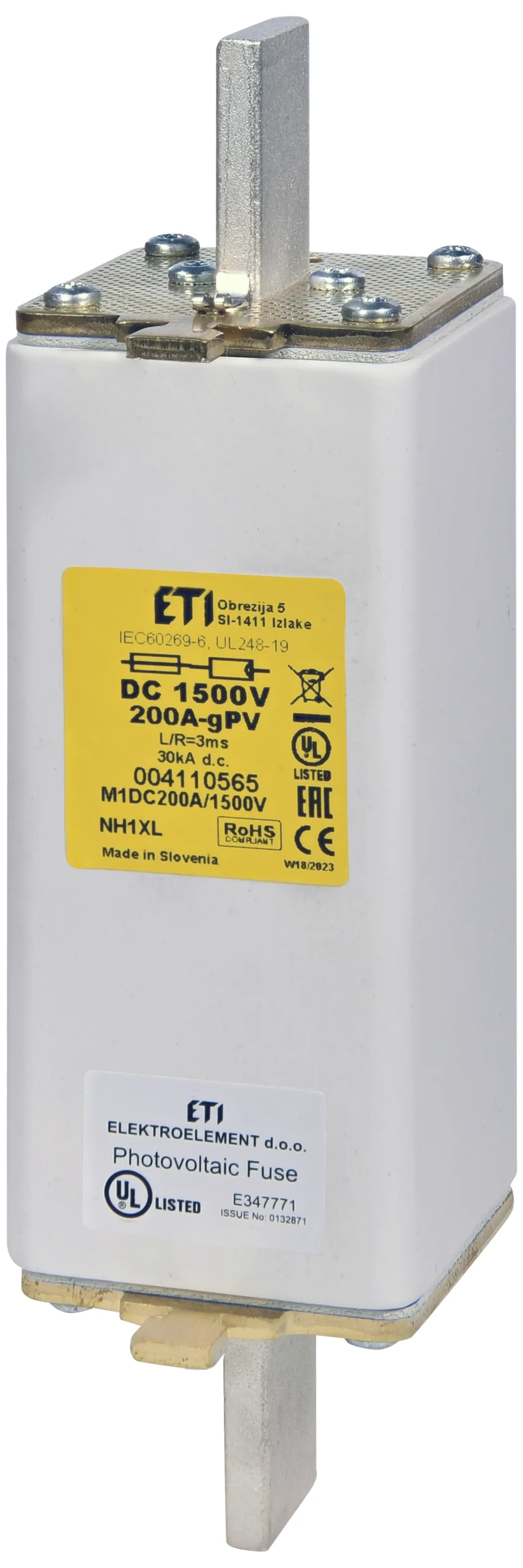

Fuse link NH1XL gPV 80A/1500V DC UL 004110561
Specifications
- ETI Code:
- 004110561
- Description:
- NH1XL gPV 80A/1500V DC UL
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- 1XL
- Rated current (A):
- 80
- Rated DC voltage (V):
- 1500
- Characteristics:
- gPV
- L/R (ms):
- 3
- Breaking capacity DC (kA):
- 30
- Application:
- Fuse-link for DC application
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 16
- Power dissipation (0,7x In) (W):
- 7
- Operating joule integral (A2s):
- 15.000
- Prearcing joule integral (A2s):
- 5.000
- Standards:
- IEC 60269-6, UL 248-19
- UL certificate:
- E347771
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400144089
- Net weight of the product
- 950 g
- Customs tariff
- 85351000
- logis_net_width
- 51 mm
- logis_net_height
- 192 mm
- logis_net_depth
- 67 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895602835
- Basic packaging weight
- 0.787 kg
Transport packaging
- Transport packaging quantity
- 16
- EAN code for a transport packaging
- 3838895602842
- Transport packaging weight
- 18.75 kg
- Pallet quantity
- 832
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Application
- Fuse-link for DC application
- Rated voltage DC
- 1500
- Construction size
- Other
- Rated current
- 80
- Rated voltage
- 1500
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
