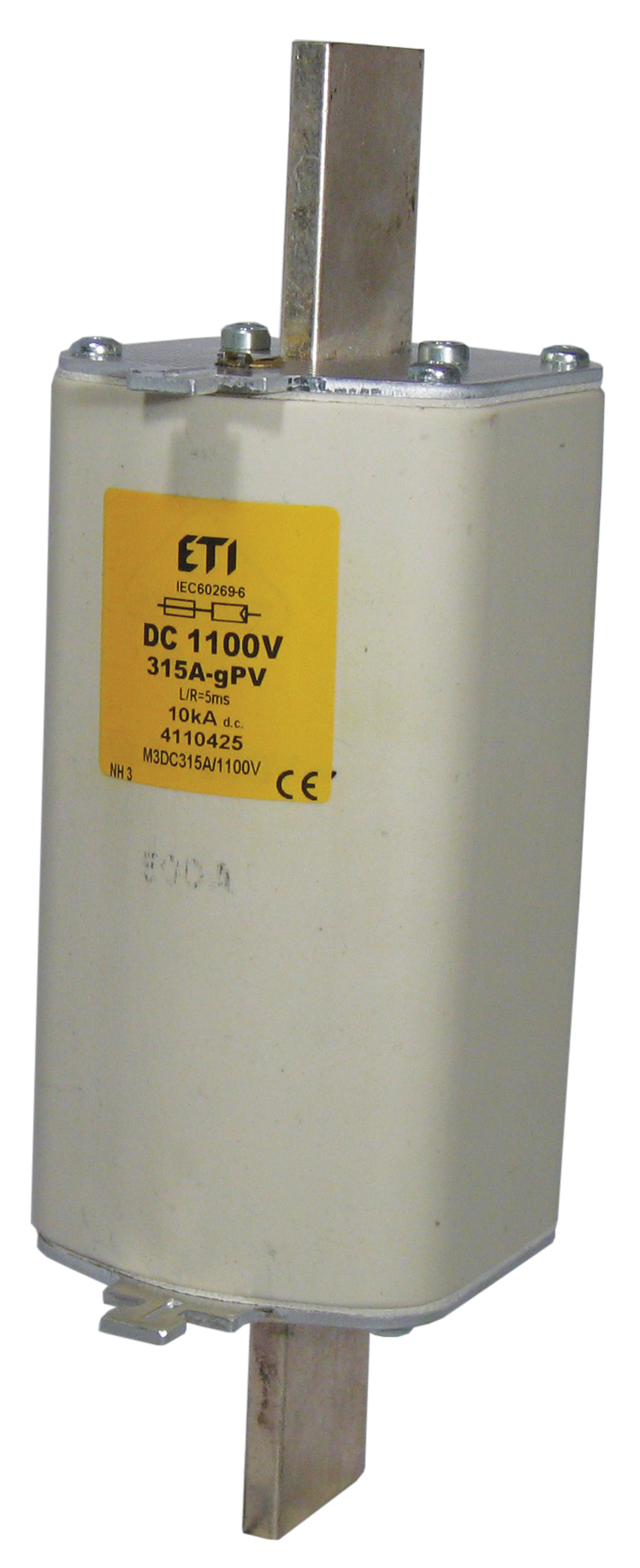

Fuse link NH1XL gR 125A/1100V DC 004110543
Specifications
- ETI Code:
- 004110543
- Description:
- NH1XL gR 125A/1100V DC
- Class name:
- Fuse link
- efuse:
- 1
- Designed for:
- Protection of PV installations
- Product subgroup:
- PV
- Product group:
- Special purpose fuses
- L/R (ms):
- 5
- Type:
- NH
- Size:
- 1XL
- Rated current (A):
- 125
- Rated DC voltage (V):
- 1100
- Characteristics:
- gR
- Breaking capacity DC (kA):
- 10
- Application:
- Fuse-link for DC application
- Indicator:
- Top fuse status indicator
- Power dissipation (0,7x In) (W):
- 9,6
- Power dissipation (W):
- 23
- Prearcing joule integral (A2s):
- 11.000
- Operating joule integral (A2s):
- 15.000
- Standards:
- IEC 60269-4

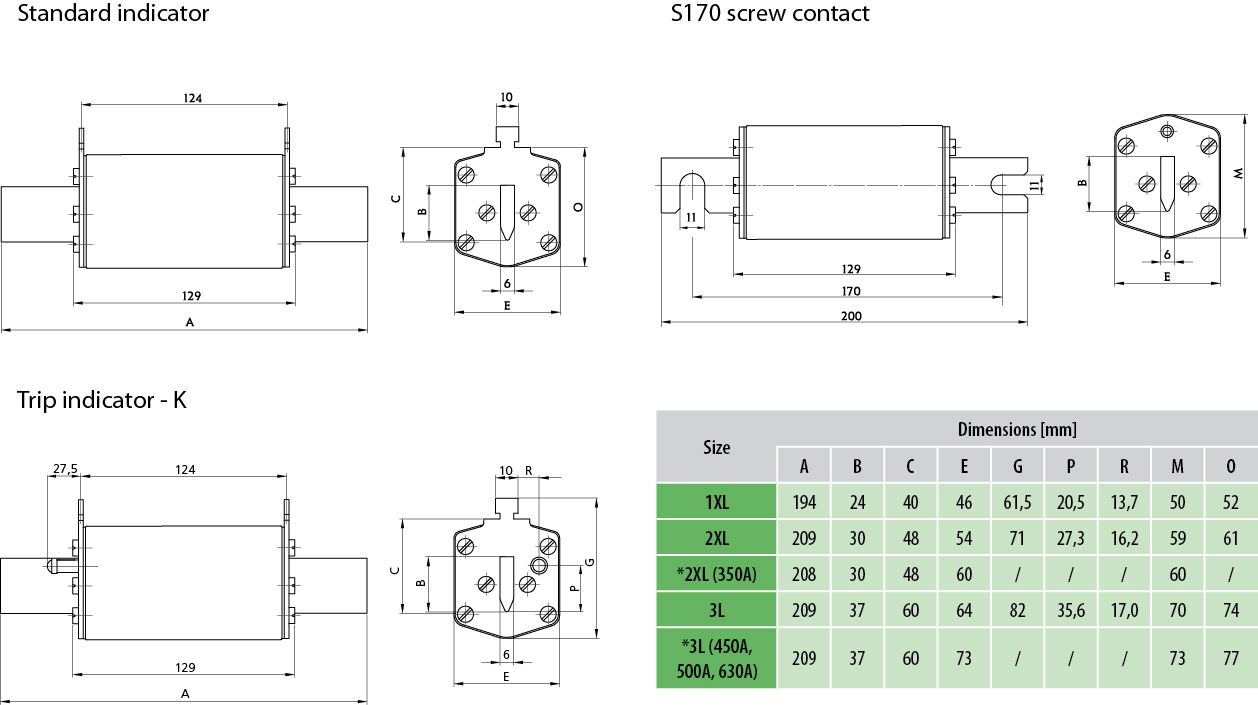

Documents
Logistic Data
Product
- Customs tariff
- 85351000
- logis_net_width
- 46 mm
- logis_net_height
- 198 mm
- logis_net_depth
- 63 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895600947
- Basic packaging weight
- 0.785 kg
Transport packaging
- Transport packaging quantity
- 16
- EAN code for a transport packaging
- 3838895600954
- Transport packaging weight
- 12.56 kg
- Pallet quantity
- 832
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- Other
- Rated current
- 125
- Rated voltage
- 1100
- Voltage type
- DC
- Rated switching capacity
- 10
- Utilization category
- gR (general purpose semiconductor protection)
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No

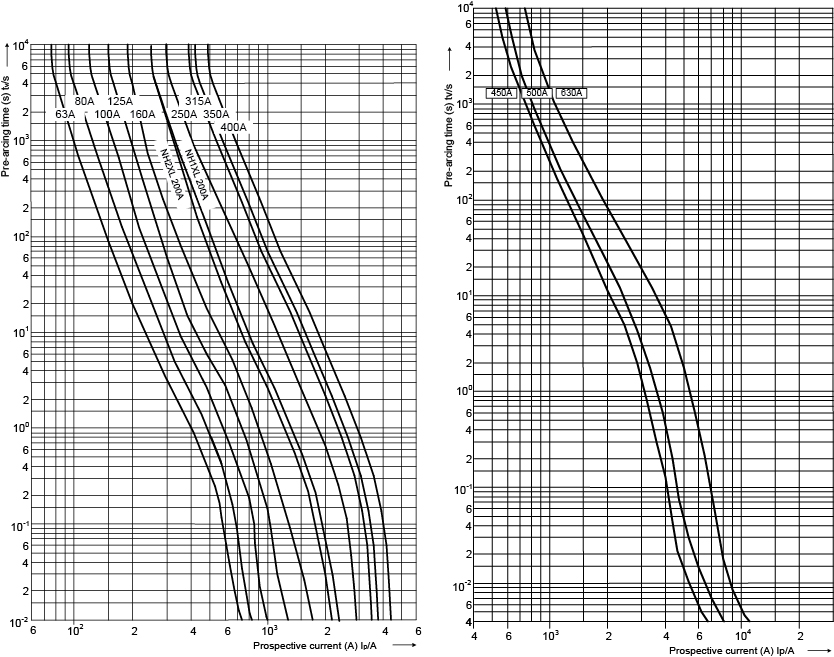

Characteristic
