Fuse link NH0 gR 160A/1000V DC 004110528
Specifications
- ETI Code:
- 004110528
- Description:
- NH0 gR 160A/1000V DC
- Class name:
- Fuse link
- efuse:
- 1
- Designed for:
- Protection of PV installations
- Product subgroup:
- PV
- Product group:
- Special purpose fuses
- L/R (ms):
- 2
- Type:
- NH
- Size:
- NH0
- Rated current (A):
- 160
- Rated DC voltage (V):
- 1000
- Characteristics:
- gR
- Breaking capacity DC (kA):
- 20
- Application:
- Fuse-link for DC application
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 32
- Prearcing joule integral (A2s):
- 5.950
- Operating joule integral (A2s):
- 20.750
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895758235
- Net weight of the product
- 290 g
- Customs tariff
- 85361090
- logis_net_width
- 29 mm
- logis_net_height
- 124 mm
- logis_net_depth
- 60 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895600701
- Basic packaging weight
- 1.019 kg
Transport packaging
- Transport packaging quantity
- 45
- EAN code for a transport packaging
- 3838895600718
- Transport packaging weight
- 15.635 kg
- Pallet quantity
- 2340
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH0
- Rated current
- 160
- Rated voltage
- 1000
- Voltage type
- DC
- Rated switching capacity
- 20
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No

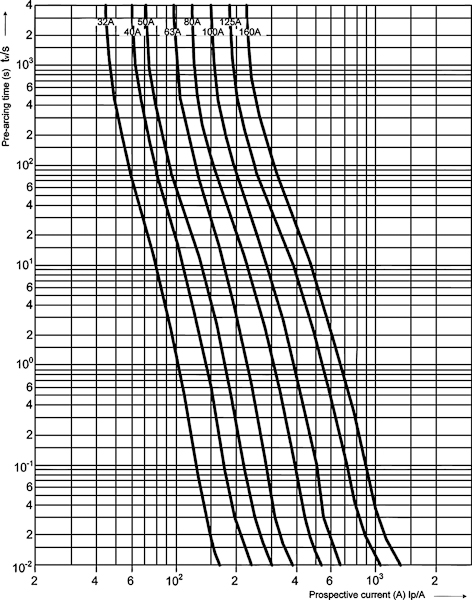

Characteristic
