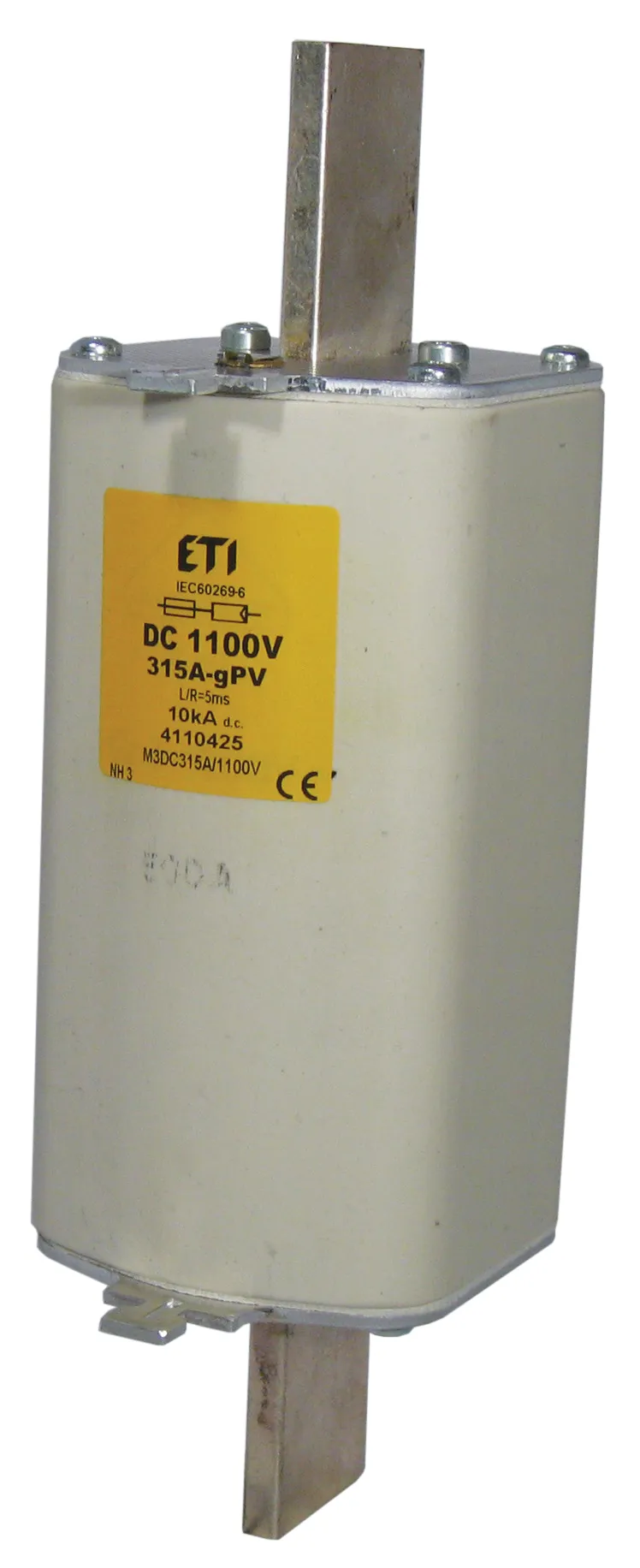

Fuse link NH3L gPV 315A/1100V DC 004110425
Specifications
- ETI Code:
- 004110425
- Description:
- NH3L gPV 315A/1100V DC
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- 3L
- Rated current (A):
- 315
- Rated DC voltage (V):
- 1100
- Characteristics:
- gPV
- L/R (ms):
- 5
- Breaking capacity DC (kA):
- 10
- Application:
- Fuse-link for DC application
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 54
- Power dissipation (0,7x In) (W):
- 25,2
- Operating joule integral (A2s):
- 221.900
- Prearcing joule integral (A2s):
- 166.800
- Standards:
- IEC 60269-6
Documents
Logistic Data
Product
- Net weight of the product
- 1500 g
- Customs tariff
- 85351000
- logis_net_width
- 65 mm
- logis_net_height
- 209 mm
- logis_net_depth
- 84 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895503873
- Basic packaging weight
- 1.56 kg
Transport packaging
- Transport packaging quantity
- 9
- EAN code for a transport packaging
- 3838895608783
- Transport packaging weight
- 14.39 kg
- Pallet quantity
- 468
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Rated voltage DC
- 1100
- Application
- Fuse-link for DC application
- Construction size
- Other
- Rated current
- 315
- Rated voltage
- 1100
- Voltage type
- DC
- Rated switching capacity
- 10
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
