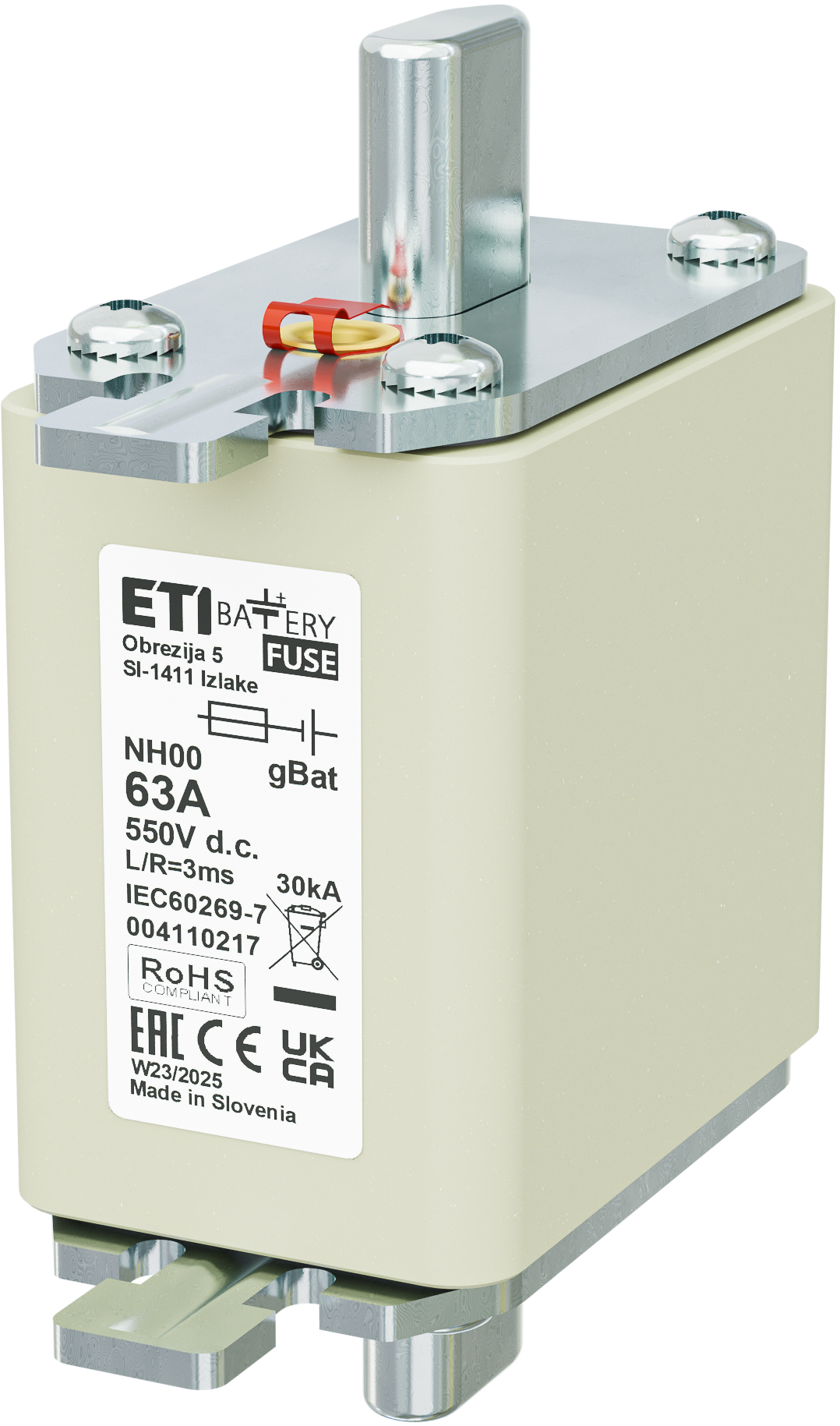

Fuse link NH00 gBat 63A/550V DC 004110217
Specifications
- ETI Code:
- 004110217
- Description:
- NH00 gBat 63A/550V DC
- Class name:
- Fuse link
- efuse:
- 1
- Rated current (A):
- 63
- Type:
- NH
- Size:
- NH00
- Characteristics:
- gBat
- Rated DC voltage (V):
- 550
- Indicator:
- Top fuse status indicator
- Breaking capacity DC (kA):
- 30
- Operating joule integral (A2s):
- 9.200
- L/R (ms):
- 3
- Prearcing joule integral (A2s):
- 3.000
- Application:
- Battery protection
- Power dissipation (W):
- 11,8
- Power dissipation (0,7x In) (W):
- 4,9
- Standards:
- IEC 60269-7
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895735748
- Net weight of the product
- 200 g
- Customs tariff
- 85361050
- logis_net_width
- 30 mm
- logis_net_height
- 80 mm
- logis_net_depth
- 59 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895735755
- Basic packaging weight
- 0.593 kg
Transport packaging
- Transport packaging quantity
- 90
- EAN code for a transport packaging
- 3838895735762
- Transport packaging weight
- 18.037 kg
- Pallet quantity
- 4680
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Application
- Battery protection
- Rated voltage DC
- 550
- Construction size
- NH00
- Rated current
- 63
- Rated voltage
- 550
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
