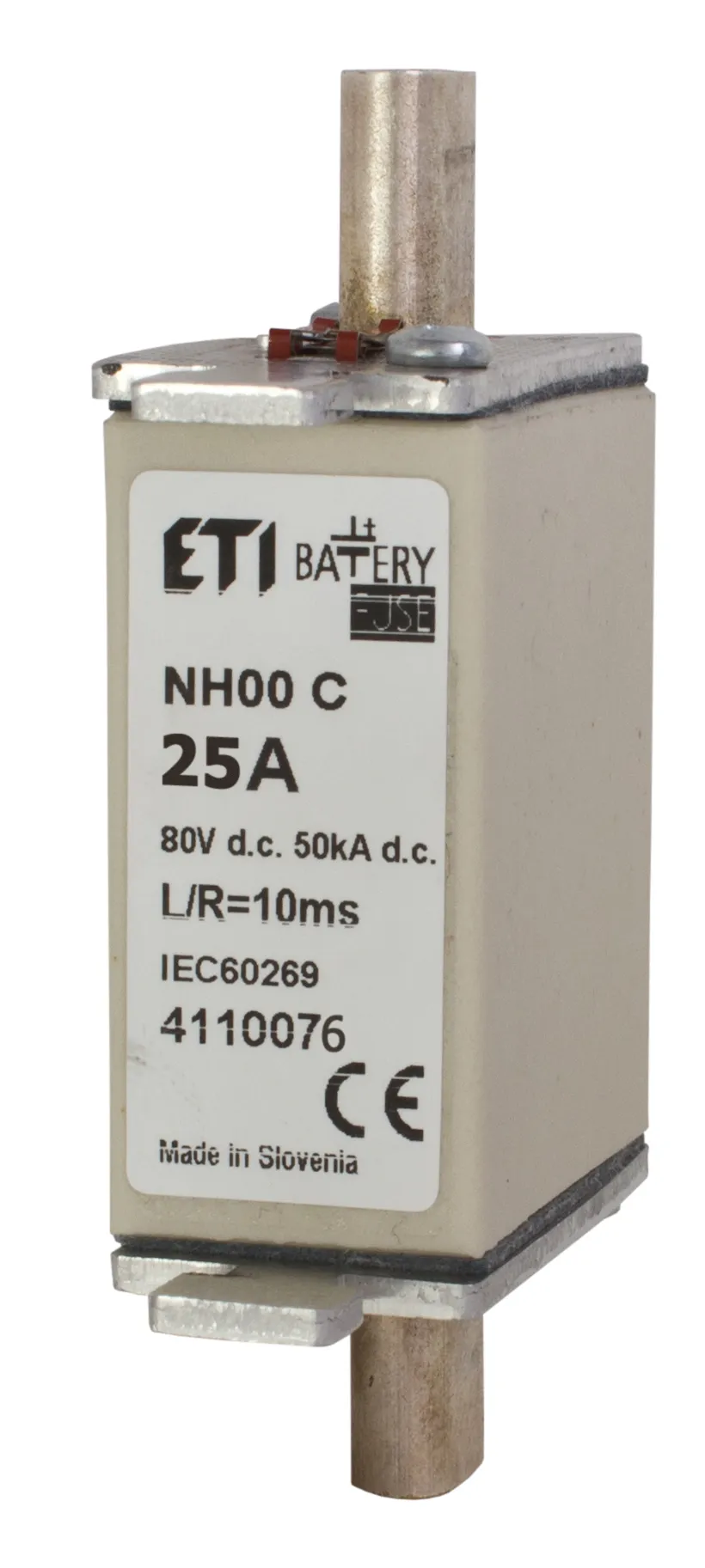

Fuse link NH000 gBat 25A/80V DC 004110076
Specifications
- ETI Code:
- 004110076
- Description:
- NH000 gBat 25A/80V DC
- Class name:
- Fuse link
- efuse:
- 1
- Rated current (A):
- 25
- Type:
- NH
- Size:
- NH000
- Characteristics:
- gBat
- Rated DC voltage (V):
- 80
- Indicator:
- Top fuse status indicator
- Breaking capacity DC (kA):
- 50
- Operating joule integral (A2s):
- 817
- L/R (ms):
- 3
- Prearcing joule integral (A2s):
- 710
- Application:
- Battery protection
- Power dissipation (W):
- 5,8
- Power dissipation (0,7x In) (W):
- 2,6
- Standards:
- IEC 60269
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895758389
- Net weight of the product
- 120 g
- Customs tariff
- 85361050
- logis_net_width
- 21 mm
- logis_net_height
- 79 mm
- logis_net_depth
- 52 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895725053
- Basic packaging weight
- 0.36 kg
Transport packaging
- Transport packaging quantity
- 120
- EAN code for a transport packaging
- 3838895725060
- Transport packaging weight
- 16.3 kg
- Pallet quantity
- 6240
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Application
- Battery protection
- Rated voltage DC
- 80
- Construction size
- NH000
- Rated current
- 25
- Rated voltage
- 80
- Voltage type
- DC
- Rated switching capacity
- 50
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
Characteristic
