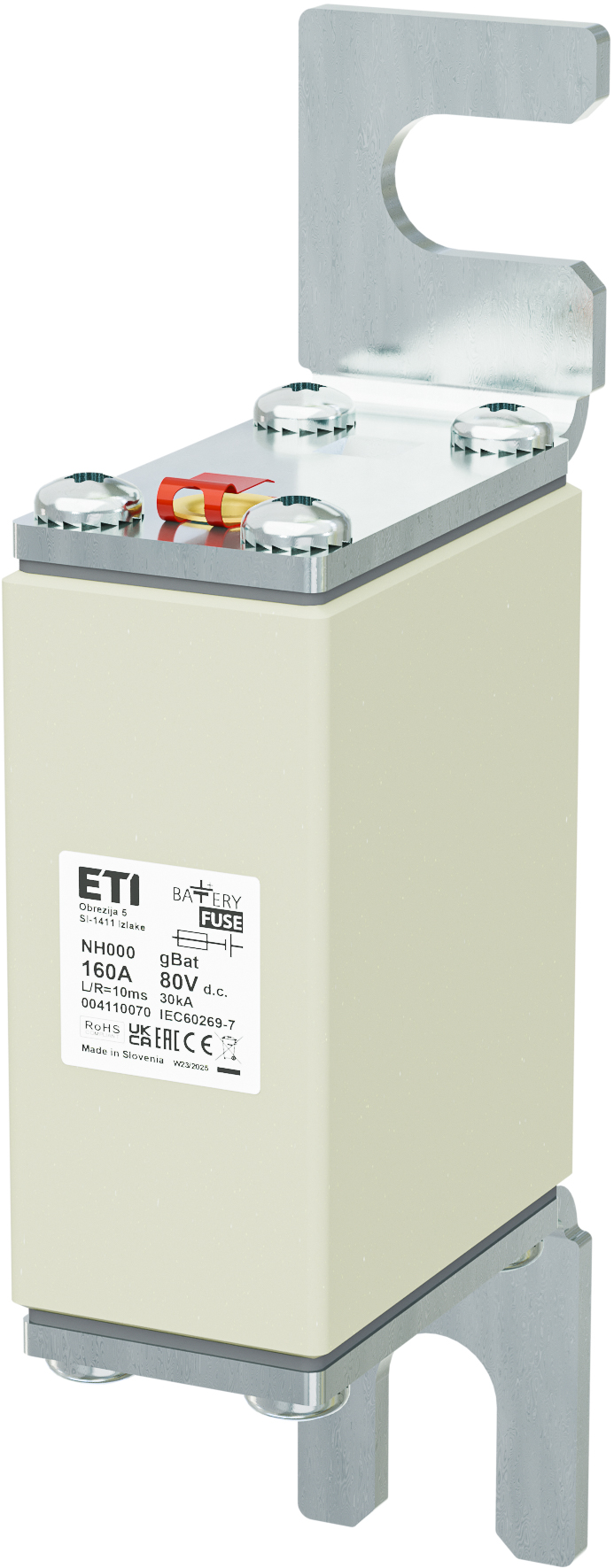

Fuse link NHS000L gBat 160A/80V DC 004110070

Specifications

ETI Code:
004110070
Description:
NHS000L gBat 160A/80V DC
Class name:
Fuse link
efuse:
1
Rated current (A):
160
Type:
NH-S
Size:
000L
Characteristics:
gBat
Rated DC voltage (V):
80
Indicator:
Top fuse status indicator
Breaking capacity DC (kA):
30
Operating joule integral (A2s):
30.000
L/R (ms):
10
Prearcing joule integral (A2s):
27.000
Application:
Battery protection
Power dissipation (W):
15,5
Standards:
IEC 60269

Documents

Product

EAN code for a single product
3838400064103
Net weight of the product
120  g
Customs tariff
85361090
logis_net_width
55  mm
logis_net_height
94  mm
logis_net_depth
24  mm

Basic packaging

Basic packaging quantity
3
EAN code for a basic packaging
3838895744535
Basic packaging weight
0.39  kg

Transport packaging

Transport packaging quantity
120
EAN code for a transport packaging
3838895744542
Transport packaging weight
15.89  kg
Pallet quantity
6240
Classification
EC000055
Class name
Low Voltage HRC fuse
Rated voltage DC
80
Application
Battery protection
Construction size
Other
Rated current
160A
Rated voltage
80V
Voltage type
DC
Rated switching capacity
30kA
Utilization category
Other
Type of fuse status indicator
Top fuse status indicator
Insulated metal gripping lugs (IMGL)
No
ETIM Classification – Version 7.0

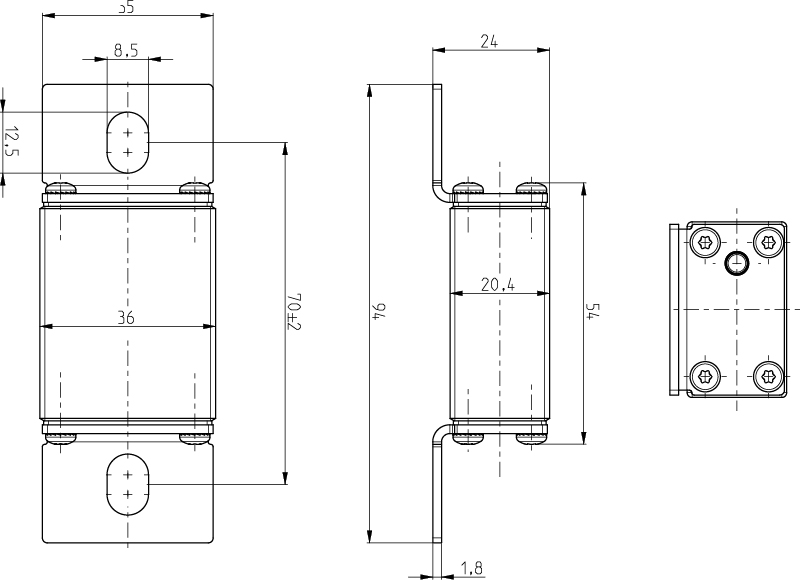

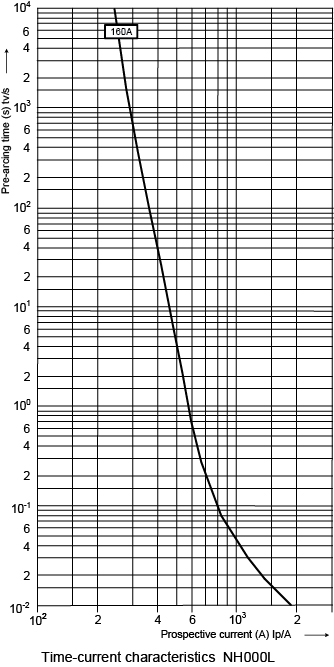

Images & Diagrams
