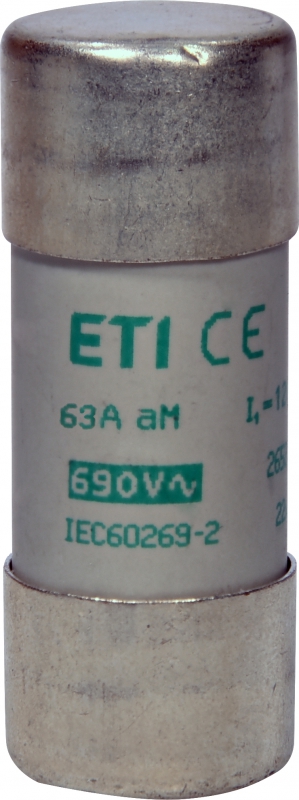

Fuse link CH22x58 aM 63A/690V 002652050
Specifications
- ETI Code:
- 002652050
- Description:
- CH22x58 aM 63A/690V
- Class name:
- Fuse link
- Type:
- CH
- Size:
- 22x58
- Rated current (A):
- 63
- Rated AC voltage (V):
- 690
- Characteristics:
- aM
- Breaking capacity AC (kA):
- 120
- Application:
- For relays, contactors and motors protection in case of short-circuit
- Power dissipation (W):
- 4,8
- Standards:
- IEC 60269-1, IEC 60269-2
Documents
Logistic Data
Product
- Net weight of the product
- 0.054 kg
- Customs tariff
- 85361050
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838400096357
- Basic packaging weight
- 0.559 kg
Transport packaging
- Transport packaging quantity
- 250
- EAN code for a transport packaging
- 3838400096364
- Transport packaging weight
- 14.415 kg
- Pallet quantity
- 8000
ETIM Clasification
- Classification
- EC002704
- Class name
- Cylindrical fuse
- Application
- For relays, contactors and motors protection in case of short-circuit
- Rated current
- 63
- Construction size
- CH22
- Max. rated operation voltage Ue AC
- 690
- Size
- 22x58 mm
- Rated voltage
- 690V
- Voltage type
- AC
- Utilization category
- AM
- Rated operating frequency
- 50Hz
- Nominal current
- 63A
- With striker
- No
- Breaking capacity
- 120kA

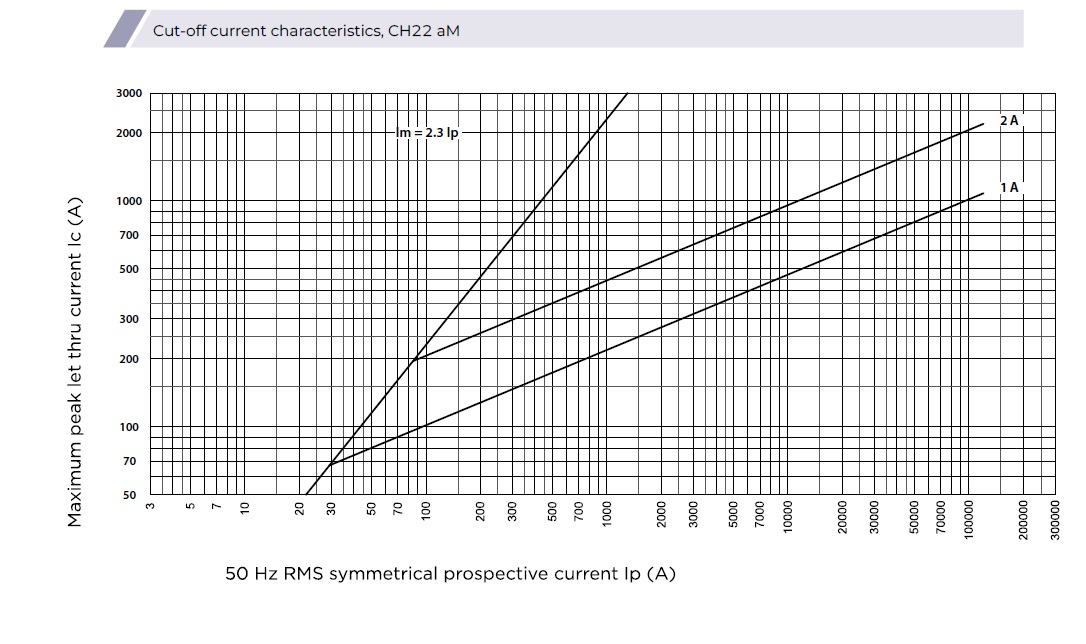

Images & Diagrams
