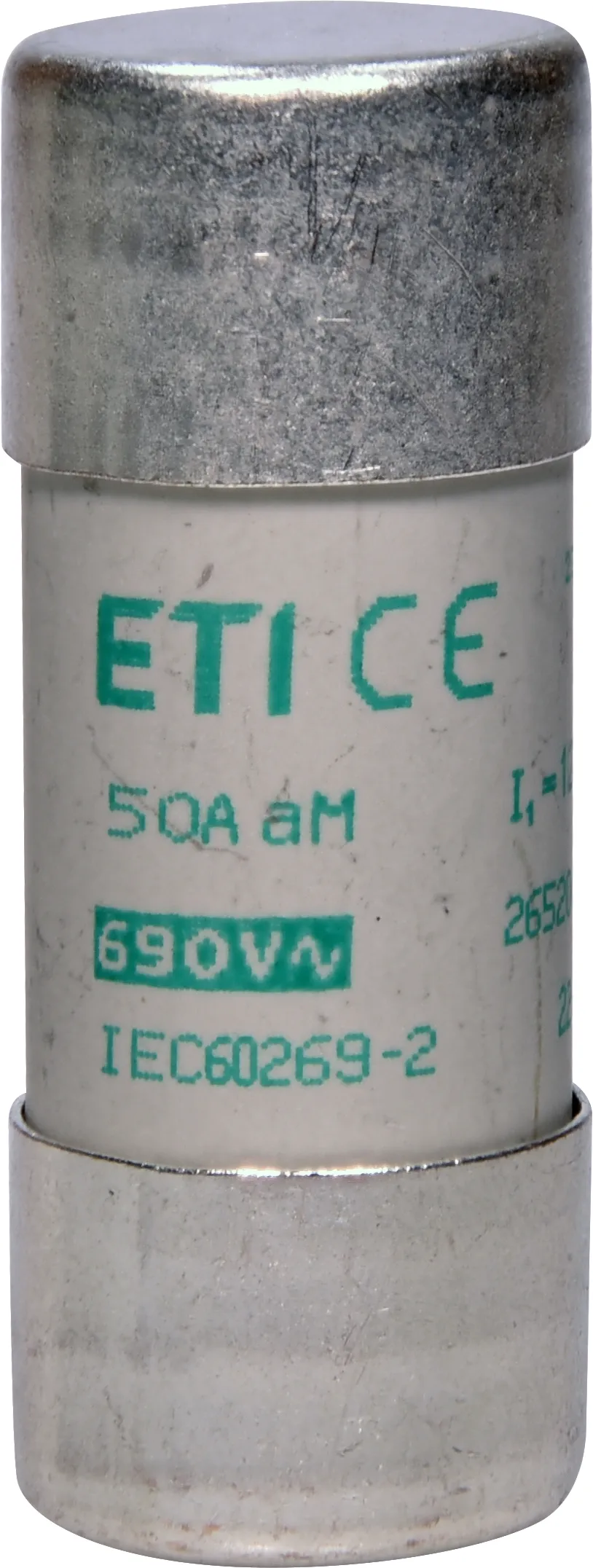

Fuse link CH22x58 aM 50A/690V 002652049
Specifications
- ETI Code:
- 002652049
- Description:
- CH22x58 aM 50A/690V
- Class name:
- Fuse link
- Type:
- CH
- Size:
- 22x58
- Rated current (A):
- 50
- Rated AC voltage (V):
- 690
- Characteristics:
- aM
- Breaking capacity AC (kA):
- 120
- Application:
- For relays, contactors and motors protection in case of short-circuit
- Power dissipation (W):
- 3,6
- Standards:
- IEC 60269-1, IEC 60269-2
Documents
Logistic Data
Product
- Customs tariff
- 85361050
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838400096463
- Basic packaging weight
- 0.559 kg
Transport packaging
- Transport packaging quantity
- 250
- EAN code for a transport packaging
- 3838400096340
- Transport packaging weight
- 14.415 kg
- Pallet quantity
- 8000
ETIM Clasification
- Classification
- EC000035
- Class name
- Miniature fuse
- Voltage type
- AC
- Rated current
- 50A
- Rated voltage
- 690V
