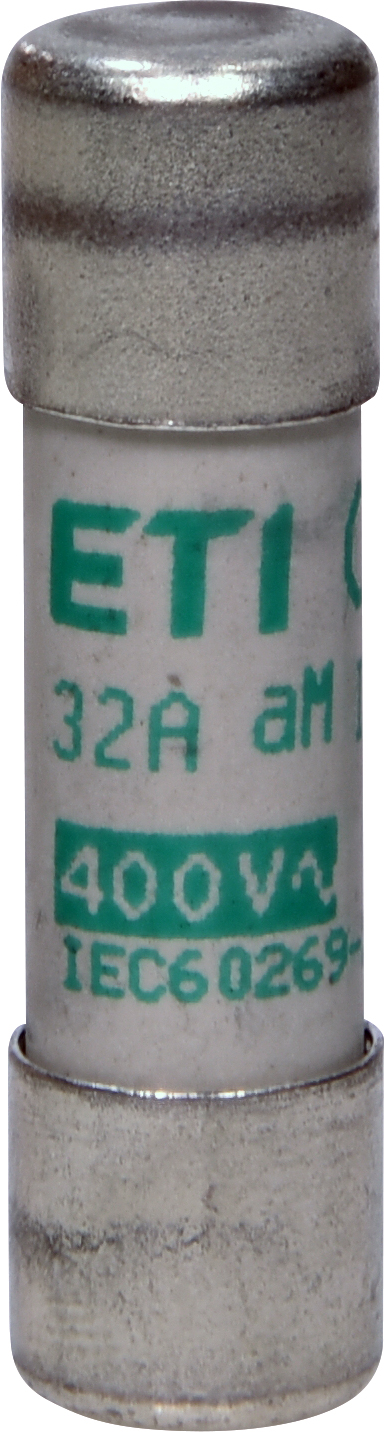

Fuse link CH10x38 aM 32A/400V 002652020
Specifications
- ETI Code:
- 002652020
- Description:
- CH10x38 aM 32A/400V
- Class name:
- Fuse link
- Type:
- CH
- Size:
- 10x38
- Rated current (A):
- 32
- Rated AC voltage (V):
- 400
- Characteristics:
- aM
- Breaking capacity AC (kA):
- 120
- Application:
- For relays, contactors and motors protection in case of short-circuit
- Power dissipation (W):
- 1,8
- Standards:
- IEC 60269-1, IEC 60269-2
Documents
Logistic Data
Product
- Net weight of the product
- 0.008 kg
- Customs tariff
- 85361050
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838400095749
- Basic packaging weight
- 0.085 kg
Transport packaging
- Transport packaging quantity
- 1800
- EAN code for a transport packaging
- 3838400095756
- Transport packaging weight
- 15.78 kg
- Pallet quantity
- 57600
ETIM Clasification
- Classification
- EC002704
- Class name
- Cylindrical fuse
- Application
- For relays, contactors and motors protection in case of short-circuit
- Rated current
- 32
- Max. rated operation voltage Ue AC
- 400
- Construction size
- CH10
- Size
- 10x38 mm
- Rated voltage
- 400V
- Voltage type
- AC
- Utilization category
- AM
- Rated operating frequency
- 50Hz
- Breaking capacity
- 120kA
