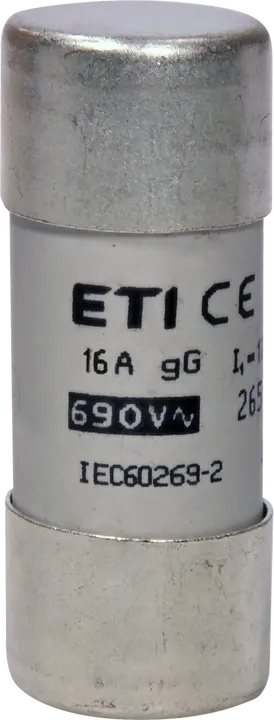

Fuse link CH22x58 gG 16A/690V 002651042

Specifications

ETI Code:
002651042
Description:
CH22x58 gG 16A/690V
Class name:
Fuse link
Type:
CH
Size:
22x58
Rated current (A):
16
Rated AC voltage (V):
690
Characteristics:
gG
Breaking capacity AC (kA):
120
Application:
For cable protection
Power dissipation (W):
2,5
Standards:
IEC 60269-1, IEC 60269-2

Documents

Product

Net weight of the product
0.054  kg
Customs tariff
85361050

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838400095145
Basic packaging weight
0.559  kg

Transport packaging

Transport packaging quantity
250
EAN code for a transport packaging
3838400095152
Transport packaging weight
14.415  kg
Pallet quantity
8000
Classification
EC002704
Class name
Cylindrical fuse
Rated current
16
Construction size
CH22
Max. rated operation voltage Ue AC
690
Application
For cable protection
Size
22x58 mm
Rated voltage
690V
Voltage type
AC
Utilization category
Other
Rated operating frequency
50Hz
Nominal current
16A
With striker
No
Breaking capacity
120kA
ETIM Classification – Version 7.0
