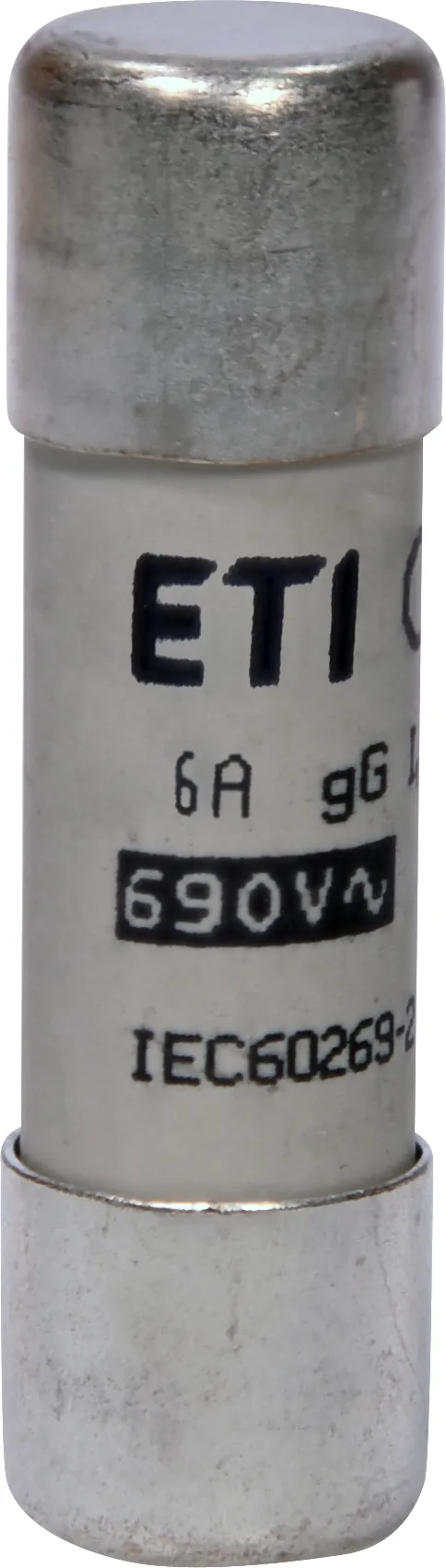

Fuse link CH14x51 gG 6A/690V 002651026

Specifications

ETI Code:
002651026
Description:
CH14x51 gG 6A/690V
Class name:
Fuse link
Type:
CH
Size:
14x51
Rated current (A):
6
Rated AC voltage (V):
690
Characteristics:
gG
Breaking capacity AC (kA):
120
Application:
For cable protection
Power dissipation (W):
1,25
Standards:
IEC 60269-1, IEC 60269-2

Documents

Product

Net weight of the product
0.021  kg
Customs tariff
85361010

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838400094803
Basic packaging weight
0.211  kg

Transport packaging

Transport packaging quantity
700
EAN code for a transport packaging
3838400094810
Transport packaging weight
15.204  kg
Pallet quantity
22400
Classification
EC002704
Class name
Cylindrical fuse
Construction size
CH14
Max. rated operation voltage Ue AC
690
Application
For cable protection
Rated current
6
Size
14x51 mm
Rated voltage
690V
Voltage type
AC
Utilization category
Other
Rated operating frequency
50Hz
Breaking capacity
120kA
ETIM Classification – Version 7.0
