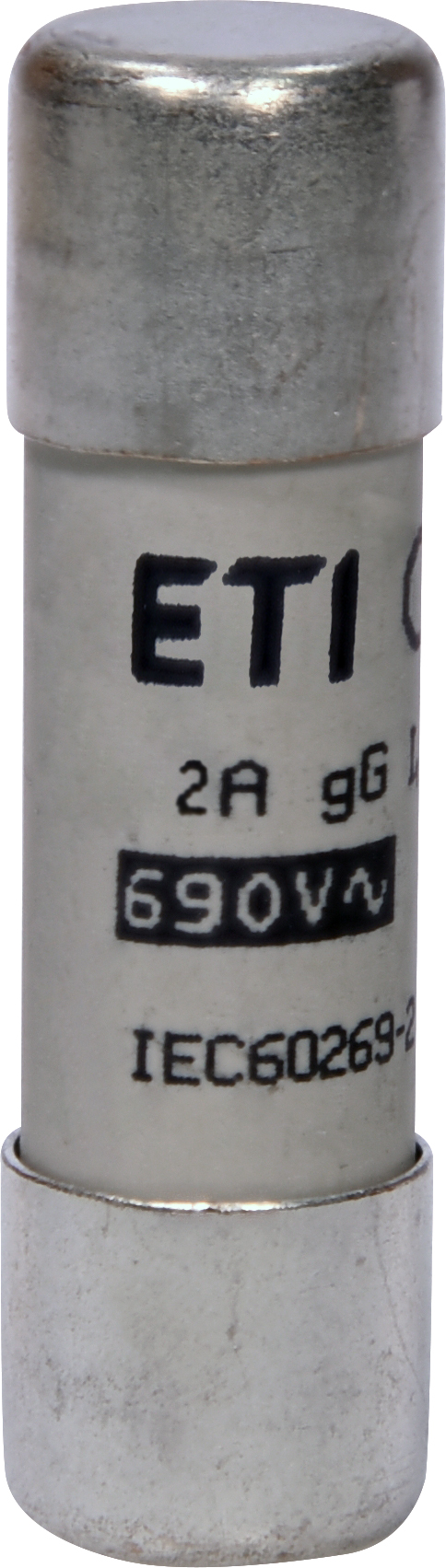

Fuse link CH14x51 gG 2A/690V 002651024
Specifications
- ETI Code:
- 002651024
- Description:
- CH14x51 gG 2A/690V
- Class name:
- Fuse link
- Type:
- CH
- Size:
- 14x51
- Rated current (A):
- 2
- Rated AC voltage (V):
- 690
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 120
- Application:
- For cable protection
- Power dissipation (W):
- 0,75
- Standards:
- IEC 60269-1, IEC 60269-2
Documents
Logistic Data
Product
- Net weight of the product
- 0.019 kg
- Customs tariff
- 85361010
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838400094766
- Basic packaging weight
- 0.199 kg
Transport packaging
- Transport packaging quantity
- 700
- EAN code for a transport packaging
- 3838400094773
- Transport packaging weight
- 14.353 kg
- Pallet quantity
- 22400
ETIM Clasification
- Classification
- EC002704
- Class name
- Cylindrical fuse
- Rated current
- 2
- Construction size
- CH14
- Max. rated operation voltage Ue AC
- 690
- Application
- For cable protection
- Size
- 14x51 mm
- Rated voltage
- 690V
- Voltage type
- AC
- Utilization category
- Other
- Rated operating frequency
- 50Hz
- Breaking capacity
- 120kA

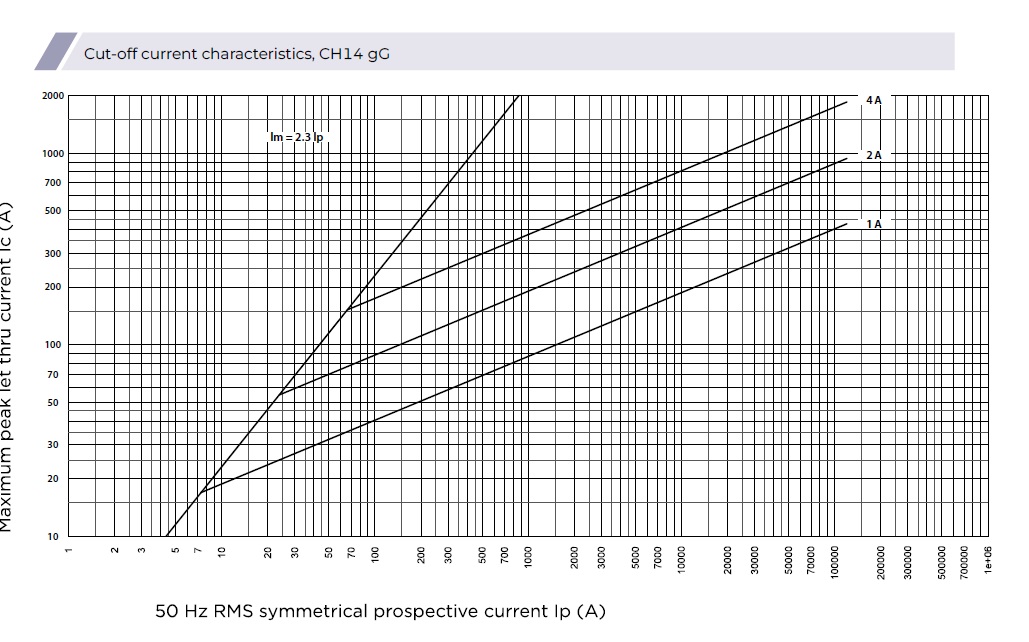

Images & Diagrams
