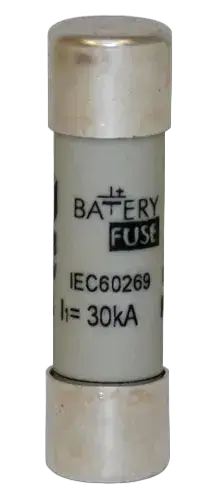

Fuse link CH14x51 gBat 20A/800V DC 002637407
Specifications
- ETI Code:
- 002637407
- Description:
- CH14x51 gBat 20A/800V DC
- Class name:
- Fuse link
- efuse:
- 1
- Rated current (A):
- 20
- Type:
- CH
- Size:
- 14x51
- Characteristics:
- gBAT
- Rated DC voltage (V):
- 800
- Breaking capacity DC (kA):
- 30
- Operating joule integral (A2s):
- 284
- L/R (ms):
- 10
- Prearcing joule integral (A2s):
- 80
- Application:
- Battery protection
- Power dissipation (W):
- 3,2
- Power dissipation (0,7x In) (W):
- 1,5
- Standards:
- IEC 60269
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400057143
- Net weight of the product
- 19.2 g
- Customs tariff
- 85361050
- logis_net_width
- 14 mm
- logis_net_height
- 51 mm
- logis_net_depth
- 14 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895723141
- Basic packaging weight
- 0.199 kg
Transport packaging
- Transport packaging quantity
- 200
- EAN code for a transport packaging
- 3838895723158
- Transport packaging weight
- 4.33 kg
- Pallet quantity
- 24000
ETIM Clasification
- Classification
- EC002704
- Class name
- Cylindrical fuse
- Rated voltage DC
- 800
- Application
- Battery protection
- Construction size
- CH14
- Rated current
- 20
- Size
- 14x51 mm
- Rated voltage
- Other
- Utilization category
- Other
- Nominal current
- 20A
Characteristic
