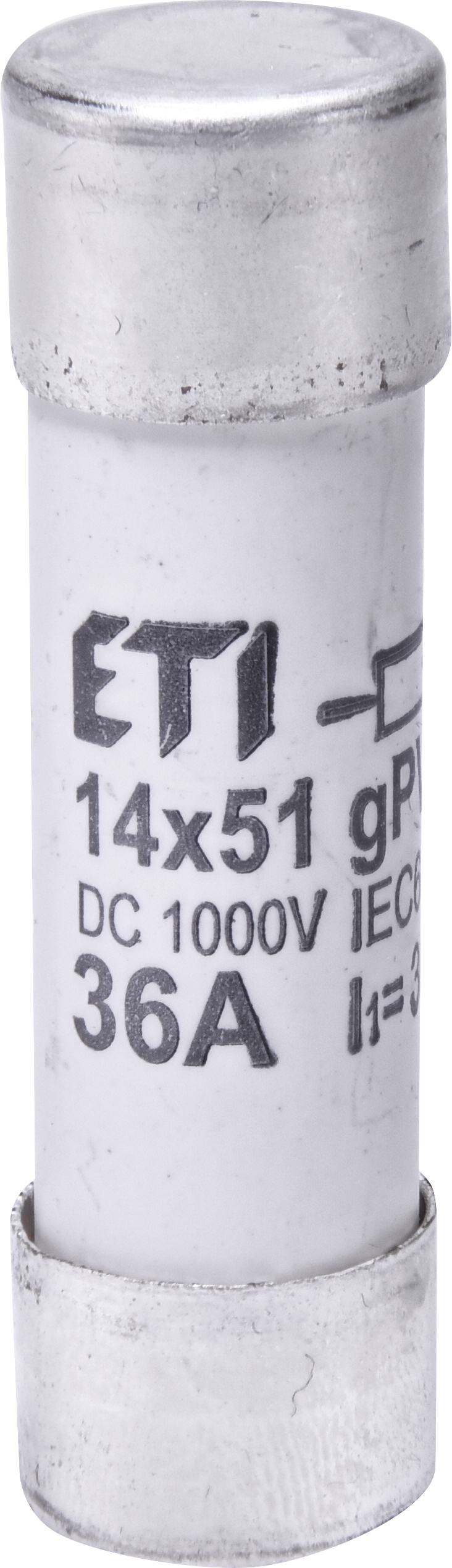

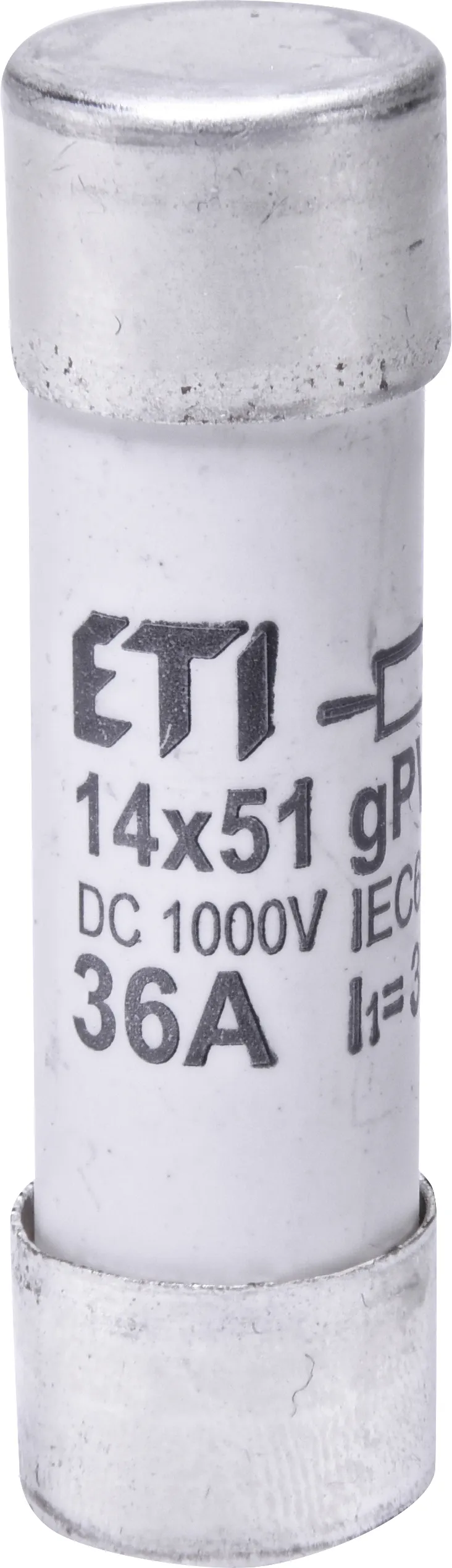

Fuse link CH14x51 gPV 36A/1000V DC 002637115
Specifications
- ETI Code:
- 002637115
- Description:
- CH14x51 gPV 36A/1000V DC
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- CH
- Size:
- 14x51
- Rated current (A):
- 36
- Rated DC voltage (V):
- 1000
- Characteristics:
- gPV
- L/R (ms):
- 2
- Breaking capacity DC (kA):
- 10
- Application:
- For protection of photovoltaic modules
- Power dissipation (0,7x In) (W):
- 2,3
- Power dissipation (W):
- 5,6
- Operating joule integral (A2s):
- 1.190
- Prearcing joule integral (A2s):
- 450
- Standards:
- IEC 60269-6
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400056757
- Net weight of the product
- 19 g
- Customs tariff
- 85361050
- logis_net_width
- 14 mm
- logis_net_height
- 51 mm
- logis_net_depth
- 14 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895665663
- Basic packaging weight
- 0.199 kg
Transport packaging
- Transport packaging quantity
- 200
- EAN code for a transport packaging
- 3838895665670
- Transport packaging weight
- 4.33 kg
- Pallet quantity
- 34000
ETIM Clasification
- Classification
- EC002704
- Class name
- Cylindrical fuse
- Rated current
- 36
- Rated voltage DC
- 1000
- Application
- For protection of photovoltaic modules
- Construction size
- CH14
- Size
- 14x51 mm
- Rated voltage
- Other
- Utilization category
- Other
- Nominal current
- 36A
